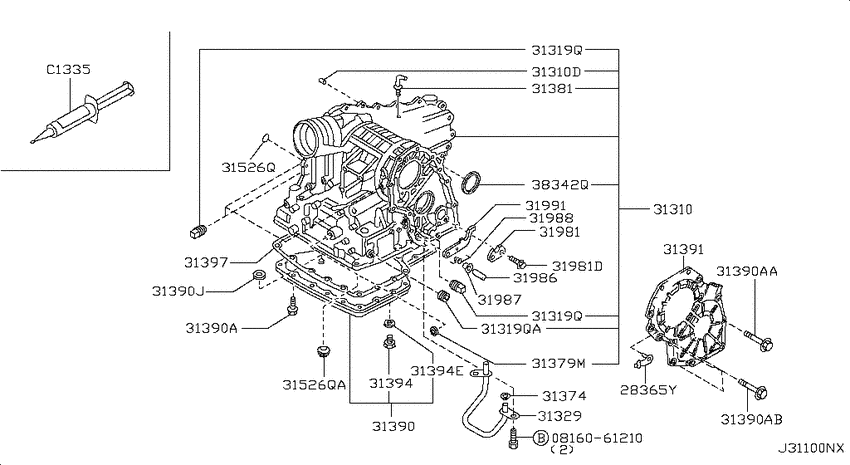

Torque converter,housing & case (2005-07-01 ~ 2006-05-01; TRANSMISSION CASE*; 4AT) Diagram Nissan QUEST
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 4AT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
28365Y
|
28365Y
28365-96E00 TERMINAL-EARTH2004-08-01 ~ 2006-05-01; 4AT; , |
28365-96E00 |
US $3.46 |
||
|
31310
|
31310
31310-89X00
Case Assy-Automatic Transmission
2004-08-01 ~ 2006-05-01; 4AT; , |
31310-89X00 |
— | ||
|
31310
|
31310
32105-C6900 Pin2004-08-01 ~ 2006-05-01; 4AT; , |
32105-C6900 |
US $4.18 |
||
|
31310D
|
31310D
32105-C6900 Pin2004-08-01 ~ 2006-05-01; 4AT; , |
32105-C6900 |
US $4.18 |
||
|
31319Q
|
31319Q
31305-31X05 Plug-Thread2004-08-01 ~ 2006-05-01; 4AT; , |
31305-31X05 |
US $1.73 |
||
|
31319Q
|
31319Q
33312-33G00 Plug-Thread2005-07-01 ~ 2006-05-01; 4AT; , |
33312-33G00 |
US $2.45 |
||
|
31319Q
|
31319Q
31305-31X05 Plug-Thread2004-08-01 ~ 2006-05-01; 4AT; , |
31305-31X05 |
US $1.73 |
||
|
31319Q
|
31319Q
33312-33G00 Plug-Thread2005-07-01 ~ 2006-05-01; 4AT; , |
33312-33G00 |
US $2.45 |
||
|
31319QA
|
31319QA
33312-33G00 Plug-Thread2005-07-01 ~ 2006-05-01; 4AT; , |
33312-33G00 |
US $2.45 |
||
|
31329
|
31329
31329-80X00 Tube-Low & Reverse Brake2004-08-01 ~ 2006-05-01; 4AT; , |
31329-80X00 |
US $5.33 |
||
|
31374
|
31374
31374-80X01 Sleeve-Oil Distributor2004-08-01 ~ 2006-05-01; 4AT; , |
31374-80X01 |
US $4.18 |
||
|
31379M
|
31379M
3137531X01 Seal-Oil2004-08-01 ~ 2006-05-01; 4AT; , |
3137531X01 |
from US $2.36 |
||
|
31381
|
31381
38352G5100 Breather-Air2004-08-01 ~ 2006-05-01; 4AT; , |
38352G5100 |
US $4.18 |
||
|
31390
|
31390
3139088X00 Pan Assy-Oil2004-08-01 ~ 2006-05-01; 4AT; , |
3139088X00 |
US $50.83 |
||
|
31390
|
31390
3137732X02 Bolt2004-08-01 ~ 2006-05-01; 4AT; , |
3137732X02 |
US $1.73 |
||
|
31390
|
31390
31377-88X02
Bolt
2004-08-01 ~ 2006-05-01; 4AT; , |
31377-88X02 |
— | ||
|
31390
|
31390
31377-88X03
Bolt
2004-08-01 ~ 2006-05-01; 4AT; , |
31377-88X03 |
— | ||
|
31390
|
31390
313793AX0A Magnet2005-07-01 ~ 2006-05-01; 4AT; , |
313793AX0A |
from US $2.94 |
||
|
31390
|
31390
3137941X00 Magnet2004-08-01 ~ 2005-07-01; 4AT; , |
3137941X00 |
US $4.18 |
||
|
31390A
|
31390A
3137732X02 Bolt2004-08-01 ~ 2006-05-01; 4AT; , |
3137732X02 |
US $1.73 |
||
|
31390A
|
31390A
31377-88X02
Bolt
2004-08-01 ~ 2006-05-01; 4AT; , |
31377-88X02 |
— | ||
|
31390A
|
31390A
31377-88X03
Bolt
2004-08-01 ~ 2006-05-01; 4AT; , |
31377-88X03 |
— | ||
|
31390AA
|
31390AA
31377-88X02
Bolt
2004-08-01 ~ 2006-05-01; 4AT; , |
31377-88X02 |
— | ||
|
31390AB
|
31390AB
31377-88X03
Bolt
2004-08-01 ~ 2006-05-01; 4AT; , |
31377-88X03 |
— | ||
|
31390J
|
31390J
313793AX0A Magnet2005-07-01 ~ 2006-05-01; 4AT; , |
313793AX0A |
from US $2.94 |
||
|
31390J
|
31390J
3137941X00 Magnet2004-08-01 ~ 2005-07-01; 4AT; , |
3137941X00 |
US $4.18 |
||
|
31391
|
31391
31395-88X01
Cover-Side, Transmission Case
2004-08-01 ~ 2006-05-01; 4AT; , |
31395-88X01 |
— | ||
|
31394
|
31394
3137731X06 Plug-Drain2004-08-01 ~ 2006-05-01; 4AT; , |
3137731X06 |
from US $4.13 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug2004-08-01 ~ 2006-05-01; 4AT; , |
1102601M02 |
from US $0.81 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug2004-08-01 ~ 2006-05-01; 4AT; , |
1102601M02 |
from US $0.81 |
||
|
31397
|
31397
3139780X01 Gasket-Oil Pan2004-08-01 ~ 2006-05-01; 4AT; , |
3139780X01 |
from US $22.91 |
||
|
31397
|
31397
31397-89X27
Gasket & Seal Kit-Auto Transmission
2004-08-01 ~ 2006-05-01; 4AT; , |
31397-89X27 |
— | ||
| replacement | |||||
|
31397
|
31397
31397-8AX27
Gasket & seal kit-auto transmission
2004-08-01 ~ 2006-05-01; 4AT; , |
31397-8AX27 |
— | ||
|
31526Q
|
31526Q
3152631X07 Seal-O Ring2003-05-01 ~ 2004-08-01; 4AT; , |
3152631X07 |
US $2.45 |
||
|
31526Q
|
31526Q
3152831X06 Seal-O Ring2004-08-01 ~ 2006-05-01; 4AT; , |
3152831X06 |
US $2.36 |
||
|
31526QA
|
31526QA
3152831X06 Seal-O Ring2004-08-01 ~ 2006-05-01; 4AT; , |
3152831X06 |
US $2.36 |
||
|
31981
|
31981
31981-80X00 Support-Parking Actuator2004-08-01 ~ 2006-05-01; 4AT; , |
31981-80X00 |
US $37.58 |
||
|
31981
|
31981
31377-80X05 Bolt2004-08-01 ~ 2006-05-01; 4AT; , |
31377-80X05 |
US $2.45 |
||
|
31981D
|
31981D
31377-80X05 Bolt2004-08-01 ~ 2006-05-01; 4AT; , |
31377-80X05 |
US $2.45 |
||
|
31986
|
31986
31986-8E001 SHAFT-PARKING PAWL2004-08-01 ~ 2006-05-01; 4AT; , |
31986-8E001 |
US $4.18 |
||
|
31987
|
31987
31437-80X02 Spacer-Parking Pawl2004-08-01 ~ 2006-05-01; 4AT; , |
31437-80X02 |
US $2.45 |
||
|
31988
|
31988
31988-80X01 Spring-Return Pawl2004-08-01 ~ 2006-05-01; 4AT; , |
31988-80X01 |
US $8.06 |
||
|
31991
|
31991
31991-89X00
Pawl-Parking
2004-08-01 ~ 2006-05-01; 4AT; , |
31991-89X00 |
— | ||
|
38342Q
|
38342Q
3834281X00 Seal-Oil, Differential Transmission Case2004-08-01 ~ 2006-05-01; 4AT; , |
3834281X00 |
from US $6.97 |
||
|
C1335
|
C1335
C133531X25 Sealant-Fluid2004-08-01 ~ 2006-05-01; 4AT; , |
C133531X25 |
US $30.64 |
||
