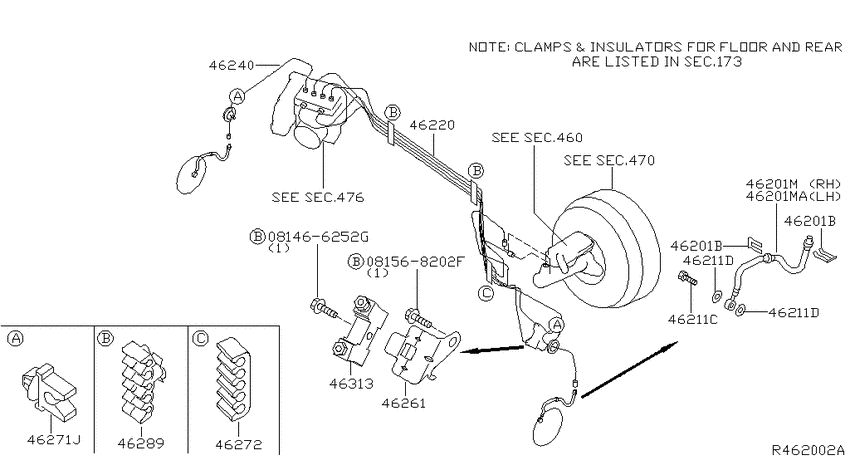

Brake piping & control (2006-05-01 ~ 2007-08-01; PIPING; W) Diagram Nissan QUEST
- Year
- 2006 - 2007
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5AT
- grade
- BASE
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081568202F
|
081568202F
081568202F BOLTHEXPP WW |
081568202F |
from US $0.85 |
||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
460
|
Brake master cylinder
460
|
||||
|
46201B
|
46201B
46206M0200 Spring-Lock2006-05-01 ~ 2007-08-01; W; , |
46206M0200 |
from US $0.74 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock2006-05-01 ~ 2007-08-01; W; , |
46206M0200 |
from US $0.74 |
||
|
46201M
|
46201M
46210-CK000
Hose Assy-Brake, Front
2006-05-01 ~ 2007-08-01; W; , |
46210-CK000 |
— | ||
|
46201M
|
46201M
46210-CK001
Hose Assy-Brake, Front
2006-05-01 ~ 2007-08-01; W; , |
46210-CK001 |
— | ||
|
46201MA
|
46201MA
46210-CK001
Hose Assy-Brake, Front
2006-05-01 ~ 2007-08-01; W; , |
46210-CK001 |
— | ||
|
46211C
|
46211C
46356-0E000
BOLT-UNION,FRONT BRAKE HOSE
2006-05-01 ~ 2006-11-01; W; , |
46356-0E000 |
— | ||
| replacement | |||||
|
46211C
|
46211C
463560E00A Bolt-Union, Front Brake Hose2006-05-01 ~ 2006-11-01; W; , |
463560E00A |
from US $1.52 |
||
|
46211C
|
46211C
463560E00A Bolt-Union, Front Brake Hose2006-11-01 ~ 2007-08-01; W; , |
463560E00A |
from US $1.52 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose2006-05-01 ~ 2007-08-01; W; , |
46237A4600 |
from US $0.35 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose2006-05-01 ~ 2007-08-01; W; , |
46237A4600 |
from US $0.35 |
||
|
46220
|
46220
46220-ZM70A
Tube Compl-Brake
2006-05-01 ~ 2007-08-01; W.(BASE+S+SL); , |
46220-ZM70A |
— | ||
|
46240
|
46240
46240-ZM70A
Tube Assy-Brake, Front Rh
2006-05-01 ~ 2007-08-01; W.(BASE+S+SL); , |
46240-ZM70A |
— | ||
|
46261
|
46261
46261-5M000
Bracket-Brake Tube
2006-05-01 ~ 2007-08-01; W; , |
46261-5M000 |
— | ||
|
46271J
|
46271J
462710L700 Clamp-Brake Tube2006-05-01 ~ 2007-08-01; W; , |
462710L700 |
US $2.74 |
||
|
46272
|
46272
46272-AH500 Insulator2006-05-01 ~ 2007-08-01; W; , |
46272-AH500 |
US $4.18 |
||
|
46272
|
46272
46272-8J010
Insulator
2006-05-01 ~ 2007-08-01; VQ35DE; , |
46272-8J010 |
— | ||
|
46272
|
46272
46272-5M001
Insulator
2006-05-01 ~ 2007-08-01; VQ35DE; , |
46272-5M001 |
— | ||
|
46289
|
46289
46289-CA000 Clamp2006-05-01 ~ 2007-08-01; W; , |
46289-CA000 |
US $2.45 |
||
|
46313
|
46313
46313-40U00 Connector-Brake Tube2006-05-01 ~ 2007-08-01; W; , |
46313-40U00 |
from US $11.66 |
||
|
470
|
Brake servo & servo control
470
|
||||
|
476
|
Anti skid control
476
|
||||
