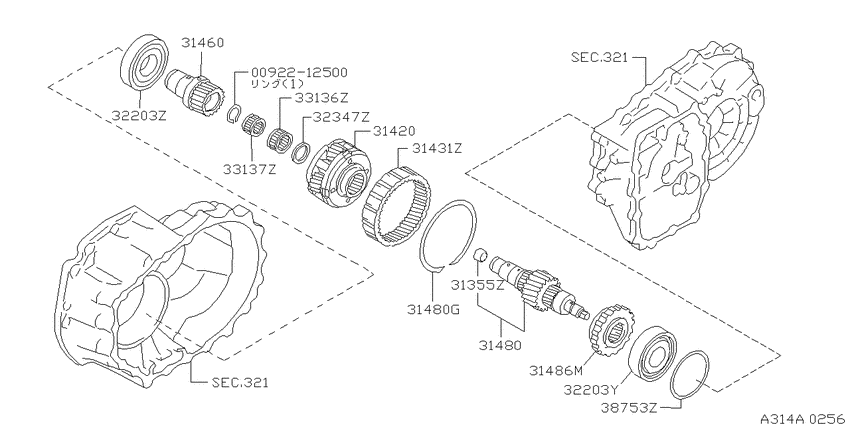

Governor,power train & planetary gear (1998-05-01 ~ ; EV) Diagram Nissan R`NESSA
- Year
- 1998 - 2012
- Sales region
- Japan
- drive
- EV
- grade
- EV
- body
- EV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092212500
|
0092212500
00922-12500 RING-SNAP,B |
00922-12500 |
US $2.45 |
||
|
31355Z
|
31355Z
31355-90P00
Seal-Plane
9805--01 ~ ; EV |
31355-90P00 |
— | ||
|
31420
|
31420
31420-90P00
Carrier Assy-Front Planet
9805--01 ~ ; EV |
31420-90P00 |
— | ||
|
31431Z
|
31431Z
31431-90P00
Gear-Internal
9805--01 ~ 0001--01; EV |
31431-90P00 |
— | ||
|
31431Z
|
31431Z
31431-90P01
Gear-Internal
0001--01 ~ ; EV |
31431-90P01 |
— | ||
|
31460
|
31460
31460-90P00
Gear Assy-Sun
9805--01 ~ ; EV |
31460-90P00 |
— | ||
|
31480
|
31480
31480-90P00
Shaft Assy-Output
9805--01 ~ ; EV |
31480-90P00 |
— | ||
|
31480
|
31480
31506-80X03 Ring-Snap9805--01 ~ ; EV |
31506-80X03 |
US $5.33 |
||
|
31480G
|
31480G
31506-80X03 Ring-Snap9805--01 ~ ; EV |
31506-80X03 |
US $5.33 |
||
|
31486M
|
31486M
31486-90P01
Gear-Parking
9805--01 ~ ; EV |
31486-90P01 |
— | ||
|
32203Y
|
32203Y
32203-90P11
Bearing-Ball
9805--01 ~ ; EV |
32203-90P11 |
— | ||
|
32203Z
|
32203Z
32203-90P01
Bearing-Ball
9805--01 ~ ; EV |
32203-90P01 |
— | ||
|
32347Z
|
32347Z
32347-90P00
Spacer-Bearing
9805--01 ~ ; EV |
32347-90P00 |
— | ||
|
33136Z
|
33136Z
33136-90P00
Bearing-Needle
9805--01 ~ ; EV |
33136-90P00 |
— | ||
|
33137Z
|
33137Z
33137-90P00
Bearing-Needle, Pilot
9805--01 ~ ; EV |
33137-90P00 |
— | ||
|
38753Z
|
38753Z
38753-56E01 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.40 |
38753-56E01 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E02 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.44 |
38753-56E02 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E03 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.48 |
38753-56E03 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E04 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.52 |
38753-56E04 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E05 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.56 |
38753-56E05 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E06 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.60 |
38753-56E06 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E07 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.64 |
38753-56E07 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E08 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.68 |
38753-56E08 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E09 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.72 |
38753-56E09 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E10 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.76 |
38753-56E10 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E11 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.80 |
38753-56E11 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E12 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.84 |
38753-56E12 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E13 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.88 |
38753-56E13 |
US $10.51 |
||
|
38753Z
|
38753Z
38753-56E14 SHIM-ADJUST,SIDE BEARING9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=0.92 |
38753-56E14 |
US $10.51 |
