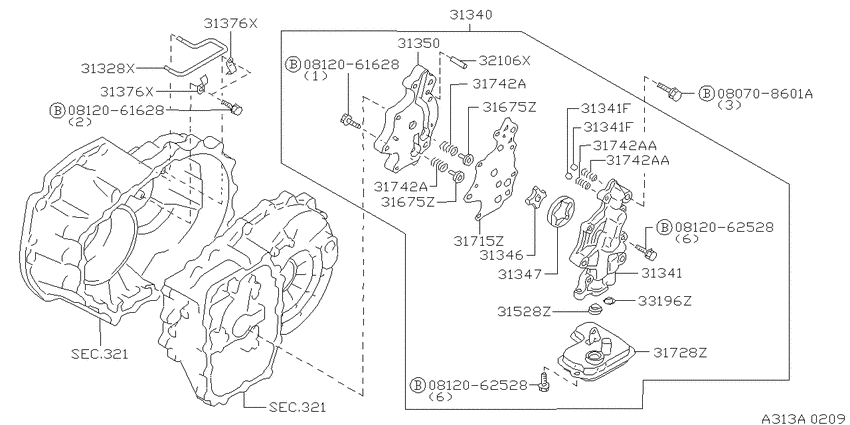

Oil pump (1998-05-01 ~ ; EV) Diagram Nissan R`NESSA
- Year
- 1998 - 2012
- Sales region
- Japan
- drive
- EV
- grade
- EV
- body
- EV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080708601A
|
080708601A
080708601A
Bolt-hexagon
|
080708601A |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
31328X
|
31328X
31328-90P00
Tube-Lubricant
9805--01 ~ ; EV |
31328-90P00 |
— | ||
|
31340
|
31340
31340-90P01
Pump Assy-Oil
9805--01 ~ 9908--01; EV |
31340-90P01 |
— | ||
|
31340
|
31340
31340-90P02
Pump Assy-Oil
9908--01 ~ ; EV |
31340-90P02 |
— | ||
|
31341
|
31341
31341-90P00
Housing Assy-Oil Pump
9805--01 ~ ; EV |
31341-90P00 |
— | ||
|
31341
|
31341
32829-26760 Ball-Check9805--01 ~ ; EV |
32829-26760 |
from US $0.74 |
||
|
31341F
|
31341F
32829-26760 Ball-Check9805--01 ~ ; EV |
32829-26760 |
from US $0.74 |
||
|
31341F
|
31341F
32829-26760 Ball-Check9805--01 ~ ; EV |
32829-26760 |
from US $0.74 |
||
|
31346
|
31346
31346-90P01
Gear-Inner, Oil Pump
9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=6.75-6.76 |
31346-90P01 |
— | ||
|
31346
|
31346
31346-90P02
Gear-Inner, Oil Pump
9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=6.74-6.75 |
31346-90P02 |
— | ||
|
31347
|
31347
31347-90P01
Gear-Outer, Oil Pump
9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=6.75-6.76 |
31347-90P01 |
— | ||
|
31347
|
31347
31347-90P02
Gear-Outer, Oil Pump
9805--01 ~ 9908--01; EV; ｾﾝﾀｸ T=6.74-6.75 |
31347-90P02 |
— | ||
|
31350
|
31350
31350-90P00
Cover Assy-Oil Pump
9805--01 ~ ; EV |
31350-90P00 |
— | ||
|
31376X
|
31376X
31376-31X00 Clip9805--01 ~ ; EV |
31376-31X00 |
US $2.45 |
||
|
31376X
|
31376X
31376-31X00 Clip9805--01 ~ ; EV |
31376-31X00 |
US $2.45 |
||
|
31528Z
|
31528Z
3152831X06 Seal-O Ring9805--01 ~ ; EV |
3152831X06 |
US $2.36 |
||
|
31675Z
|
31675Z
31675-90P00
Piston-Accumulator
9805--01 ~ ; EV |
31675-90P00 |
— | ||
|
31675Z
|
31675Z
31675-90P00
Piston-Accumulator
9805--01 ~ ; EV |
31675-90P00 |
— | ||
|
31715Z
|
31715Z
31715-90P00
Plate-Separate
9805--01 ~ 9904--01; EV |
31715-90P00 |
— | ||
|
31715Z
|
31715Z
31715-90P01
Plate-Separate
9904--01 ~ 9908--01; EV |
31715-90P01 |
— | ||
|
31715Z
|
31715Z
31715-90P02
Plate-Separate
9908--01 ~ ; EV |
31715-90P02 |
— | ||
|
31728Z
|
31728Z
31728-90P00
Strainer Assy-Oil
9805--01 ~ ; EV |
31728-90P00 |
— | ||
|
31742A
|
31742A
31742-0W420 Spring-Valve9805--01 ~ ; EV |
31742-0W420 |
US $0.86 |
||
|
31742A
|
31742A
31762-90P00
Spring-Valve
9805--01 ~ ; EV |
31762-90P00 |
— | ||
|
31742A
|
31742A
31742-0W420 Spring-Valve9805--01 ~ ; EV |
31742-0W420 |
US $0.86 |
||
|
31742A
|
31742A
31762-90P00
Spring-Valve
9805--01 ~ ; EV |
31762-90P00 |
— | ||
|
31742AA
|
31742AA
31762-90P00
Spring-Valve
9805--01 ~ ; EV |
31762-90P00 |
— | ||
|
31742AA
|
31742AA
31762-90P00
Spring-Valve
9805--01 ~ ; EV |
31762-90P00 |
— | ||
|
32106X
|
32106X
32106-90P00
Pin-Dowel
9805--01 ~ ; EV |
32106-90P00 |
— | ||
|
33196Z
|
33196Z
33196-90P00
Seal-O Ring
9805--01 ~ ; EV |
33196-90P00 |
— |
