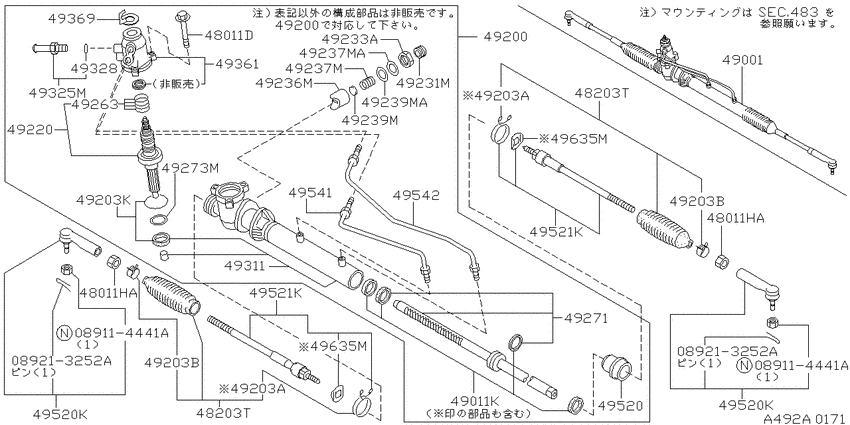

Power steering gear (1998-05-01 ~ ; EV) Diagram Nissan R`NESSA
- Year
- 1998 - 2012
- Sales region
- Japan
- drive
- EV
- grade
- EV
- body
- EV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089114441A
|
089114441A
089114441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089114441A |
— | ||
|
089114441A
|
089114441A
089114441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089114441A |
— | ||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
48011D
|
48011D
01141-00281 BOLT9805--01 ~ ; EV |
01141-00281 |
US $0.86 |
||
|
48011HA
|
48011HA
0121100371 NUT9805--01 ~ ; EV |
0121100371 |
from US $1.13 |
||
|
48011HA
|
48011HA
0121100371 NUT9805--01 ~ ; EV |
0121100371 |
from US $1.13 |
||
|
48203T
|
48203T
48203-0E025
BOOT KIT-POWER STEERING GEAR
9805--01 ~ ; EV |
48203-0E025 |
— | ||
| replacement | |||||
|
48203T
|
48203T
482030E026 BOOT KIT-POWER STEERING GEAR9805--01 ~ ; EV |
482030E026 |
from US $26.18 |
||
|
48203T
|
48203T
48203-0E025
BOOT KIT-POWER STEERING GEAR
9805--01 ~ ; EV |
48203-0E025 |
— | ||
| replacement | |||||
|
48203T
|
48203T
482030E026 BOOT KIT-POWER STEERING GEAR9805--01 ~ ; EV |
482030E026 |
from US $26.18 |
||
|
49001
|
49001
49001-9V100
Gear & Linkage-Power Steering
9805--01 ~ ; EV |
49001-9V100 |
— | ||
|
49011K
|
49011K
49297-9V025
Seal Kit-Rack, Power Steering Gear
9805--01 ~ ; EV |
49297-9V025 |
— | ||
|
49200
|
49200
49200-9V100
Gear Assy-Power Steering
9805--01 ~ 0012--01; EV |
49200-9V100 |
— | ||
|
49200
|
49200
49200-9V101
Gear Assy-Power Steering
0012--01 ~ ; EV |
49200-9V101 |
— | ||
|
49203A
|
49203A
4805510V00 Clamp-Boot9805--01 ~ ; EV |
4805510V00 |
from US $2.78 |
||
|
49203A
|
49203A
4805510V00 Clamp-Boot9805--01 ~ ; EV |
4805510V00 |
from US $2.78 |
||
|
49203B
|
49203B
48054-0P700 Clamp-Boot9805--01 ~ ; EV |
48054-0P700 |
US $1.15 |
||
|
49203B
|
49203B
48054-0P700 Clamp-Boot9805--01 ~ ; EV |
48054-0P700 |
US $1.15 |
||
|
49203K
|
49203K
49365-9V025
Seal Kit-Pinion, Power Steering Gear
9805--01 ~ ; EV |
49365-9V025 |
— | ||
|
49220
|
49220
49220-9V100 Pinion Assy-Power Steering9805--01 ~ ; EV |
49220-9V100 |
US $288.86 |
||
|
49231M
|
49231M
48231-32R00 Screw-Adjust Retainer9805--01 ~ ; EV |
48231-32R00 |
US $5.68 |
||
|
49233A
|
49233A
48233-60A00 Nut9805--01 ~ ; EV |
48233-60A00 |
US $4.42 |
||
|
49236M
|
49236M
48236-40U00 Retainer-Power Steering Gear9805--01 ~ ; EV |
48236-40U00 |
US $5.96 |
||
|
49237M
|
49237M
48237-4E100 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=25.67 |
48237-4E100 |
US $5.42 |
||
|
49237M
|
49237M
48237-4E101 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=22.67 |
48237-4E101 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E102 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=28.67 |
48237-4E102 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E103 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=23.67 |
48237-4E103 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E104 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=24.67 |
48237-4E104 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E105 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=26.67 |
48237-4E105 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E106 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=27.67 |
48237-4E106 |
US $5.18 |
||
|
49237M
|
49237M
48237-53E10 SPRING-RETAINER9805--01 ~ 9908--01; EV; ｾﾝﾀｸ L=21.86 |
48237-53E10 |
US $5.18 |
||
|
49237M
|
49237M
48237-10V10 Spring-Retainer9805--01 ~ ; EV |
48237-10V10 |
US $4.42 |
||
|
49237MA
|
49237MA
48237-10V10 Spring-Retainer9805--01 ~ ; EV |
48237-10V10 |
US $4.42 |
||
|
49239M
|
49239M
48239-F6110 Seat-Spring, Retainer Power Steering Gear9805--01 ~ ; EV |
48239-F6110 |
US $2.64 |
||
|
49239M
|
49239M
4823960A10 Seat-Spring, Retainer Power Steering Gear9805--01 ~ ; EV |
4823960A10 |
US $2.64 |
||
|
49239MA
|
49239MA
4823960A10 Seat-Spring, Retainer Power Steering Gear9805--01 ~ ; EV |
4823960A10 |
US $2.64 |
||
|
49263
|
49263
49263-65F00 Ring-Worm, Flon9805--01 ~ ; EV |
49263-65F00 |
US $5.55 |
||
|
49271
|
49271
49271-9V100 Rack Assy-Power Steering9805--01 ~ ; EV |
49271-9V100 |
US $288.86 |
||
|
49273M
|
49273M
48273-10V00 Shim Adjust-Pinion Bearing9805--01 ~ ; EV |
48273-10V00 |
US $4.85 |
||
|
49311
|
49311
49311-9V100 Housing & Cylinder Assy-Power Steering9805--01 ~ 0012--01; EV |
49311-9V100 |
US $218.88 |
||
|
49311
|
49311
49311-9V101 Housing & Cylinder Assy-Power Steering0012--01 ~ ; EV |
49311-9V101 |
US $218.88 |
||
|
49325M
|
49325M
49325-03E00 PORT ASSY-DRAIN,POWER STEERING9805--01 ~ ; EV |
49325-03E00 |
US $6.94 |
||
|
49328
|
49328
4932803E00 SEAL-O RING9805--01 ~ ; EV |
4932803E00 |
US $2.78 |
||
|
49361
|
49361
49361-9V100
Housing Assy-Rear
9805--01 ~ 0012--01; EV |
49361-9V100 |
— | ||
|
49361
|
49361
49361-9V101
Housing Assy-Rear
0012--01 ~ ; EV |
49361-9V101 |
— | ||
|
49369
|
49369
49369-60U00 Cap-Rear Cover9805--01 ~ ; EV |
49369-60U00 |
from US $12.45 |
||
|
49520
|
49520
4952010V06 Cover Assy-Cylinder End9805--01 ~ ; EV |
4952010V06 |
US $54.86 |
||
|
49520
|
49520
48520-4P025 Socket Kit-Tie Rod, Outer9805--01 ~ ; EV |
48520-4P025 |
US $82.08 |
||
|
49520K
|
49520K
48520-4P025 Socket Kit-Tie Rod, Outer9805--01 ~ ; EV |
48520-4P025 |
US $82.08 |
||
|
49520K
|
49520K
48520-4P025 Socket Kit-Tie Rod, Outer9805--01 ~ ; EV |
48520-4P025 |
US $82.08 |
||
|
49521K
|
49521K
48521-9V125
Socket Kit-Tie Rod, Inner
9805--01 ~ ; EV |
48521-9V125 |
— | ||
|
49521K
|
49521K
48521-9V125
Socket Kit-Tie Rod, Inner
9805--01 ~ ; EV |
48521-9V125 |
— | ||
|
49541
|
49541
49541-9V100
Tube Assy-Cylinder
9805--01 ~ 0012--01; EV |
49541-9V100 |
— | ||
|
49541
|
49541
49541-9V101
Tube Assy-Cylinder
0012--01 ~ ; EV |
49541-9V101 |
— | ||
|
49542
|
49542
49542-9V100
Tube Assy-Cylinder
9805--01 ~ 0012--01; EV |
49542-9V100 |
— | ||
|
49542
|
49542
49542-9V101
Tube Assy-Cylinder
0012--01 ~ ; EV |
49542-9V101 |
— | ||
|
49635M
|
49635M
4863550A06 Spacer-Lock Nut9805--01 ~ ; EV |
4863550A06 |
US $12.05 |
||
|
49635M
|
49635M
4863550A06 Spacer-Lock Nut9805--01 ~ ; EV |
4863550A06 |
US $12.05 |
||
