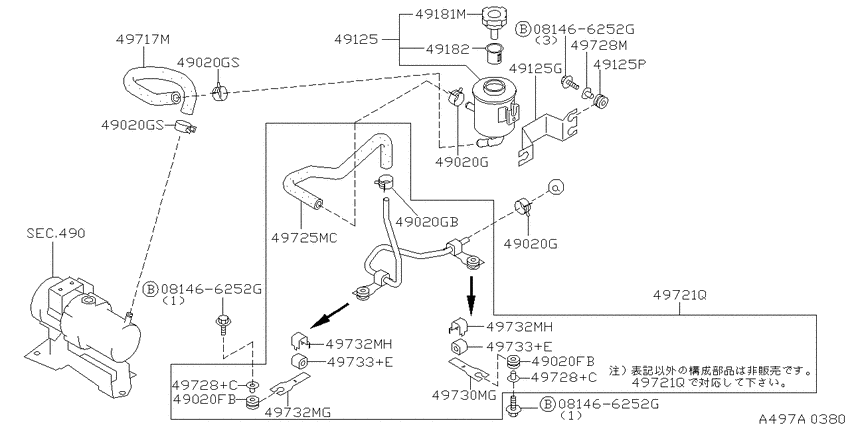

Power steering piping (1998-05-01 ~ ; パート 2; EV) Diagram Nissan R`NESSA
- Year
- 1998 - 2012
- Sales region
- Japan
- drive
- EV
- grade
- EV
- body
- EV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
49020FB
|
49020FB
18316S3260 Bush9805--01 ~ ; EV |
18316S3260 |
US $4.71 |
||
|
49020FB
|
49020FB
18316S3260 Bush9805--01 ~ ; EV |
18316S3260 |
US $4.71 |
||
|
49020G
|
49020G
49729-2J001 Clamp9805--01 ~ ; EV |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J001 Clamp9805--01 ~ ; EV |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J001 Clamp9805--01 ~ ; EV |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J016
Clamp
9805--01 ~ ; EV |
49729-2J016 |
— | ||
| replacement | |||||
|
49020G
|
49020G
497292J01B Clamp9805--01 ~ ; EV |
497292J01B |
from US $1.96 |
||
|
49020G
|
49020G
49729-2J001 Clamp9805--01 ~ ; EV |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J001 Clamp9805--01 ~ ; EV |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J001 Clamp9805--01 ~ ; EV |
49729-2J001 |
US $2.45 |
||
|
49020G
|
49020G
49729-2J016
Clamp
9805--01 ~ ; EV |
49729-2J016 |
— | ||
| replacement | |||||
|
49020G
|
49020G
497292J01B Clamp9805--01 ~ ; EV |
497292J01B |
from US $1.96 |
||
|
49020GB
|
49020GB
49729-2J001 Clamp9805--01 ~ ; EV |
49729-2J001 |
US $2.45 |
||
|
49020GS
|
49020GS
49729-2J016
Clamp
9805--01 ~ ; EV |
49729-2J016 |
— | ||
| replacement | |||||
|
49020GS
|
49020GS
497292J01B Clamp9805--01 ~ ; EV |
497292J01B |
from US $1.96 |
||
|
49020GS
|
49020GS
49729-2J016
Clamp
9805--01 ~ ; EV |
49729-2J016 |
— | ||
| replacement | |||||
|
49020GS
|
49020GS
497292J01B Clamp9805--01 ~ ; EV |
497292J01B |
from US $1.96 |
||
|
49125
|
49125
49180-9V100
Tank Assy-Reservoir
9805--01 ~ ; EV |
49180-9V100 |
— | ||
|
49125
|
49125
49190-9V000
Bracket-Reservoir Tank
9805--01 ~ ; EV |
49190-9V000 |
— | ||
|
49125
|
49125
18316S3260 Bush9805--01 ~ ; EV |
18316S3260 |
US $4.71 |
||
|
49125G
|
49125G
49190-9V000
Bracket-Reservoir Tank
9805--01 ~ ; EV |
49190-9V000 |
— | ||
|
49125P
|
49125P
18316S3260 Bush9805--01 ~ ; EV |
18316S3260 |
US $4.71 |
||
|
49181M
|
49181M
49181-9V100
Cap Assy-Reservoir
9805--01 ~ ; EV |
49181-9V100 |
— | ||
|
49182
|
49182
49182-42L00 Filter Assy-Pump9805--01 ~ ; EV |
49182-42L00 |
US $5.55 |
||
|
49717M
|
49717M
49717-9V000
Hose Assy-Suction, Power Steering
9805--01 ~ ; EV |
49717-9V000 |
— | ||
|
49721Q
|
49721Q
49721-5V300
Tube Assy-Return, Power Steering
9805--01 ~ ; EV |
49721-5V300 |
— | ||
|
49725MC
|
49725MC
49725-9V010
Hose-Return, Power Steering
9805--01 ~ ; EV |
49725-9V010 |
— | ||
|
49728+C
|
49728+C
49728-55S00
Collar
9805--01 ~ ; EV |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+C
|
49728+C
49728-55S0A Collar-Insulator9805--01 ~ ; EV |
49728-55S0A |
US $2.64 |
||
|
49728+C
|
49728+C
49728-55S00
Collar
9805--01 ~ ; EV |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+C
|
49728+C
49728-55S0A Collar-Insulator9805--01 ~ ; EV |
49728-55S0A |
US $2.64 |
||
|
49728M
|
49728M
49728-55S00
Collar
9805--01 ~ ; EV |
49728-55S00 |
— | ||
| replacement | |||||
|
49728M
|
49728M
49728-55S0A Collar-Insulator9805--01 ~ ; EV |
49728-55S0A |
US $2.64 |
||
|
49730MG
|
49730MG
49730-9V015
Bracket-Tube
9805--01 ~ ; EV |
49730-9V015 |
— | ||
|
49732MG
|
49732MG
49732-79916 Clamp9805--01 ~ ; EV |
49732-79916 |
US $14.83 |
||
|
49732MH
|
49732MH
49732-36E00 BRACKET-POWER STEERING TUBE9805--01 ~ ; EV |
49732-36E00 |
US $9.79 |
||
|
49732MH
|
49732MH
49732-36E00 BRACKET-POWER STEERING TUBE9805--01 ~ ; EV |
49732-36E00 |
US $9.79 |
||
|
49733+E
|
49733+E
49733-55M00 Insulator9805--01 ~ ; EV |
49733-55M00 |
US $4.57 |
||
|
49733+E
|
49733+E
49733-55M00 Insulator9805--01 ~ ; EV |
49733-55M00 |
US $4.57 |
||
