Component List R`NESSA
Air cleaner (2000-01-01 ~ ; SR20DE.AT.CVT; SR20DE)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0836362525	0836362525 08363-62525 ｽｸﾘﾕ-,ﾏｼﾝ	08363-62525	—
0891110637	0891110637 0891110637 NUT	0891110637	from US $0.52
118	Crankcase ventilation 118
118	Crankcase ventilation 118
118	Crankcase ventilation 118
148	Secondary air system 148
148	Secondary air system 148
148	Secondary air system 148
163	Throttle chamber 163
163	Throttle chamber 163
163	Throttle chamber 163
16500	16500 16500-5V500 Air Cleaner 9811--01 ~ 0001--01; SR20DE.AT.CVT	16500-5V500	US $411.60
16500	16500 11058-5V000 Washer-Lock 9811--01 ~ 9907--01; SR20DE	11058-5V000	US $1.68
	replacement
16500	16500 11058-5V00A Washer-Lock 9811--01 ~ 9907--01; SR20DE	11058-5V00A	US $2.24
16500	16500 16500-5V500 Air Cleaner 9811--01 ~ 0001--01; SR20DE.AT.CVT	16500-5V500	US $411.60
16500	16500 11058-5V000 Washer-Lock 9811--01 ~ 9907--01; SR20DE	11058-5V000	US $1.68
	replacement
16500	16500 11058-5V00A Washer-Lock 9811--01 ~ 9907--01; SR20DE	11058-5V00A	US $2.24
16500E	16500E 11058-5V000 Washer-Lock 9811--01 ~ 9907--01; SR20DE	11058-5V000	US $1.68
	replacement
16500E	16500E 11058-5V00A Washer-Lock 9811--01 ~ 9907--01; SR20DE	11058-5V00A	US $2.24
16505A	16505A 01436-01681 BOLT 9811--01 ~ 9907--01; SR20DE	01436-01681	US $1.68
16510A	16510A 01436-00541 SCREW 9811--01 ~ 9907--01; SR20DE	01436-00541	US $1.68
16526	16526 16526-5V000 Air Cleaner Cover 9811--01 ~ 9907--01; SR20DE	16526-5V000	US $104.58
16528	16528 16528-5V500 Body Assy-Air Cleaner 9811--01 ~ 0001--01; SR20DE.AT.CVT	16528-5V500	US $204.40
16546	16546 AY120NS001 Element Assy-Air 9811--01 ~ 9907--01; SR20DE	AY120NS001	—
	replacements
16546	16546 AY120NS00101 Element Assy-Air 9811--01 ~ 9907--01; SR20DE	AY120NS00101	US $28.46
16546	16546 AY120-NS063 Element Assy-Air 9811--01 ~ 9907--01; SR20DE	AY120-NS063	US $23.66
16557G	16557G 16559-31U00 Mounting-Rubber 9811--01 ~ 9907--01; SR20DE	16559-31U00	from US $4.24
16557H	16557H 16559-0E000 MOUNTING-RUBBER 9811--01 ~ 9907--01; SR20DE	16559-0E000	US $10.22
16557H	16557H 16557-77A10 Mounting Rubber 9811--01 ~ 9907--01; SR20DE	16557-77A10	US $4.06
16557HA	16557HA 16557-77A10 Mounting Rubber 9811--01 ~ 9907--01; SR20DE	16557-77A10	US $4.06
16576E	16576E 16566-60U00 Retainer 9811--01 ~ 9907--01; SR20DE	16566-60U00	—
	replacement
16576E	16576E 1656660U0A Retainer 9811--01 ~ 9907--01; SR20DE	1656660U0A	from US $6.37
16577	16577 16554-5V000 Duct Assy-Air 9811--01 ~ 9907--01; SR20DE	16554-5V000	US $39.48
16577	16577 14464-45V15 Clamp-Hose 9811--01 ~ 9907--01; SR20DE	14464-45V15	—
	replacement
16577	16577 14464-45V1B Clamp-Hose 9811--01 ~ 9907--01; SR20DE	14464-45V1B	US $11.27
16577	16577 01555-00571 CLAMP-HOSE 9811--01 ~ 9907--01; SR20DE	01555-00571	US $7.42
	replacement
16577	16577 0155501031 CLAMP-HOSE 9811--01 ~ 9907--01; SR20DE	0155501031	US $7.42
16577	16577 16439-V5001 Clamp-Hose, A 9811--01 ~ 9907--01; SR20DE	16439-V5001	—
	replacement
16577	16577 16439V500C Clamp-Hose 9811--01 ~ 9907--01; SR20DE	16439V500C	from US $3.20
16577F	16577F 14464-45V15 Clamp-Hose 9811--01 ~ 9907--01; SR20DE	14464-45V15	—
	replacement
16577F	16577F 14464-45V1B Clamp-Hose 9811--01 ~ 9907--01; SR20DE	14464-45V1B	US $11.27
16577F	16577F 01555-00571 CLAMP-HOSE 9811--01 ~ 9907--01; SR20DE	01555-00571	US $7.42
	replacement
16577F	16577F 0155501031 CLAMP-HOSE 9811--01 ~ 9907--01; SR20DE	0155501031	US $7.42
16577F	16577F 16439-V5001 Clamp-Hose, A 9811--01 ~ 9907--01; SR20DE	16439-V5001	—
	replacement
16577F	16577F 16439V500C Clamp-Hose 9811--01 ~ 9907--01; SR20DE	16439V500C	from US $3.20
16577FA	16577FA 01555-00571 CLAMP-HOSE 9811--01 ~ 9907--01; SR20DE	01555-00571	US $7.42
	replacement
16577FA	16577FA 0155501031 CLAMP-HOSE 9811--01 ~ 9907--01; SR20DE	0155501031	US $7.42
16577FB	16577FB 16439-V5001 Clamp-Hose, A 9811--01 ~ 9907--01; SR20DE	16439-V5001	—
	replacement
16577FB	16577FB 16439V500C Clamp-Hose 9811--01 ~ 9907--01; SR20DE	16439V500C	from US $3.20
16577FB	16577FB 16439-V5001 Clamp-Hose, A 9811--01 ~ 9907--01; SR20DE	16439-V5001	—
	replacement
16577FB	16577FB 16439V500C Clamp-Hose 9811--01 ~ 9907--01; SR20DE	16439V500C	from US $3.20
16578	16578 16578-5V000 Duct-Air 9811--01 ~ 9907--01; SR20DE	16578-5V000	US $88.20
16580T	16580T 165855V000 Resonator Assy 9811--01 ~ 9907--01; SR20DE	165855V000	US $105.42
16598	16598 16598-53J01 Clip 9811--01 ~ 0001--01; SR20DE.AT.CVT	16598-53J01	US $4.20
	replacement
16598	16598 1659853J0A Clip 9811--01 ~ 0001--01; SR20DE.AT.CVT	1659853J0A	from US $2.74
22680	22680 226802J200 Mass Air Flow 9811--01 ~ 9907--01; SR20DE	226802J200	US $539

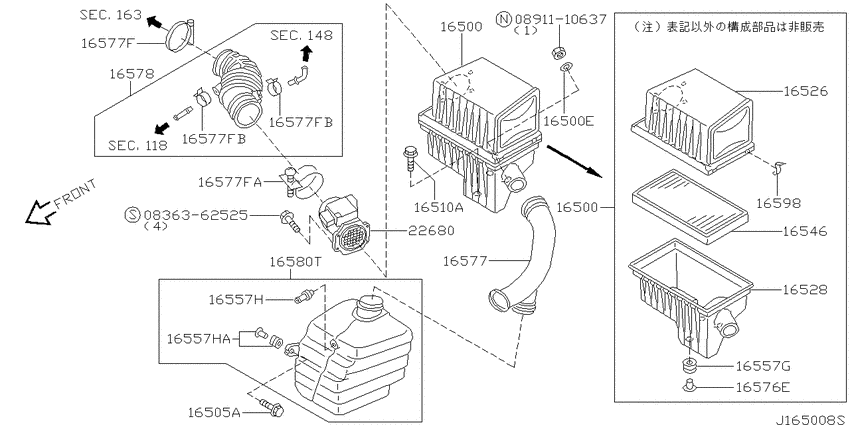

Air cleaner (2000-01-01 ~ ; SR20DE.AT.CVT; SR20DE) Diagram Nissan R`NESSA Japan 7797939-620270

Air cleaner (2000-01-01 ~ ; SR20DE.AT.CVT; SR20DE) Diagram Nissan R`NESSA Japan 7797939-620270
