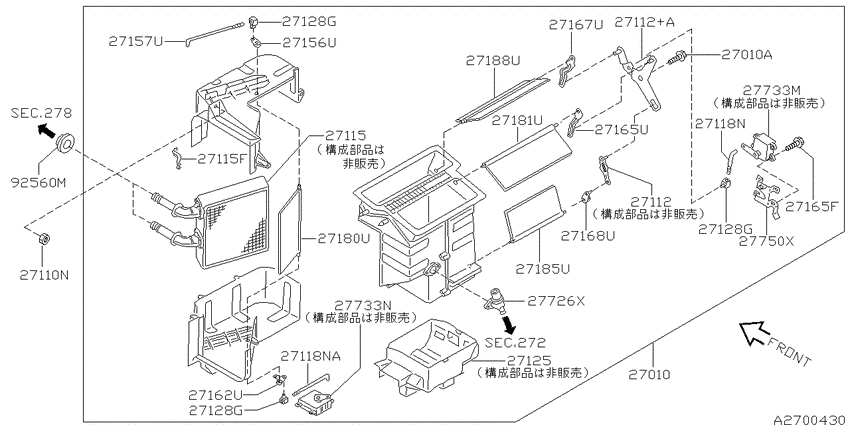

Heater & blower unit (1999-07-01 ~ 2000-01-01; ヒーター ユニット; W) Diagram Nissan R`NESSA
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT.CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010
|
27010
27110-5V001 Heating Unit Assy-Front9811--01 ~ 9907--01; 3W.SR20DE.(G+X) +W.(SR20DET+KA24DE) +W.(G/LTD+X/LTD) |
27110-5V001 |
US $960.05 |
||
|
27010
|
27010
27110-5V002 Heating Unit Assy-Front0001--01 ~ ; W |
27110-5V002 |
US $960.05 |
||
|
27010
|
27010
271992J000 Screw9811--01 ~ 9907--01; W |
271992J000 |
US $1.73 |
||
|
27010
|
27010
01456-00461 SCREW9811--01 ~ 9907--01; W |
01456-00461 |
US $1.73 |
||
|
27010A
|
27010A
271992J000 Screw9811--01 ~ 9907--01; W |
271992J000 |
US $1.73 |
||
|
27110N
|
27110N
0122500561 NUT9811--01 ~ 9907--01; W |
0122500561 |
from US $0.57 |
||
|
27112
|
27112
271590M000 Link Assy-Side9811--01 ~ 9907--01; W |
271590M000 |
US $3.46 |
||
|
27112
|
27112
27155-5V000 Link Assy-Side9811--01 ~ 9907--01; W |
27155-5V000 |
US $10.80 |
||
|
27112+A
|
27112+A
27155-5V000 Link Assy-Side9811--01 ~ 9907--01; W |
27155-5V000 |
US $10.80 |
||
|
27115
|
27115
27140-5V010 Core Assy-Front Heater9811--01 ~ 9907--01; W |
27140-5V010 |
US $260.64 |
||
|
27115
|
27115
27140-5V011 Core Assy-Front Heater9907--01 ~ 0001--01; W |
27140-5V011 |
US $304.44 |
||
|
27115
|
27115
27140-5V012 Core Assy-Front Heater0104--01 ~ ; W |
27140-5V012 |
US $260.64 |
||
|
27115
|
27115
27148-0E000 SUPPORT-HEATER CORE9811--01 ~ 9907--01; W |
27148-0E000 |
US $3.46 |
||
|
27115F
|
27115F
27148-0E000 SUPPORT-HEATER CORE9811--01 ~ 9907--01; W |
27148-0E000 |
US $3.46 |
||
|
27118N
|
27118N
27781-5V000 Rod-Actuator9811--01 ~ 9907--01; W |
27781-5V000 |
US $8.35 |
||
|
27118N
|
27118N
27781-0N405 Rod9811--01 ~ 9907--01; W |
27781-0N405 |
US $5.18 |
||
|
27118NA
|
27118NA
27781-0N405 Rod9811--01 ~ 9907--01; W |
27781-0N405 |
US $5.18 |
||
|
27125
|
27125
27125-5V001 Duct Assy-Foot9811--01 ~ 9907--01; W |
27125-5V001 |
US $19.44 |
||
|
27125
|
27125
27836-5V000 Duct-Foot9811--01 ~ 9907--01; W |
27836-5V000 |
US $20.88 |
||
|
27128G
|
27128G
27137-D4000 Holder-Rod9811--01 ~ 9907--01; W |
27137-D4000 |
US $0.85 |
||
|
27128G
|
27128G
27137-D4000 Holder-Rod9811--01 ~ 9907--01; W |
27137-D4000 |
US $0.85 |
||
|
27128G
|
27128G
27137-D4000 Holder-Rod9811--01 ~ 9907--01; W |
27137-D4000 |
US $0.85 |
||
|
27156U
|
27156U
271560M000 Lever-Air Mix Door9811--01 ~ 9907--01; W |
271560M000 |
US $1.01 |
||
|
27157U
|
27157U
27157-0M000 Lever-Heater Cock9811--01 ~ 9907--01; W |
27157-0M000 |
US $5.18 |
||
|
27162U
|
27162U
27162-2J000 Lever-Air Mix Door9811--01 ~ 9907--01; W |
27162-2J000 |
US $5.47 |
||
|
27165U
|
27165U
271650M001 Lever-Vent9811--01 ~ 9907--01; W |
271650M001 |
US $3.46 |
||
|
27167U
|
27167U
271670M001 Lever-Def9811--01 ~ 9907--01; W |
271670M001 |
US $3.46 |
||
|
27168U
|
27168U
27168-0M001
Lever-Foot
9811--01 ~ 9907--01; W |
27168-0M001 |
— | ||
|
27180U
|
27180U
27180-0M000 Door-Front Heater9811--01 ~ 9907--01; W |
27180-0M000 |
US $12.10 |
||
|
27180U
|
27180U
27180-0M010 Door-Front Heater0104--01 ~ ; W |
27180-0M010 |
US $12.10 |
||
|
27181U
|
27181U
27181-0M000 Door Assy-Vent, No.19811--01 ~ 9907--01; W |
27181-0M000 |
from US $10.22 |
||
|
27185U
|
27185U
27185-41B01
Door Assy-Foot
9811--01 ~ 9907--01; W |
27185-41B01 |
— | ||
|
27188U
|
27188U
27188-0M000 Door Assy-Def9811--01 ~ 9907--01; W |
27188-0M000 |
US $10.22 |
||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
27726X
|
27726X
277260P000 Aspirator9811--01 ~ 9907--01; W |
277260P000 |
US $6.34 |
||
|
27733M
|
27733M
27731-5V000 Actuator Assy-Mode9811--01 ~ 9907--01; 3W.SR20DE.(G+X) +W.(SR20DET+KA24DE) +W.(G/LTD+X/LTD) |
27731-5V000 |
US $118.66 |
||
|
27733M
|
27733M
27731-5V001 Actuator Assy-Mode9907--01 ~ 0001--01; W |
27731-5V001 |
US $118.66 |
||
|
27733N
|
27733N
27732-5V001 Actuator Assy-Air Mix9811--01 ~ 9907--01; 3W.SR20DE.(G+X) +W.(SR20DET+KA24DE) +W.(G/LTD+X/LTD) |
27732-5V001 |
US $83.48 |
||
|
27733N
|
27733N
27732-VB210 Actuator Assy-Air Mix0104--01 ~ ; W |
27732-VB210 |
US $79.78 |
||
|
27750X
|
27750X
27750-5V000 Bracket-Actuator9811--01 ~ 9907--01; 3W.SR20DE.(G+X) +W.(SR20DET+KA24DE) +W.(G/LTD+X/LTD) |
27750-5V000 |
US $14.11 |
||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
278
|
Heater piping
278
|
||||
|
92560M
|
92560M
92580-78E01 GROMMET-RUBBER9811--01 ~ 9907--01; W |
92580-78E01 |
US $5.48 |
||
