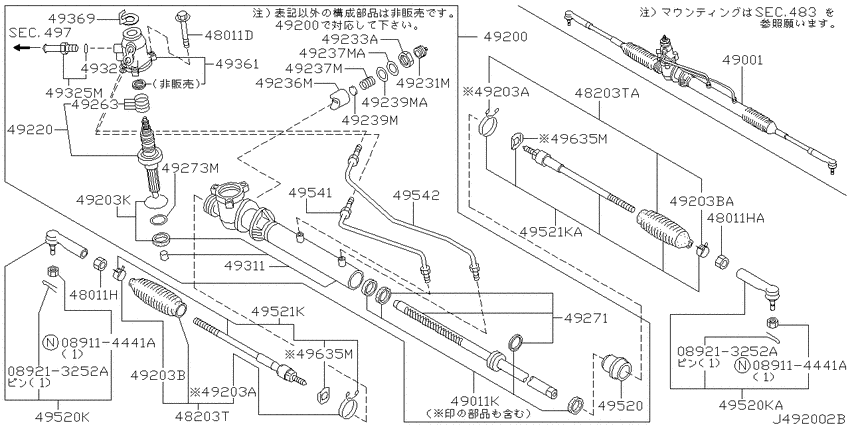

Power steering gear (2000-01-01 ~ ; SR20DE) Diagram Nissan R`NESSA
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT.CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089114441A
|
089114441A
089114441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089114441A |
— | ||
|
089114441A
|
089114441A
089114441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089114441A |
— | ||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
from US $0.43 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
from US $0.43 |
||
|
48011D
|
48011D
01141-00281 BOLT9811--01 ~ 9907--01; SR20DE |
01141-00281 |
US $0.84 |
||
|
48011H
|
48011H
0121100371 NUT9811--01 ~ 9907--01; SR20DE |
0121100371 |
from US $1.09 |
||
|
48011H
|
48011H
0121100371 NUT0001--01 ~ ; SR20DE |
0121100371 |
from US $1.09 |
||
|
48011HA
|
48011HA
0121100371 NUT0001--01 ~ ; SR20DE |
0121100371 |
from US $1.09 |
||
|
48203T
|
48203T
48203-0E025
BOOT KIT-POWER STEERING GEAR
9811--01 ~ 9907--01; SR20DE |
48203-0E025 |
— | ||
| replacement | |||||
|
48203T
|
48203T
482030E026 BOOT KIT-POWER STEERING GEAR9811--01 ~ 9907--01; SR20DE |
482030E026 |
from US $24.94 |
||
|
48203T
|
48203T
48203-2Y025 Boot Kit-Power Steering Gear0001--01 ~ ; SR20DE |
48203-2Y025 |
US $24.92 |
||
|
48203T
|
48203T
48203AL525 Boot Kit-Power Steering Gear9907--01 ~ 0001--01; SR20DE |
48203AL525 |
US $22.68 |
||
|
48203T
|
48203T
48204-2Y025 Boot Kit-Power Steering Gear0001--01 ~ ; SR20DE |
48204-2Y025 |
US $29.96 |
||
|
48203T
|
48203T
48204-5Y025 Boot Kit-Power Steering Gear9907--01 ~ 0001--01; SR20DE |
48204-5Y025 |
US $27.30 |
||
|
48203TA
|
48203TA
48204-2Y025 Boot Kit-Power Steering Gear0001--01 ~ ; SR20DE |
48204-2Y025 |
US $29.96 |
||
|
48203TA
|
48203TA
48204-5Y025 Boot Kit-Power Steering Gear9907--01 ~ 0001--01; SR20DE |
48204-5Y025 |
US $27.30 |
||
|
483
|
Steering gear mounting
483
|
||||
|
483
|
Steering gear mounting
483
|
||||
|
483
|
Steering gear mounting
483
|
||||
|
49001
|
49001
49001-5V020 ｷﾞﾔ & ﾘﾝｹ-ｼﾞ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9811--01 ~ 9907--01; SR20DE |
49001-5V020 |
US $2,044 |
||
|
49001
|
49001
49001-5V021 ｷﾞﾔ & ﾘﾝｹ-ｼﾞ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9907--01 ~ 0001--01; *SR20DE |
49001-5V021 |
US $2,044 |
||
|
49001
|
49001
49001-5V022 ｷﾞﾔ & ﾘﾝｹ-ｼﾞ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ0001--01 ~ ; SR20DE |
49001-5V022 |
US $2,044 |
||
|
49011K
|
49011K
49297-85E26 SEAL KIT-RACK,POWER STEERING GEAR9811--01 ~ 9907--01; SR20DE |
49297-85E26 |
US $57.54 |
||
| replacements | |||||
|
49011K
|
49011K
49297-5Y085 Seal kit-rack,power steering gear9811--01 ~ 9907--01; SR20DE |
49297-5Y085 |
from US $53.56 |
||
|
49011K
|
49011K
49298-10V10 Bush-center9811--01 ~ 9907--01; SR20DE |
49298-10V10 |
US $11.52 |
||
|
49011K
|
49011K
4863550A06 Spacer-Lock Nut9811--01 ~ 9907--01; SR20DE |
4863550A06 |
US $11.52 |
||
|
49011K
|
49011K
49297-85E27 ｼ-ﾙ ｷﾂﾄ,ﾗﾂｸ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ｷﾞﾔ0001--01 ~ 0010--01; SR20DE |
49297-85E27 |
US $62.44 |
||
|
49200
|
49200
49200-5V020 ｷﾞﾔ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9811--01 ~ 9907--01; SR20DE |
49200-5V020 |
US $1,694 |
||
|
49200
|
49200
49200-5V022 ｷﾞﾔ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ0001--01 ~ ; SR20DE |
49200-5V022 |
US $1,694 |
||
|
49203A
|
49203A
4805510V00 Clamp-Boot9811--01 ~ 9907--01; SR20DE |
4805510V00 |
US $2.66 |
||
|
49203A
|
49203A
48055-AA000 Clamp-Boot0001--01 ~ ; SR20DE |
48055-AA000 |
US $4.90 |
||
|
49203A
|
49203A
4805510V00 Clamp-Boot9811--01 ~ 9907--01; SR20DE |
4805510V00 |
US $2.66 |
||
|
49203A
|
49203A
48055-AA000 Clamp-Boot0001--01 ~ ; SR20DE |
48055-AA000 |
US $4.90 |
||
|
49203B
|
49203B
48054-0P700 Clamp-Boot9811--01 ~ 9907--01; SR20DE |
48054-0P700 |
US $1.12 |
||
|
49203B
|
49203B
48054-AA000 Clamp-Boot0001--01 ~ ; SR20DE |
48054-AA000 |
US $4.06 |
||
|
49203B
|
49203B
48054-AA000 Clamp-Boot0001--01 ~ ; SR20DE |
48054-AA000 |
US $4.06 |
||
|
49203BA
|
49203BA
48054-AA000 Clamp-Boot0001--01 ~ ; SR20DE |
48054-AA000 |
US $4.06 |
||
|
49203K
|
49203K
49365-10V26 Seal Kit-Pinion, Power Steering Gear9811--01 ~ 9907--01; SR20DE |
49365-10V26 |
from US $6.89 |
||
|
49220
|
49220
49220-5V000 ﾋﾟﾆｵﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9811--01 ~ 9907--01; SR20DE |
49220-5V000 |
US $285.60 |
||
|
49220
|
49220
49220-5V022 ﾋﾟﾆｵﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ0010--01 ~ ; SR20DE |
49220-5V022 |
US $285.60 |
||
|
49220
|
49220
49220-5V060 ﾋﾟﾆｵﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9907--01 ~ 0001--01; SR20DE |
49220-5V060 |
US $285.60 |
||
|
49231M
|
49231M
48231-32R00 Screw-Adjust Retainer9811--01 ~ 9907--01; SR20DE |
48231-32R00 |
US $5.43 |
||
|
49233A
|
49233A
48233-60A00 Nut9811--01 ~ 9907--01; SR20DE |
48233-60A00 |
US $4.23 |
||
|
49236M
|
49236M
48236-40U00 Retainer-Power Steering Gear9811--01 ~ 9907--01; SR20DE |
48236-40U00 |
US $5.70 |
||
|
49237M
|
49237M
48237-4E100 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=25.67 |
48237-4E100 |
US $5.18 |
||
|
49237M
|
49237M
48237-4E101 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=22.67 |
48237-4E101 |
US $5.04 |
||
|
49237M
|
49237M
48237-4E102 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=28.67 |
48237-4E102 |
US $5.04 |
||
|
49237M
|
49237M
48237-4E103 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=23.67 |
48237-4E103 |
US $5.04 |
||
|
49237M
|
49237M
48237-4E104 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=24.67 |
48237-4E104 |
US $5.04 |
||
|
49237M
|
49237M
48237-4E105 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=26.67 |
48237-4E105 |
US $5.04 |
||
|
49237M
|
49237M
48237-4E106 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=27.67 |
48237-4E106 |
US $5.04 |
||
|
49237M
|
49237M
48237-53E10 SPRING-RETAINER9811--01 ~ 9907--01; SR20DE; ｾﾝﾀｸ L=21.86 |
48237-53E10 |
US $5.04 |
||
|
49237M
|
49237M
48237-10V10 Spring-Retainer9811--01 ~ 9907--01; SR20DE |
48237-10V10 |
US $4.23 |
||
|
49237MA
|
49237MA
48237-10V10 Spring-Retainer9811--01 ~ 9907--01; SR20DE |
48237-10V10 |
US $4.23 |
||
|
49239M
|
49239M
48239-F6110 Seat-Spring, Retainer Power Steering Gear9811--01 ~ 9907--01; SR20DE |
48239-F6110 |
US $2.52 |
||
|
49239M
|
49239M
4823960A10 Seat-Spring, Retainer Power Steering Gear9811--01 ~ 9907--01; SR20DE |
4823960A10 |
US $2.52 |
||
|
49239MA
|
49239MA
4823960A10 Seat-Spring, Retainer Power Steering Gear9811--01 ~ 9907--01; SR20DE |
4823960A10 |
US $2.52 |
||
|
49263
|
49263
49263-65F00 Ring-Worm, Flon9811--01 ~ 9907--01; SR20DE |
49263-65F00 |
US $5.31 |
||
|
49271
|
49271
49271-5V000 ﾗﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9811--01 ~ 9907--01; SR20DE |
49271-5V000 |
US $285.60 |
||
|
49273M
|
49273M
48273-10V00 Shim Adjust-Pinion Bearing9811--01 ~ 9907--01; SR20DE |
48273-10V00 |
US $4.63 |
||
|
49311
|
49311
49311-5V000 ﾊｳｼﾞﾝｸﾞ & ｼﾘﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9811--01 ~ 9907--01; SR20DE |
49311-5V000 |
US $212.80 |
||
|
49311
|
49311
49311-5V022 ﾊｳｼﾞﾝｸﾞ & ｼﾘﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ0001--01 ~ ; SR20DE |
49311-5V022 |
US $212.80 |
||
|
49311
|
49311
49311-5V060 ﾊｳｼﾞﾝｸﾞ & ｼﾘﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9907--01 ~ 0001--01; SR20DE |
49311-5V060 |
US $212.80 |
||
|
49311
|
49311
49311-5V061 ﾊｳｼﾞﾝｸﾞ & ｼﾘﾝﾀﾞ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9907--01 ~ 0001--01; *SR20DE |
49311-5V061 |
US $212.80 |
||
|
49325M
|
49325M
49325-AA000 Port Assy-Drain, Power Steering9811--01 ~ 9907--01; SR20DE |
49325-AA000 |
US $6.16 |
||
|
49328
|
49328
4932803E00 SEAL-O RING9811--01 ~ 9907--01; SR20DE |
4932803E00 |
from US $0.98 |
||
|
49361
|
49361
49361-50J00 HOUSING ASSYRE9811--01 ~ 9907--01; SR20DE |
49361-50J00 |
US $106.40 |
||
|
49361
|
49361
49361-5V022 ﾊｳｼﾞﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ0010--01 ~ ; SR20DE |
49361-5V022 |
US $128.52 |
||
|
49361
|
49361
49361-5V060 ﾊｳｼﾞﾝｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ9907--01 ~ 0001--01; SR20DE |
49361-5V060 |
US $128.52 |
||
|
49369
|
49369
49369-4M401 Cap-Rear Cover9907--01 ~ 0001--01; SR20DE |
49369-4M401 |
US $13.58 |
||
|
49369
|
49369
49369-60U00 Cap-Rear Cover9811--01 ~ 9907--01; SR20DE |
49369-60U00 |
US $15.37 |
||
|
49520
|
49520
4952010V06 Cover Assy-Cylinder End9811--01 ~ 9907--01; SR20DE |
4952010V06 |
from US $53.34 |
||
|
49520
|
49520
49520-2Y400 Cover Assy-Cylinder End9907--01 ~ 0001--01; SR20DE |
49520-2Y400 |
from US $50.10 |
||
|
49520
|
49520
49520-5V022 ｶﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｼﾘﾝﾀﾞ- ｴﾝﾄﾞ0001--01 ~ ; SR20DE |
49520-5V022 |
US $54.88 |
||
|
49520
|
49520
485200P726 Socket Kit-Tie Rod, Outer9907--01 ~ 0001--01; SR20DE |
485200P726 |
from US $48.23 |
||
|
49520
|
49520
48520-4P025 Socket Kit-Tie Rod, Outer9811--01 ~ 9907--01; SR20DE |
48520-4P025 |
US $79.80 |
||
|
49520
|
49520
48520-4P025 Socket Kit-Tie Rod, Outer0001--01 ~ ; SR20DE |
48520-4P025 |
US $79.80 |
||
|
49520K
|
49520K
485200P726 Socket Kit-Tie Rod, Outer9907--01 ~ 0001--01; SR20DE |
485200P726 |
from US $48.23 |
||
|
49520K
|
49520K
48520-4P025 Socket Kit-Tie Rod, Outer9811--01 ~ 9907--01; SR20DE |
48520-4P025 |
US $79.80 |
||
|
49520K
|
49520K
48520-4P025 Socket Kit-Tie Rod, Outer0001--01 ~ ; SR20DE |
48520-4P025 |
US $79.80 |
||
|
49520KA
|
49520KA
48520-4P025 Socket Kit-Tie Rod, Outer0001--01 ~ ; SR20DE |
48520-4P025 |
US $79.80 |
||
|
49521K
|
49521K
48521-5V025 SOCKET KITROD9811--01 ~ 9907--01; SR20DE |
48521-5V025 |
US $180.60 |
||
|
49521K
|
49521K
48521-5V125 ｿｹﾂﾄ ｷﾂﾄ,ﾀｲ ﾛﾂﾄﾞ ｲﾝﾅ-0001--01 ~ ; SR20DE |
48521-5V125 |
US $180.60 |
||
|
49521K
|
49521K
48521-5V185 ｿｹﾂﾄ ｷﾂﾄ,ﾀｲ ﾛﾂﾄﾞ ｲﾝﾅ-0001--01 ~ ; SR20DE |
48521-5V185 |
US $180.60 |
||
|
49521KA
|
49521KA
48521-5V185 ｿｹﾂﾄ ｷﾂﾄ,ﾀｲ ﾛﾂﾄﾞ ｲﾝﾅ-0001--01 ~ ; SR20DE |
48521-5V185 |
US $180.60 |
||
|
49541
|
49541
49541-5V000 ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼﾘﾝﾀﾞ-9811--01 ~ 9907--01; SR20DE |
49541-5V000 |
US $43.68 |
||
|
49541
|
49541
49541-5V022 ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼﾘﾝﾀﾞ-0010--01 ~ ; SR20DE |
49541-5V022 |
US $43.68 |
||
|
49542
|
49542
49542-5V000 ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼﾘﾝﾀﾞ-9811--01 ~ 9907--01; SR20DE |
49542-5V000 |
US $55.30 |
||
|
49542
|
49542
49542-5V022 ﾁﾕ-ﾌﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼﾘﾝﾀﾞ-0010--01 ~ ; SR20DE |
49542-5V022 |
US $55.30 |
||
|
49635M
|
49635M
48635-2L701 ﾌﾟﾚ-ﾄ,ﾛﾂｸ ｻｲﾄﾞ ﾛﾂﾄﾞ0001--01 ~ 0010--01; SR20DE |
48635-2L701 |
US $13.72 |
||
|
49635M
|
49635M
4863550A06 Spacer-Lock Nut9811--01 ~ 9907--01; SR20DE |
4863550A06 |
US $11.52 |
||
|
49635M
|
49635M
48635-WF500 Plate-Lock Side Rod0010--01 ~ ; SR20DE |
48635-WF500 |
US $14.98 |
||
|
49635M
|
49635M
48635-2L701 ﾌﾟﾚ-ﾄ,ﾛﾂｸ ｻｲﾄﾞ ﾛﾂﾄﾞ0001--01 ~ 0010--01; SR20DE |
48635-2L701 |
US $13.72 |
||
|
49635M
|
49635M
4863550A06 Spacer-Lock Nut9811--01 ~ 9907--01; SR20DE |
4863550A06 |
US $11.52 |
||
|
49635M
|
49635M
48635-WF500 Plate-Lock Side Rod0010--01 ~ ; SR20DE |
48635-WF500 |
US $14.98 |
||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
|
497
|
Power steering piping
497
|
||||
