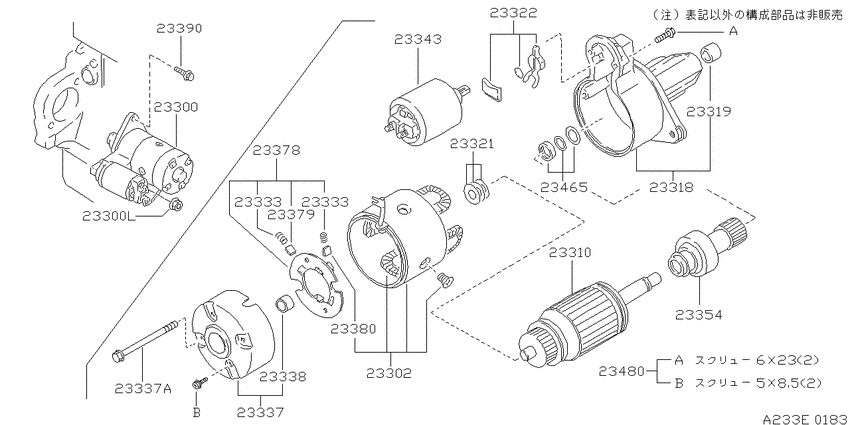

Starter motor (1998-11-01 ~ 1999-07-01; 三菱; SR20DE.AT.CVT) Diagram Nissan R`NESSA
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT.CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300
|
23300
23300-4J606 Motor Assy-Starter9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23300-4J606 |
US $911.90 |
||
|
23300
|
23300
23300-4J610 Motor Assy-Starter9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23300-4J610 |
US $911.90 |
||
|
23300
|
23300
0122100381 NUT9811--01 ~ 9907--01; *SR20DE.AT.CVT; ｶﾝﾚｲﾁ ｼﾖｳ |
0122100381 |
US $7.91 |
||
|
23300L
|
23300L
0122100381 NUT9811--01 ~ 9907--01; *SR20DE.AT.CVT; ｶﾝﾚｲﾁ ｼﾖｳ |
0122100381 |
US $7.91 |
||
|
23302
|
23302
23302-4J606 Yoke Assy9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23302-4J606 |
US $211.68 |
||
|
23302
|
23302
23302-53J16 Yoke Assy9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23302-53J16 |
US $233.28 |
||
|
23310
|
23310
23310-4J606 Armature Assy9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23310-4J606 |
from US $272.82 |
||
|
23310
|
23310
23310-53J20 Armature Assy9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23310-53J20 |
US $325.68 |
||
|
23318
|
23318
23318-4J606 Case Assy-Gear9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23318-4J606 |
US $111.60 |
||
|
23318
|
23318
23318-4J611 Case Assy-Gear9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23318-4J611 |
US $111.60 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23319-97E00 |
US $11.66 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23321
|
23321
233200M300 Washer Set-Thrust9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
233200M300 |
US $6.34 |
||
|
23321
|
23321
23460-M8011 Washer Set-Thrust9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23460-M8011 |
US $7.92 |
||
|
23322
|
23322
23322-4J606 Lever Set-Shift9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23322-4J606 |
from US $19.30 |
||
|
23322
|
23322
23322-53J15 Lever Set-Shift9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23322-53J15 |
US $21.17 |
||
|
23333
|
23333
23333-1P100 Spring-Brush9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-1P100 |
US $6.34 |
||
|
23333
|
23333
23333M1510 Spring-Brush9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23333
|
23333
23333-1P100 Spring-Brush9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23333-1P100 |
US $6.34 |
||
|
23333
|
23333
23333M1510 Spring-Brush9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23333M1510 |
US $2.74 |
||
|
23337
|
23337
23337-4J606 Cover Assy-Rear9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23337-4J606 |
US $47.23 |
||
|
23337
|
23337
23337-53J10 Cover Assy-Rear9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23337-53J10 |
US $46.94 |
||
|
23337
|
23337
23340-M4900 Bolt-Through9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340-M8010 Bolt-Through9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M8010 Bolt-Through9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23340-M8010 |
US $4.18 |
||
|
23338
|
23338
23338-M8011 Metal-Rear Cover9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23338-M8011 |
US $5.76 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-53J10 Switch Assy-Magnetic9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23343-53J10 |
US $126.43 |
||
|
23343
|
23343
23343-77A01 Switch Assy-Magnetic9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23343-77A01 |
US $168.48 |
||
|
23354
|
23354
23354-T5000 Clutch Assy9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23354-T5000 |
US $298.78 |
||
|
23378
|
23378
23378-1E400 Holder Assy-Brush9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-1E400 |
US $54.43 |
||
| replacement | |||||
|
23378
|
23378
23378-AM60A Holder Assy-Brush9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23378-AM60A |
from US $54.43 |
||
|
23378
|
23378
23378-M8011 Holder Assy-Brush9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23378-M8011 |
from US $37.87 |
||
|
23379
|
23379
23379-1P100 Brush-Minus9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23379-1P100 |
US $5.62 |
||
|
23379
|
23379
23380M8311 Brush-Minus9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23380M8311 |
US $11.09 |
||
|
23380
|
23380
23380-1E400 Brush-Plus9811--01 ~ 9907--01; *SR20DE.AT.CVT; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23380-1E400 |
US $15.98 |
||
|
23380
|
23380
23380M8310 Brush-Plus9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23380M8310 |
US $9.36 |
||
|
23390
|
23390
23390-4J600 Bolt9811--01 ~ 9907--01; *SR20DE.AT.CVT; ｶﾝﾚｲﾁ ｼﾖｳ |
23390-4J600 |
US $2.74 |
||
|
23465
|
23465
23465-42L10 Stopper Set-Pinion9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23465-42L10 |
US $11.09 |
||
|
23480
|
23480
23480-M0110 Screw Set9811--01 ~ 0001--01; SR20DE.AT.CVT; ﾐﾂﾋﾞｼ |
23480-M0110 |
US $9.36 |
||
