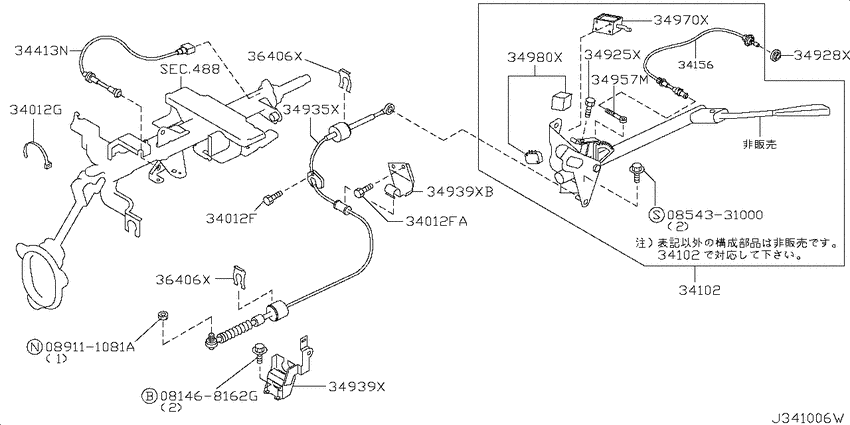

Transmission control & linkage (2000-09-01 ~ ; SR20DE) Diagram Nissan R`NESSA
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT.CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081468162G
|
081468162G
081468162G Bolt-hexagon |
081468162G |
US $0.85 |
||
|
0854331000
|
0854331000
08543-31000
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-31000 |
— | ||
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
34012F
|
34012F
01456-00113 Bolt9811--01 ~ 0001--01; SR20DE.AT.CVT |
01456-00113 |
US $2.45 |
||
|
34012F
|
34012F
01456-00113 Bolt9811--01 ~ 0001--01; SR20DE.AT.CVT |
01456-00113 |
US $2.45 |
||
|
34012FA
|
34012FA
01456-00113 Bolt9811--01 ~ 0001--01; SR20DE.AT.CVT |
01456-00113 |
US $2.45 |
||
|
34012G
|
34012G
2421633G00 Band-Harness, Transfer Switch9811--01 ~ 9907--01; SR20DE.AT.CVT |
2421633G00 |
from US $2.09 |
||
|
34012G
|
34012G
24216-S5802 Clip9907--01 ~ 0001--01; SR20DE.AT.CVT |
24216-S5802 |
US $4.18 |
||
|
34102
|
34102
34101-5V510 Device Assy-Transmission Control9811--01 ~ 0001--01; SR20DE.AT.CVT |
34101-5V510 |
US $627.29 |
||
|
34102
|
34102
34101-6V510 Device Assy-Transmission Control0001--01 ~ ; *SR20DE |
34101-6V510 |
US $627.29 |
||
|
34102
|
34102
34101-6V515 Device Assy-Transmission Control0001--01 ~ ; SR20DE |
34101-6V515 |
US $627.29 |
||
|
34102
|
34102
34101-5V510 Device Assy-Transmission Control9811--01 ~ 0001--01; SR20DE.AT.CVT |
34101-5V510 |
US $627.29 |
||
|
34102
|
34102
34101-6V510 Device Assy-Transmission Control0001--01 ~ ; *SR20DE |
34101-6V510 |
US $627.29 |
||
|
34102
|
34102
34101-6V515 Device Assy-Transmission Control0001--01 ~ ; SR20DE |
34101-6V515 |
US $627.29 |
||
|
34156
|
34156
341565V000 Cable Assy-Release0001--01 ~ ; SR20DE |
341565V000 |
US $31.68 |
||
|
34413N
|
34413N
349085V005 Cable Assy-Control9811--01 ~ 0001--01; SR20DE.AT.CVT |
349085V005 |
US $24.34 |
||
|
34925X
|
34925X
34925-5V000 Screw9907--01 ~ 0001--01; SR20DE.AT.CVT |
34925-5V000 |
US $1.73 |
||
|
34925X
|
34925X
34925-64J00 Screw9811--01 ~ 9907--01; SR20DE.AT.CVT |
34925-64J00 |
US $2.45 |
||
| replacement | |||||
|
34925X
|
34925X
34925-EB30A Screw9811--01 ~ 9907--01; SR20DE.AT.CVT |
34925-EB30A |
US $1.73 |
||
|
34928X
|
34928X
34928-5V000 Finisher-Knob9811--01 ~ 0001--01; SR20DE.AT.CVT |
34928-5V000 |
US $6.05 |
||
|
34935X
|
34935X
34935-5V500 Cable Assy-Control9811--01 ~ 0001--01; SR20DE.AT.CVT |
34935-5V500 |
US $143.57 |
||
|
34939X
|
34939X
34939-5V500 Bracket-Cable Mounting9811--01 ~ 0001--01; SR20DE.AT.CVT |
34939-5V500 |
US $11.38 |
||
|
34939X
|
34939X
34939-5V020 Bracket-Cable Mounting9811--01 ~ 0001--01; SR20DE.AT.CVT |
34939-5V020 |
US $11.38 |
||
|
34939XB
|
34939XB
34939-5V020 Bracket-Cable Mounting9811--01 ~ 0001--01; SR20DE.AT.CVT |
34939-5V020 |
US $11.38 |
||
|
34957M
|
34957M
34957-VE000 Rod-Key Inter Lock0001--01 ~ ; SR20DE |
34957-VE000 |
US $5.18 |
||
|
34970X
|
34970X
34970-5V000 Solenoid Assy-Select Lock9811--01 ~ 0001--01; SR20DE.AT.CVT |
34970-5V000 |
US $84.67 |
||
|
34980X
|
34980X
34980-5V000 Switch Assy-Parking Position0001--01 ~ ; SR20DE |
34980-5V000 |
US $46.37 |
||
|
34980X
|
34980X
349805V300 Switch Assy-Parking Position9811--01 ~ 0001--01; SR20DE.AT.CVT |
349805V300 |
US $50.98 |
||
|
36406X
|
36406X
36406-54J00 Plate-Lock9811--01 ~ 0001--01; SR20DE.AT.CVT |
36406-54J00 |
US $4.18 |
||
|
36406X
|
36406X
36406-54J00 Plate-Lock9811--01 ~ 0001--01; SR20DE.AT.CVT |
36406-54J00 |
US $4.18 |
||
|
