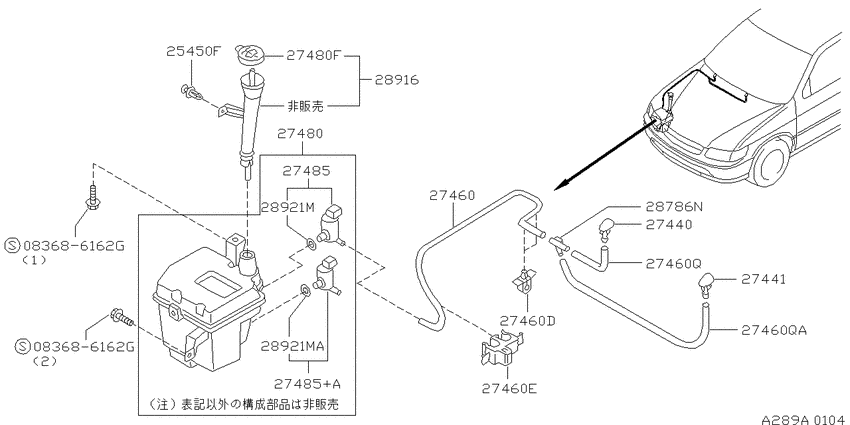

Windshield washer (2000-01-01 ~ ; フロント ウォッシャー; W) Diagram Nissan R`NESSA
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- AT.CVT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
25450F
|
25450F
6686001W01 Clip9811--01 ~ 9907--01; W |
6686001W01 |
US $0.97 |
||
|
27440
|
27440
28930-5V000 Nozzle Assy-Washer, No 19811--01 ~ 9907--01; W |
28930-5V000 |
US $21.89 |
||
|
27441
|
27441
28931-5V000 Nozzle Assy-Washer, No 29811--01 ~ 9907--01; W |
28931-5V000 |
US $21.89 |
||
|
27460
|
27460
28940-5V000
Hose-Washer
9811--01 ~ 9907--01; W; L=1820 S/#B8940-89910 |
28940-5V000 |
— | ||
|
27460
|
27460
01651-00601 GROMMET9811--01 ~ 9907--01; W |
01651-00601 |
US $2.45 |
||
|
27460
|
27460
2894530Y10 Clip9811--01 ~ 9907--01; W |
2894530Y10 |
US $4.30 |
||
|
27460
|
27460
2894501E00 CLIP0001--01 ~ ; W |
2894501E00 |
US $0.86 |
||
|
27460
|
27460
28945-5V000 Clip9811--01 ~ 9907--01; W |
28945-5V000 |
US $5.04 |
||
|
27460
|
27460
289451P100 Clip9811--01 ~ 9907--01; W |
289451P100 |
US $3.60 |
||
|
27460
|
27460
28940-41L60 Hose-Washer9811--01 ~ 9907--01; W; L=210 S/#B8940-89910 |
28940-41L60 |
US $18 |
||
|
27460
|
27460
28940-56E11 HOSE-WASHER9811--01 ~ 9907--01; W; L=580 S/#B8940-89910 |
28940-56E11 |
US $12.82 |
||
|
27460
|
27460
B8940-89910
Hose-Washer
9811--01 ~ 9907--01; W; L=380 ﾆ ｶﾂﾄｼﾃｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer9811--01 ~ 9907--01; W; L=380 ﾆ ｶﾂﾄｼﾃｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460D
|
27460D
2894530Y10 Clip9811--01 ~ 9907--01; W |
2894530Y10 |
US $4.30 |
||
|
27460D
|
27460D
2894501E00 CLIP0001--01 ~ ; W |
2894501E00 |
US $0.86 |
||
|
27460D
|
27460D
28945-5V000 Clip9811--01 ~ 9907--01; W |
28945-5V000 |
US $5.04 |
||
|
27460E
|
27460E
289451P100 Clip9811--01 ~ 9907--01; W |
289451P100 |
US $3.60 |
||
|
27460Q
|
27460Q
28940-41L60 Hose-Washer9811--01 ~ 9907--01; W; L=210 S/#B8940-89910 |
28940-41L60 |
US $18 |
||
|
27460Q
|
27460Q
28940-56E11 HOSE-WASHER9811--01 ~ 9907--01; W; L=580 S/#B8940-89910 |
28940-56E11 |
US $12.82 |
||
|
27460QA
|
27460QA
28940-56E11 HOSE-WASHER9811--01 ~ 9907--01; W; L=580 S/#B8940-89910 |
28940-56E11 |
US $12.82 |
||
|
27480
|
27480
289100E500 Tank Assy-Windshield Washer9811--01 ~ 9907--01; W.(SR20DE+KA24DE) |
289100E500 |
US $164.16 |
||
|
27480
|
27480
28910-5V000 Tank Assy-Windshield Washer9811--01 ~ 9907--01; *W.KA24DE +*W.(G/LTD+X/LTD); ﾌﾛﾝﾄｴｱﾛﾊﾞﾝﾊﾟｰ ｼﾖｳ |
28910-5V000 |
US $210.24 |
||
|
27480
|
27480
28913-5V000 Cap-Windshield Washer Tank9811--01 ~ 9907--01; W |
28913-5V000 |
US $3.60 |
||
|
27480F
|
27480F
28913-5V000 Cap-Windshield Washer Tank9811--01 ~ 9907--01; W |
28913-5V000 |
US $3.60 |
||
|
27485
|
27485
2892050Y00 Pump Assy-Washer9811--01 ~ 9907--01; W |
2892050Y00 |
from US $26.76 |
||
|
27485
|
27485
2892050Y10 Pump Assy-Washer9811--01 ~ 9907--01; W.(SR20DE+KA24DE) |
2892050Y10 |
from US $40.06 |
||
|
27485+A
|
27485+A
2892050Y10 Pump Assy-Washer9811--01 ~ 9907--01; W.(SR20DE+KA24DE) |
2892050Y10 |
from US $40.06 |
||
|
28786N
|
28786N
2893717V00 Connector-Hose9811--01 ~ 9907--01; W |
2893717V00 |
from US $5.27 |
||
|
28916
|
28916
28915-5V000 Inlet-Washer Tank9811--01 ~ 9907--01; W |
28915-5V000 |
US $17.57 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor9811--01 ~ 9907--01; W; ﾌﾛﾝﾄ ﾓ-ﾀ- ﾖｳ |
2892150Y00 |
US $4.30 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor9811--01 ~ 9907--01; W; ﾘﾔ ﾓ-ﾀ- ﾖｳ |
2892150Y00 |
US $4.30 |
||
|
28921MA
|
28921MA
2892150Y00 Packing-Washer Motor9811--01 ~ 9907--01; W; ﾘﾔ ﾓ-ﾀ- ﾖｳ |
2892150Y00 |
US $4.30 |
||
