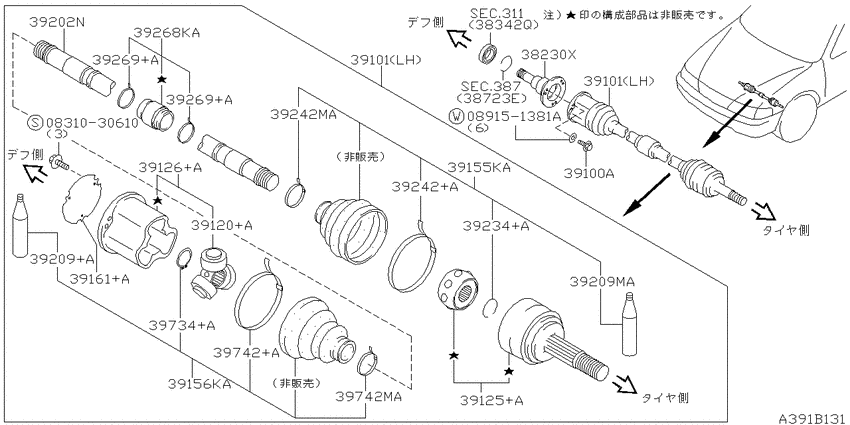

Front drive shaft (ff) (1997-10-01 ~ ; 左 用; SR20DET +KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DET
- drive
- 4WD
- transmission
- AT.R4
- grade
- GT/T
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831030610
|
0831030610
08310-30610
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-30610 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
38230X
|
38230X
38230-64E05 SHAFT ASSY-SIDE,DIFFERENTIAL9710--01 ~ ; SR20DET +KA24DE |
38230-64E05 |
US $198.72 |
||
|
387
|
Front differential (transfer)
387
|
||||
|
39100A
|
39100A
39106-64E00 BOLT9710--01 ~ ; SR20DET +KA24DE |
39106-64E00 |
US $2.45 |
||
| replacement | |||||
|
39100A
|
39100A
39106-64E0A Bolt9710--01 ~ ; SR20DET +KA24DE |
39106-64E0A |
US $2.45 |
||
|
39101
|
39101
39101-5V210 Shaft Assy-Front Drive, Lh9710--01 ~ 9907--01; SR20DET +KA24DE |
39101-5V210 |
US $1,217.76 |
||
|
39101
|
39101
39101-5V270 Shaft Assy-Front Drive, Lh9908--01 ~ ; SR20DET +KA24DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-5V270 |
US $1,217.76 |
||
|
39101
|
39101
39101-5V210 Shaft Assy-Front Drive, Lh9710--01 ~ 9907--01; SR20DET +KA24DE |
39101-5V210 |
US $1,217.76 |
||
|
39101
|
39101
39101-5V270 Shaft Assy-Front Drive, Lh9908--01 ~ ; SR20DET +KA24DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39101-5V270 |
US $1,217.76 |
||
|
39120+A
|
39120+A
39720-10V10 Spider Assy-Slide Joint9710--01 ~ 9907--01; SR20DET +KA24DE; ﾎﾞ-ﾙ ｶﾞｲｹｲ D=34.10MM |
39720-10V10 |
US $78.19 |
||
|
39120+A
|
39120+A
39720-10V11 Spider Assy-Slide Joint9710--01 ~ 9907--01; SR20DET +KA24DE; ﾎﾞ-ﾙ ｶﾞｲｹｲ D=34.17MM |
39720-10V11 |
US $76.46 |
||
|
39120+A
|
39120+A
39720-10V12 Spider Assy-Slide Joint9710--01 ~ 9907--01; SR20DET +KA24DE; ﾎﾞ-ﾙ ｶﾞｲｹｲ D=34.24MM |
39720-10V12 |
US $76.46 |
||
|
39125+A
|
39125+A
39211-5V410 Joint Assy-Outer9710--01 ~ 9908--01; SR20DET +KA24DE |
39211-5V410 |
US $505.51 |
||
|
39125+A
|
39125+A
39211-5V471 Joint Assy-Outer9908--01 ~ ; SR20DET +KA24DE |
39211-5V471 |
US $560.74 |
||
|
39126+A
|
39126+A
39711-64E00 JOINT ASSY-INNER9710--01 ~ ; SR20DET +KA24DE |
39711-64E00 |
US $259.20 |
||
|
39155KA
|
39155KA
392410M625
Repair Kit-Dust Boot, Outer
9710--01 ~ 9908--01; SR20DET +KA24DE |
392410M625 |
— | ||
| replacement | |||||
|
39155KA
|
39155KA
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9908--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39155KA
|
39155KA
392415V125
Repair Kit-Dust Boot, Outer
9908--01 ~ 0001--01; SR20DET +KA24DE |
392415V125 |
— | ||
| replacement | |||||
|
39155KA
|
39155KA
C9BDA-5V12H REPAIR KIT-DUST9908--01 ~ 0001--01; SR20DET +KA24DE |
C9BDA-5V12H |
from US $51.32 |
||
|
39155KA
|
39155KA
392418V125 Repair Kit-Dust Boot, Outer0001--01 ~ ; SR20DET +KA24DE |
392418V125 |
US $67.82 |
||
|
39156KA
|
39156KA
3974105U28 Repair Kit-Dust B00T, Inner9710--01 ~ ; SR20DET +KA24DE |
3974105U28 |
US $92.35 |
||
|
39161+A
|
39161+A
39715-64E00 PLUG9710--01 ~ ; SR20DET +KA24DE |
39715-64E00 |
US $9.65 |
||
|
39202N
|
39202N
39205-5V250 Shaft-Front Drive, Lh9710--01 ~ 9908--01; SR20DET +KA24DE |
39205-5V250 |
US $294.53 |
||
|
39202N
|
39202N
39205-5V280 Shaft-Front Drive, Lh9908--01 ~ ; SR20DET +KA24DE |
39205-5V280 |
US $294.53 |
||
|
39209+A
|
39209+A
39709-55E26 GREASE9710--01 ~ 9811--01; SR20DET +KA24DE |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209+A
|
39209+A
C9709-2U626 Grease-Inner9710--01 ~ 9811--01; SR20DET +KA24DE |
C9709-2U626 |
US $36.72 |
||
|
39209MA
|
39209MA
39209-01A26
Grease-Outer
9710--01 ~ 9907--01; SR20DET +KA24DE |
39209-01A26 |
— | ||
| replacement | |||||
|
39209MA
|
39209MA
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9907--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39209MA
|
39209MA
C92092U620 Grease-Outer9908--01 ~ ; SR20DET +KA24DE; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39234+A
|
39234+A
3923401E00 RING-SNAP,BEARING RACE9710--01 ~ ; SR20DET +KA24DE |
3923401E00 |
from US $1.22 |
||
|
39242+A
|
39242+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9710--01 ~ 9908--01; SR20DET +KA24DE |
3924201E00 |
US $4.25 |
||
|
39242+A
|
39242+A
392425V000 Band-Boot, Drive Shaft Outer9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V000 |
US $12.09 |
||
|
39242+A
|
39242+A
39242-8V000 Band-Boot, Drive Shaft Outer0001--01 ~ ; SR20DET +KA24DE |
39242-8V000 |
US $4.46 |
||
|
39242MA
|
39242MA
39242-01E12 BAND-RUBBER BOOT,SHAFT9710--01 ~ 9908--01; SR20DET +KA24DE |
39242-01E12 |
US $4.61 |
||
|
39242MA
|
39242MA
392425V010 Band-Boot, Drive Shaft9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V010 |
US $12.09 |
||
|
39242MA
|
39242MA
39242-8V010 Band-Boot, Drive Shaft0001--01 ~ ; SR20DET +KA24DE |
39242-8V010 |
US $4.46 |
||
|
39268KA
|
39268KA
39268-55E27 DAMPER KIT-DYNAMIC,FRONT DRIVE SHAFT9710--01 ~ ; SR20DET +KA24DE |
39268-55E27 |
US $48.38 |
||
| replacement | |||||
|
39268KA
|
39268KA
39268-55E28
Damper kit-dynamic,front drive shaft
9710--01 ~ ; SR20DET +KA24DE |
39268-55E28 |
— | ||
|
39269+A
|
39269+A
3926911A10 Band-Damper9710--01 ~ ; SR20DET +KA24DE |
3926911A10 |
US $9.50 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper9710--01 ~ ; SR20DET +KA24DE |
3926911A10 |
US $9.50 |
||
|
39734+A
|
39734+A
3970841W00 Ring-Snap, C9710--01 ~ ; SR20DET +KA24DE |
3970841W00 |
US $0.92 |
||
|
39742+A
|
39742+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9710--01 ~ ; SR20DET +KA24DE |
3924201E00 |
US $4.25 |
||
|
39742MA
|
39742MA
39742W1205 Band-Dust Cover, Shaft9710--01 ~ ; SR20DET +KA24DE |
39742W1205 |
US $8.90 |
||
