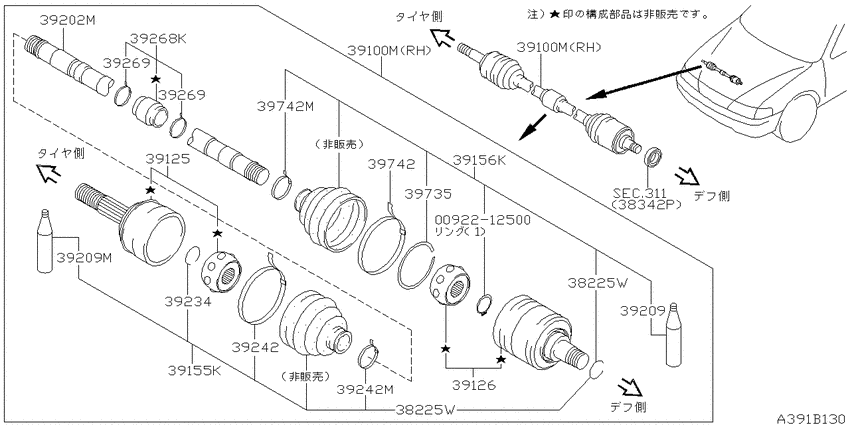

Front drive shaft (ff) (1997-10-01 ~ ; 右 用; SR20DET +KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DET
- drive
- 4WD
- transmission
- AT.R4
- grade
- GT/T
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092212500
|
0092212500
00922-12500 RING-SNAP,B |
00922-12500 |
US $2.45 |
||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
38225W
|
38225W
3822530R00 Circlip-Side Gear9710--01 ~ ; SR20DET +KA24DE |
3822530R00 |
US $1.73 |
||
|
38225W
|
38225W
3822530R00 Circlip-Side Gear9710--01 ~ ; SR20DET +KA24DE |
3822530R00 |
US $1.73 |
||
|
39100M
|
39100M
39100-5V210 Shaft Assy-Front Drive, Rh9710--01 ~ 9907--01; SR20DET +KA24DE |
39100-5V210 |
US $1,217.76 |
||
|
39100M
|
39100M
39100-5V270 Shaft Assy-Front Drive, Rh9908--01 ~ ; SR20DET +KA24DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39100-5V270 |
US $1,217.76 |
||
|
39100M
|
39100M
39100-5V210 Shaft Assy-Front Drive, Rh9710--01 ~ 9907--01; SR20DET +KA24DE |
39100-5V210 |
US $1,217.76 |
||
|
39100M
|
39100M
39100-5V270 Shaft Assy-Front Drive, Rh9908--01 ~ ; SR20DET +KA24DE; ｼﾞｭｼ ﾌﾞｰﾂ ﾀｲﾌﾟ |
39100-5V270 |
US $1,217.76 |
||
|
39125
|
39125
39211-5V410 Joint Assy-Outer9710--01 ~ 9908--01; SR20DET +KA24DE |
39211-5V410 |
US $505.51 |
||
|
39125
|
39125
39211-5V471 Joint Assy-Outer9908--01 ~ ; SR20DET +KA24DE |
39211-5V471 |
US $560.74 |
||
|
39125
|
39125
39211-5V410 Joint Assy-Outer9710--01 ~ 9908--01; SR20DET +KA24DE |
39211-5V410 |
US $505.51 |
||
|
39125
|
39125
39211-5V471 Joint Assy-Outer9908--01 ~ ; SR20DET +KA24DE |
39211-5V471 |
US $560.74 |
||
|
39126
|
39126
39711-55E00 JOINT ASSY-INNER9710--01 ~ ; SR20DET +KA24DE |
39711-55E00 |
US $307.27 |
||
|
39126
|
39126
39711-64E00 JOINT ASSY-INNER9710--01 ~ ; SR20DET +KA24DE |
39711-64E00 |
US $259.20 |
||
|
39155K
|
39155K
392410M625
Repair Kit-Dust Boot, Outer
9710--01 ~ 9908--01; SR20DET +KA24DE |
392410M625 |
— | ||
| replacement | |||||
|
39155K
|
39155K
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9908--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39155K
|
39155K
392415V125
Repair Kit-Dust Boot, Outer
9908--01 ~ 0001--01; SR20DET +KA24DE |
392415V125 |
— | ||
| replacement | |||||
|
39155K
|
39155K
C9BDA-5V12H REPAIR KIT-DUST9908--01 ~ 0001--01; SR20DET +KA24DE |
C9BDA-5V12H |
from US $51.43 |
||
|
39155K
|
39155K
392418V125 Repair Kit-Dust Boot, Outer0001--01 ~ ; SR20DET +KA24DE |
392418V125 |
from US $55.17 |
||
|
39155K
|
39155K
392410M625
Repair Kit-Dust Boot, Outer
9710--01 ~ 9908--01; SR20DET +KA24DE |
392410M625 |
— | ||
| replacement | |||||
|
39155K
|
39155K
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9908--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39155K
|
39155K
392415V125
Repair Kit-Dust Boot, Outer
9908--01 ~ 0001--01; SR20DET +KA24DE |
392415V125 |
— | ||
| replacement | |||||
|
39155K
|
39155K
C9BDA-5V12H REPAIR KIT-DUST9908--01 ~ 0001--01; SR20DET +KA24DE |
C9BDA-5V12H |
from US $51.43 |
||
|
39155K
|
39155K
392418V125 Repair Kit-Dust Boot, Outer0001--01 ~ ; SR20DET +KA24DE |
392418V125 |
from US $55.17 |
||
|
39156K
|
39156K
3974155E29 REPAIR KIT-DUST B00T,INNER9710--01 ~ ; SR20DET +KA24DE |
3974155E29 |
US $82.08 |
||
|
39156K
|
39156K
3974105U28 Repair Kit-Dust B00T, Inner9710--01 ~ ; SR20DET +KA24DE |
3974105U28 |
US $92.35 |
||
|
39202M
|
39202M
39204-5V250 Shaft-Front Drive, Rh9710--01 ~ 9908--01; SR20DET +KA24DE |
39204-5V250 |
US $294.53 |
||
|
39202M
|
39202M
39204-5V280 Shaft-Front Drive, Rh9908--01 ~ ; SR20DET +KA24DE |
39204-5V280 |
US $294.53 |
||
|
39209
|
39209
39709-55E26 GREASE9710--01 ~ 9907--01; SR20DET +KA24DE |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209
|
39209
C9709-2U626 Grease-Inner9710--01 ~ 9907--01; SR20DET +KA24DE |
C9709-2U626 |
US $36.72 |
||
|
39209
|
39209
39709-55E26 GREASE9710--01 ~ 9811--01; SR20DET +KA24DE |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209
|
39209
C9709-2U626 Grease-Inner9710--01 ~ 9811--01; SR20DET +KA24DE |
C9709-2U626 |
US $36.72 |
||
|
39209
|
39209
39209-01A26
Grease-Outer
9710--01 ~ 9907--01; SR20DET +KA24DE |
39209-01A26 |
— | ||
| replacement | |||||
|
39209
|
39209
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9907--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39209
|
39209
C92092U620 Grease-Outer9908--01 ~ ; SR20DET +KA24DE; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39209
|
39209
39209-01A26
Grease-Outer
9710--01 ~ 9907--01; SR20DET +KA24DE |
39209-01A26 |
— | ||
| replacement | |||||
|
39209
|
39209
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9907--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39209
|
39209
C92092U620 Grease-Outer9908--01 ~ ; SR20DET +KA24DE; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39209
|
39209
39209-01A26
Grease-Outer
9710--01 ~ 9907--01; SR20DET +KA24DE |
39209-01A26 |
— | ||
| replacement | |||||
|
39209
|
39209
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9907--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39209
|
39209
39709-55E26 GREASE9710--01 ~ 9907--01; SR20DET +KA24DE |
39709-55E26 |
US $33.70 |
||
| replacement | |||||
|
39209
|
39209
C9709-2U626 Grease-Inner9710--01 ~ 9907--01; SR20DET +KA24DE |
C9709-2U626 |
US $36.72 |
||
|
39209M
|
39209M
39209-01A26
Grease-Outer
9710--01 ~ 9907--01; SR20DET +KA24DE |
39209-01A26 |
— | ||
| replacement | |||||
|
39209M
|
39209M
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9907--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39209M
|
39209M
C92092U620 Grease-Outer9908--01 ~ ; SR20DET +KA24DE; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39209M
|
39209M
39209-01A26
Grease-Outer
9710--01 ~ 9907--01; SR20DET +KA24DE |
39209-01A26 |
— | ||
| replacement | |||||
|
39209M
|
39209M
C9BDA-0M62H C9BDA0M62H9710--01 ~ 9907--01; SR20DET +KA24DE |
C9BDA-0M62H |
US $91.35 |
||
|
39209M
|
39209M
C92092U620 Grease-Outer9908--01 ~ ; SR20DET +KA24DE; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39234
|
39234
3923401E00 RING-SNAP,BEARING RACE9710--01 ~ ; SR20DET +KA24DE |
3923401E00 |
from US $1.22 |
||
|
39234
|
39234
3923401E00 RING-SNAP,BEARING RACE9710--01 ~ ; SR20DET +KA24DE |
3923401E00 |
from US $1.22 |
||
|
39242
|
39242
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9710--01 ~ 9908--01; SR20DET +KA24DE |
3924201E00 |
US $4.25 |
||
|
39242
|
39242
392425V000 Band-Boot, Drive Shaft Outer9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V000 |
US $12.09 |
||
|
39242
|
39242
39242-8V000 Band-Boot, Drive Shaft Outer0001--01 ~ ; SR20DET +KA24DE |
39242-8V000 |
US $4.46 |
||
|
39242
|
39242
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9710--01 ~ 9908--01; SR20DET +KA24DE |
3924201E00 |
US $4.25 |
||
|
39242
|
39242
392425V000 Band-Boot, Drive Shaft Outer9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V000 |
US $12.09 |
||
|
39242
|
39242
39242-8V000 Band-Boot, Drive Shaft Outer0001--01 ~ ; SR20DET +KA24DE |
39242-8V000 |
US $4.46 |
||
|
39242
|
39242
39242-01E12 BAND-RUBBER BOOT,SHAFT9710--01 ~ 9908--01; SR20DET +KA24DE |
39242-01E12 |
US $4.61 |
||
|
39242
|
39242
392425V010 Band-Boot, Drive Shaft9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V010 |
US $12.09 |
||
|
39242
|
39242
39242-8V010 Band-Boot, Drive Shaft0001--01 ~ ; SR20DET +KA24DE |
39242-8V010 |
US $4.46 |
||
|
39242
|
39242
39242-01E12 BAND-RUBBER BOOT,SHAFT9710--01 ~ 9908--01; SR20DET +KA24DE |
39242-01E12 |
US $4.61 |
||
|
39242
|
39242
392425V010 Band-Boot, Drive Shaft9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V010 |
US $12.09 |
||
|
39242
|
39242
39242-8V010 Band-Boot, Drive Shaft0001--01 ~ ; SR20DET +KA24DE |
39242-8V010 |
US $4.46 |
||
|
39242M
|
39242M
39242-01E12 BAND-RUBBER BOOT,SHAFT9710--01 ~ 9908--01; SR20DET +KA24DE |
39242-01E12 |
US $4.61 |
||
|
39242M
|
39242M
392425V010 Band-Boot, Drive Shaft9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V010 |
US $12.09 |
||
|
39242M
|
39242M
39242-8V010 Band-Boot, Drive Shaft0001--01 ~ ; SR20DET +KA24DE |
39242-8V010 |
US $4.46 |
||
|
39242M
|
39242M
39242-01E12 BAND-RUBBER BOOT,SHAFT9710--01 ~ 9908--01; SR20DET +KA24DE |
39242-01E12 |
US $4.61 |
||
|
39242M
|
39242M
392425V010 Band-Boot, Drive Shaft9908--01 ~ 0001--01; SR20DET +KA24DE |
392425V010 |
US $12.09 |
||
|
39242M
|
39242M
39242-8V010 Band-Boot, Drive Shaft0001--01 ~ ; SR20DET +KA24DE |
39242-8V010 |
US $4.46 |
||
|
39268K
|
39268K
39268-62Y86 Damper Kit-Dynamic, Front Drive Shaft9710--01 ~ ; SR20DET +KA24DE |
39268-62Y86 |
US $34.56 |
||
|
39268K
|
39268K
39268-55E27 DAMPER KIT-DYNAMIC,FRONT DRIVE SHAFT9710--01 ~ ; SR20DET +KA24DE |
39268-55E27 |
US $48.38 |
||
| replacement | |||||
|
39268K
|
39268K
39268-55E28
Damper kit-dynamic,front drive shaft
9710--01 ~ ; SR20DET +KA24DE |
39268-55E28 |
— | ||
|
39269
|
39269
3926911A10 Band-Damper9710--01 ~ ; SR20DET +KA24DE |
3926911A10 |
US $9.50 |
||
|
39269
|
39269
3926911A10 Band-Damper9710--01 ~ ; SR20DET +KA24DE |
3926911A10 |
US $9.50 |
||
|
39269
|
39269
3926911A10 Band-Damper9710--01 ~ ; SR20DET +KA24DE |
3926911A10 |
US $9.50 |
||
|
39269
|
39269
3926911A10 Band-Damper9710--01 ~ ; SR20DET +KA24DE |
3926911A10 |
US $9.50 |
||
|
39735
|
39735
39735-03P00 Ring-Stopper9710--01 ~ ; SR20DET +KA24DE |
39735-03P00 |
US $2.45 |
||
|
39742
|
39742
3974203P00 Band-Boot, Drive Shaft Inner9710--01 ~ ; SR20DET +KA24DE |
3974203P00 |
US $9.69 |
||
|
39742
|
39742
3924201E00 BAND-BOOT,DRIVE SHAFT INNER9710--01 ~ ; SR20DET +KA24DE |
3924201E00 |
US $4.25 |
||
|
39742
|
39742
39242-01E10 BAND-BOOT,DRIVE SHAFT9710--01 ~ ; SR20DET +KA24DE |
39242-01E10 |
US $4.64 |
||
|
39742
|
39742
39742W1205 Band-Dust Cover, Shaft9710--01 ~ ; SR20DET +KA24DE |
39742W1205 |
US $8.90 |
||
|
39742M
|
39742M
39242-01E10 BAND-BOOT,DRIVE SHAFT9710--01 ~ ; SR20DET +KA24DE |
39242-01E10 |
US $4.64 |
||
|
39742M
|
39742M
39742W1205 Band-Dust Cover, Shaft9710--01 ~ ; SR20DET +KA24DE |
39742W1205 |
US $8.90 |
||
