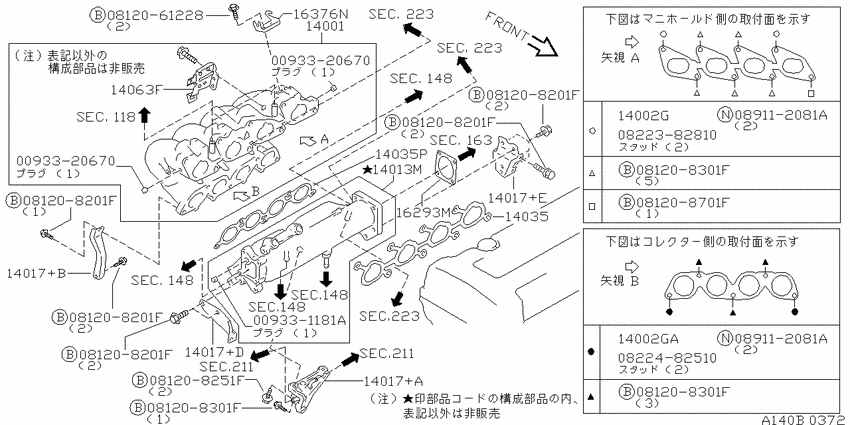

Manifold (1997-10-01 ~ ; インテーク パーツ; SR20DET) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DET
- drive
- 4WD
- transmission
- AT.R4
- grade
- GT/T
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331181A
|
009331181A
00933-1181A Plug-Welch |
00933-1181A |
US $0.48 |
||
|
0093320670
|
0093320670
00933-20670
ﾌﾟﾗｸﾞ
|
00933-20670 |
— | ||
|
0093320670
|
0093320670
00933-20670
ﾌﾟﾗｸﾞ
|
00933-20670 |
— | ||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
081208201F
|
081208201F
081208201F
Bolt-hexagon
|
081208201F |
— | ||
|
081208251F
|
081208251F
081208251F Bolt-hexagon |
081208251F |
from US $0.61 |
||
|
081208301F
|
081208301F
08120-8301F Bolt-hexagon |
08120-8301F |
from US $0.57 |
||
|
081208301F
|
081208301F
08120-8301F Bolt-hexagon |
08120-8301F |
from US $0.57 |
||
|
081208301F
|
081208301F
08120-8301F Bolt-hexagon |
08120-8301F |
from US $0.57 |
||
|
081208701F
|
081208701F
08120-8701F
Bolt-hexagon
|
08120-8701F |
— | ||
|
0822382810
|
0822382810
0822382810 STUD |
0822382810 |
from US $0.50 |
||
|
0822482510
|
0822482510
08224-82510
ｽﾀﾂﾄﾞ
|
08224-82510 |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
118
|
Crankcase ventilation
118
|
||||
|
14001
|
14001
14001-1E000 MANIFOLD ASSY-INTAKE9710--01 ~ ; SR20DET |
14001-1E000 |
US $295.94 |
||
|
14002G
|
14002G
01311-01361 WASHER-PLAIN9710--01 ~ ; SR20DET |
01311-01361 |
US $2.45 |
||
|
14002G
|
14002G
01311-01361 WASHER-PLAIN9710--01 ~ ; SR20DET |
01311-01361 |
US $2.45 |
||
|
14002GA
|
14002GA
01311-01361 WASHER-PLAIN9710--01 ~ ; SR20DET |
01311-01361 |
US $2.45 |
||
|
14013M
|
14013M
14010-79E00 COLLECTOR-INTAKE MANIFOLD9710--01 ~ ; SR20DET |
14010-79E00 |
US $162.72 |
||
|
14017+A
|
14017+A
14017-79E01 SUPPORT-MANIFOLD9710--01 ~ ; SR20DET |
14017-79E01 |
US $59.62 |
||
|
14017+B
|
14017+B
14017-5V400 Support-Manifold9710--01 ~ ; SR20DET |
14017-5V400 |
US $25.63 |
||
|
14017+D
|
14017+D
14017-53J11 Support-Manifold9710--01 ~ ; SR20DET |
14017-53J11 |
US $34.99 |
||
|
14017+E
|
14017+E
14017-58Y00 Support-Manifold9710--01 ~ ; SR20DET |
14017-58Y00 |
US $49.97 |
||
|
14035
|
14035
1403553J10 Gasket-Manifold9710--01 ~ 9811--01; SR20DET |
1403553J10 |
from US $6.73 |
||
|
14035
|
14035
1403253J00 Gasket-Intake Manifold9710--01 ~ 9811--01; SR20DET |
1403253J00 |
from US $3.87 |
||
|
14035P
|
14035P
1403253J00 Gasket-Intake Manifold9710--01 ~ 9811--01; SR20DET |
1403253J00 |
from US $3.87 |
||
|
14063F
|
14063F
16263-5V400 Bracket-Harness9811--01 ~ ; SR20DET |
16263-5V400 |
US $23.90 |
||
|
148
|
Secondary air system
148
|
||||
|
148
|
Secondary air system
148
|
||||
|
148
|
Secondary air system
148
|
||||
|
148
|
Secondary air system
148
|
||||
|
16293M
|
16293M
16175-79S70 Gasket-Throttle Chamber9710--01 ~ 0201--01; SR20DET |
16175-79S70 |
US $6.48 |
||
| replacement | |||||
|
16293M
|
16293M
1617579S71 Gasket-Throttle Chamber9710--01 ~ 0201--01; SR20DET |
1617579S71 |
from US $7.18 |
||
|
16293M
|
16293M
1617579S71 Gasket-Throttle Chamber0201--01 ~ ; SR20DET |
1617579S71 |
from US $7.18 |
||
|
163
|
Throttle chamber
163
|
||||
|
163
|
Throttle chamber
163
|
||||
|
16376N
|
16376N
16165-53J21 Bracket-Accelerator Cable9710--01 ~ ; SR20DET |
16165-53J21 |
US $15.26 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
