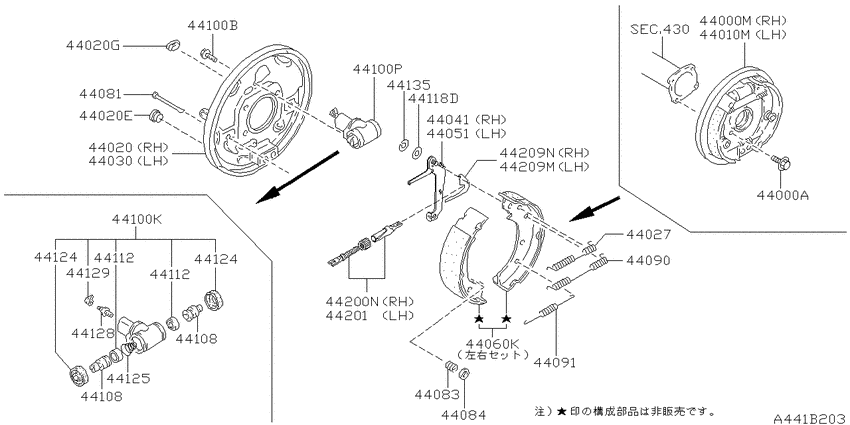

Rear brake (1997-10-01 ~ 2000-01-01; SR20DET +KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DET
- drive
- 4WD
- transmission
- AT.R4
- grade
- GT/T
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
430
|
Rear axle
430
|
||||
|
44000A
|
44000A
44005-5V200 Bolt9710--01 ~ 9808--01; SR20DET +KA24DE |
44005-5V200 |
US $2.45 |
||
|
44000A
|
44000A
44005-AD011 Bolt0001--01 ~ ; SR20DET +KA24DE |
44005-AD011 |
US $2.45 |
||
|
44000A
|
44000A
44005-AD310 Bolt9808--01 ~ 0001--01; SR20DET +KA24DE |
44005-AD310 |
US $2.45 |
||
|
44000M
|
44000M
44000-5V200 Brake Assy-Drum, Rear Rh9710--01 ~ 9808--01; SR20DET +KA24DE |
44000-5V200 |
US $423.38 |
||
|
44000M
|
44000M
44000-5V205 Brake Assy-Drum, Rear Rh0001--01 ~ ; SR20DET +KA24DE |
44000-5V205 |
US $393.65 |
||
|
44000M
|
44000M
44000-5V210 Brake Assy-Drum, Rear Rh9808--01 ~ 0001--01; SR20DET +KA24DE |
44000-5V210 |
US $423.38 |
||
|
44010M
|
44010M
44010-5V200 Brake Assy-Drum, Rear Lh9710--01 ~ 9808--01; SR20DET +KA24DE |
44010-5V200 |
US $423.38 |
||
|
44010M
|
44010M
44010-5V205 Brake Assy-Drum, Rear Lh0001--01 ~ ; SR20DET +KA24DE |
44010-5V205 |
US $393.65 |
||
|
44010M
|
44010M
44010-5V210 Brake Assy-Drum, Rear Lh9808--01 ~ 0001--01; SR20DET +KA24DE |
44010-5V210 |
US $423.38 |
||
|
44020
|
44020
44020-5V200 Plate Assy-Back, Rear Brake Rh9710--01 ~ 9808--01; SR20DET +KA24DE |
44020-5V200 |
US $165.60 |
||
|
44020
|
44020
44020-5V205 Plate Assy-Back, Rear Brake Rh0001--01 ~ ; SR20DET +KA24DE |
44020-5V205 |
US $180 |
||
|
44020
|
44020
44020-AD310 Plate Assy-Back, Rear Brake Rh9808--01 ~ 0001--01; SR20DET +KA24DE |
44020-AD310 |
US $137.95 |
||
|
44020
|
44020
4109808G10 Plug9710--01 ~ ; SR20DET +KA24DE |
4109808G10 |
from US $1.81 |
||
|
44020
|
44020
4409801A00 Plug9710--01 ~ ; SR20DET +KA24DE |
4409801A00 |
from US $4.63 |
||
|
44020E
|
44020E
4109808G10 Plug9710--01 ~ ; SR20DET +KA24DE |
4109808G10 |
from US $1.81 |
||
|
44020G
|
44020G
4409801A00 Plug9710--01 ~ ; SR20DET +KA24DE |
4409801A00 |
from US $4.63 |
||
|
44027
|
44027
44214-0C710 Spring-Adjusting, Rear Brake9710--01 ~ ; SR20DET +KA24DE |
44214-0C710 |
from US $2.45 |
||
|
44030
|
44030
44030-5V200 Plate Assy-Back, Rear Brake Lh9710--01 ~ 9808--01; SR20DET +KA24DE |
44030-5V200 |
US $165.60 |
||
|
44030
|
44030
44030-5V205 Plate Assy-Back, Rear Brake Lh0001--01 ~ ; SR20DET +KA24DE |
44030-5V205 |
US $180 |
||
|
44030
|
44030
44030-AD310 Plate Assy-Back, Rear Brake Lh9808--01 ~ 0001--01; SR20DET +KA24DE |
44030-AD310 |
US $137.95 |
||
|
44041
|
44041
44041-0C710 Lever-Toggle, Rh9710--01 ~ 0001--01; SR20DET +KA24DE |
44041-0C710 |
US $50.54 |
||
|
44041
|
44041
44041-4N000 Lever-Toggle, Rh0001--01 ~ ; SR20DET +KA24DE |
44041-4N000 |
US $50.45 |
||
|
44051
|
44051
44051-0C710 Lever-Toggle, Lh9710--01 ~ 0001--01; SR20DET +KA24DE |
44051-0C710 |
US $42.34 |
||
|
44051
|
44051
44051-4N000 Lever-Toggle, Lh0001--01 ~ ; SR20DET +KA24DE |
44051-4N000 |
US $50.45 |
||
|
44060K
|
44060K
440604N025 Shoe Set-Rear Brake0001--01 ~ ; SR20DET +KA24DE |
440604N025 |
US $140.79 |
||
|
44060K
|
44060K
44060-5V225 Shoe Set-Rear Brake9710--01 ~ 9808--01; SR20DET +KA24DE |
44060-5V225 |
US $123.12 |
||
|
44060K
|
44060K
44060-5V226 Shoe Set-Rear Brake9808--01 ~ 0001--01; SR20DET +KA24DE |
44060-5V226 |
US $148.32 |
||
|
44081
|
44081
44081-25Y10
Pin-Anti Shoe Rattle
9710--01 ~ ; SR20DET +KA24DE |
44081-25Y10 |
— | ||
| replacement | |||||
|
44081
|
44081
4408125Y1A Pin-Anti Shoe Rattle9710--01 ~ ; SR20DET +KA24DE |
4408125Y1A |
from US $0.83 |
||
|
44083
|
44083
44083U9200 Spring-Anti Shoe Rattle9710--01 ~ ; SR20DET +KA24DE |
44083U9200 |
from US $1.07 |
||
|
44084
|
44084
44084-U9200
Retainer-Spring, Anti Shoe Rattle
9710--01 ~ ; SR20DET +KA24DE |
44084-U9200 |
— | ||
| replacement | |||||
|
44084
|
44084
44084U920A Retainer-Spring, Anti Shoe Rattle9710--01 ~ ; SR20DET +KA24DE |
44084U920A |
from US $1.67 |
||
|
44090
|
44090
44090-0C710 Spring-Return, Rear Brake Shoe9710--01 ~ ; SR20DET +KA24DE |
44090-0C710 |
from US $4.18 |
||
|
44091
|
44091
4409108G10 Spring-Return, Rear Brake Shoe9710--01 ~ ; SR20DET +KA24DE |
4409108G10 |
from US $1.67 |
||
|
44100B
|
44100B
0143600052 BOLT9710--01 ~ ; SR20DET +KA24DE |
0143600052 |
US $2.91 |
||
|
44100K
|
44100K
AY220NN006 Cup Kit-Brake Wheel Cylinder, Rear9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ 11/16(17.46) |
AY220NN006 |
US $19.87 |
||
|
44100K
|
44100K
AY220NN010 Cup Kit-Brake Wheel Cylinder, Rear0001--01 ~ ; SR20DET +KA24DE; NABCO 3/4(19.05) |
AY220NN010 |
US $21.60 |
||
|
44100K
|
44100K
AY220NT006 Cup Kit-Brake Wheel Cylinder, Rear9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ 11/16(17.46) |
AY220NT006 |
US $19.87 |
||
|
44100K
|
44100K
AY220NT008 Cup Kit-Brake Wheel Cylinder, Rear0001--01 ~ ; SR20DET +KA24DE; TOKICO 3/4(19.05) |
AY220NT008 |
US $21.60 |
||
|
44100P
|
44100P
44100D5512 Cylinder Assy-Rear Wheel0001--01 ~ ; SR20DET +KA24DE; TOKICO 3/4(19.05) |
44100D5512 |
US $65.38 |
||
|
44100P
|
44100P
44100-D5522 Cylinder Assy-Rear Wheel0001--01 ~ ; SR20DET +KA24DE; NABCO 3/4(19.05) |
44100-D5522 |
US $65.38 |
||
|
44100P
|
44100P
44100G5112 Cylinder Assy-Rear Wheel9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ 11/16(17.46) |
44100G5112 |
US $65.38 |
||
|
44100P
|
44100P
44100-G5122 Cylinder Assy-Rear Wheel9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ 11/16(17.46) |
44100-G5122 |
US $65.38 |
||
|
44108
|
44108
44108-D0105 Piston-Cylinder0001--01 ~ ; SR20DET +KA24DE; NABCO |
44108-D0105 |
US $17.14 |
||
|
44108
|
44108
44108-D0106 Piston-Cylinder9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
44108-D0106 |
US $18.86 |
||
|
44108
|
44108
44108-G2812 Piston-Cylinder0001--01 ~ ; SR20DET +KA24DE; TOKICO |
44108-G2812 |
US $17.14 |
||
|
44108
|
44108
44108-M4912 Piston-Cylinder9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
44108-M4912 |
US $12.38 |
||
|
44108
|
44108
44108-D0105 Piston-Cylinder0001--01 ~ ; SR20DET +KA24DE; NABCO |
44108-D0105 |
US $17.14 |
||
|
44108
|
44108
44108-D0106 Piston-Cylinder9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
44108-D0106 |
US $18.86 |
||
|
44108
|
44108
44108-G2812 Piston-Cylinder0001--01 ~ ; SR20DET +KA24DE; TOKICO |
44108-G2812 |
US $17.14 |
||
|
44108
|
44108
44108-M4912 Piston-Cylinder9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
44108-M4912 |
US $12.38 |
||
|
44112
|
44112
AY260NN003 Cup-Piston9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
AY260NN003 |
US $3.17 |
||
|
44112
|
44112
AY260NN004 Cup-Piston0001--01 ~ ; SR20DET +KA24DE; NABCO |
AY260NN004 |
US $3.89 |
||
|
44112
|
44112
AY260NT003 Cup-Piston9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
AY260NT003 |
US $4.18 |
||
|
44112
|
44112
AY260NT004 Cup-Piston0001--01 ~ ; SR20DET +KA24DE; TOKICO |
AY260NT004 |
US $3.89 |
||
|
44112
|
44112
AY260NN003 Cup-Piston9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
AY260NN003 |
US $3.17 |
||
|
44112
|
44112
AY260NN004 Cup-Piston0001--01 ~ ; SR20DET +KA24DE; NABCO |
AY260NN004 |
US $3.89 |
||
|
44112
|
44112
AY260NT003 Cup-Piston9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
AY260NT003 |
US $4.18 |
||
|
44112
|
44112
AY260NT004 Cup-Piston0001--01 ~ ; SR20DET +KA24DE; TOKICO |
AY260NT004 |
US $3.89 |
||
|
44118D
|
44118D
44085-01A00
Washer-Lock
9710--01 ~ ; SR20DET +KA24DE |
44085-01A00 |
— | ||
| replacement | |||||
|
44118D
|
44118D
4408501A0A Washer-Lock9710--01 ~ ; SR20DET +KA24DE |
4408501A0A |
from US $0.81 |
||
|
44124
|
44124
44124-17C10 Cover-Dust9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
44124-D5500 |
US $2.45 |
||
|
44124
|
44124
44124-17C10 Cover-Dust9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
44124-17C10 |
US $2.45 |
||
|
44124
|
44124
44124-D5500 Cover-Dust9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
44124-D5500 |
US $2.45 |
||
|
44125
|
44125
44125-50Y00 Spring9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
44125-50Y00 |
US $4.03 |
||
|
44125
|
44125
44125-M7010 Spring9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
44125-M7010 |
US $4.03 |
||
|
44125
|
44125
44125-U9200 Spring0001--01 ~ ; SR20DET +KA24DE; NABCO |
44125-U9200 |
US $4.61 |
||
|
44128
|
44128
4412850C10 Screw-Bleeder9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
4412850C10 |
from US $6.77 |
||
|
44128
|
44128
44128-60R00 Screw-Bleeder9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
44128-60R00 |
US $6.77 |
||
|
44129
|
44129
4112940F00 Cap-Bleeder Screw9710--01 ~ 9907--01; SR20DET +KA24DE; ﾄｷｺ |
4112940F00 |
from US $1.07 |
||
|
44129
|
44129
41129-60R00 Cap-Bleeder Screw9710--01 ~ 9907--01; SR20DET +KA24DE; ﾅﾌﾞｺ |
41129-60R00 |
US $1.58 |
||
|
44135
|
44135
44222-M4900
Ring-Retaining
9710--01 ~ ; SR20DET +KA24DE |
44222-M4900 |
— | ||
| replacement | |||||
|
44135
|
44135
44222M490A Ring-Retaining9710--01 ~ ; SR20DET +KA24DE |
44222M490A |
from US $0.81 |
||
|
44200N
|
44200N
44200-0C710 Adjuster Assy-Rear Brake, Rh9710--01 ~ ; SR20DET +KA24DE |
44200-0C710 |
US $55.73 |
||
|
44201
|
44201
44201-0C710 Adjuster Assy-Rear Brake, Lh9710--01 ~ ; SR20DET +KA24DE |
44201-0C710 |
US $55.73 |
||
|
44209M
|
44209M
44211-0C710 Lever Assy-Adjuster, Lh9710--01 ~ ; SR20DET +KA24DE |
44211-0C710 |
US $16.92 |
||
|
44209N
|
44209N
442100C710 Lever Assy-Adjuster, Rh9710--01 ~ ; SR20DET +KA24DE |
442100C710 |
US $13.39 |
||
