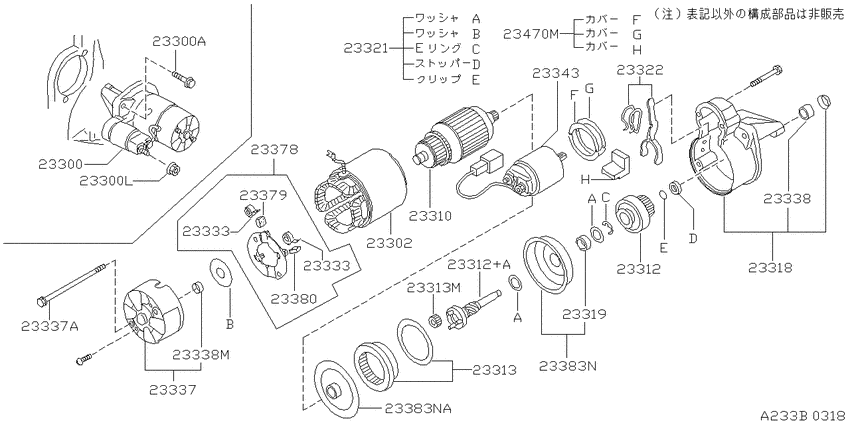

Starter motor (1999-07-01 ~ ; SR20DET) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- SR20DET
- drive
- 4WD
- transmission
- AT.R4
- grade
- GT/T
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300
|
23300
23300-2J206 Motor Assy-Starter9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23300-2J206 |
US $1,192.27 |
||
|
23300
|
23300
23300-53J12 Motor Assy-Starter9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23300-53J12 |
US $1,163.95 |
||
|
23300
|
23300
01121-05211 BOLT9710--01 ~ 9811--01; SR20DET |
01121-05211 |
US $5.04 |
||
|
23300
|
23300
0122100381 NUT9710--01 ~ 9811--01; SR20DET |
0122100381 |
US $7.91 |
||
|
23300A
|
23300A
01121-05211 BOLT9710--01 ~ 9811--01; SR20DET |
01121-05211 |
US $5.04 |
||
|
23300L
|
23300L
0122100381 NUT9710--01 ~ 9811--01; SR20DET |
0122100381 |
US $7.91 |
||
|
23302
|
23302
23302-2J205 Yoke Assy9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23302-2J205 |
US $297.36 |
||
|
23302
|
23302
23302-42L70 Yoke Assy9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23302-42L70 |
US $259.20 |
||
|
23310
|
23310
23310-01N11 Armature Assy9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23310-01N11 |
US $671.18 |
||
|
23310
|
23310
2331031U00 Armature Assy9710--01 ~ ; SR20DET; ﾋﾀﾁ |
2331031U00 |
US $283.68 |
||
|
23312
|
23312
233122J200 Pinion Assy9710--01 ~ ; SR20DET; ﾋﾀﾁ |
233122J200 |
US $140.98 |
||
|
23312
|
23312
23312-53J11 Pinion Assy9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23312-53J11 |
US $433.30 |
||
|
23312
|
23312
23312-53J12 Pinion Assy9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23312-53J12 |
US $106.42 |
||
|
23312
|
23312
23313-2J200 Pinion Assy9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23313-2J200 |
US $97.78 |
||
|
23312+A
|
23312+A
23312-53J12 Pinion Assy9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23312-53J12 |
US $106.42 |
||
|
23312+A
|
23312+A
23313-2J200 Pinion Assy9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23313-2J200 |
US $97.78 |
||
|
23313
|
23313
23361-0M300 Gear9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23361-0M300 |
US $51.55 |
||
|
23313
|
23313
23361-42L70 Planet Gear9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23361-42L70 |
US $22.46 |
||
|
23313
|
23313
23367-31U01 Planet Gear9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23313M
|
23313M
23367-31U01 Planet Gear9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23367-31U01 |
US $16.13 |
||
|
23318
|
23318
23318-2J200 Case Assy-Gear9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23318-2J200 |
US $167.04 |
||
|
23318
|
23318
23318-53J12 Case Assy-Gear9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23318-53J12 |
US $131.18 |
||
|
23319
|
23319
23319-97E00 METAL-GEAR CASE9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23319-97E00 |
US $11.66 |
||
|
23319
|
23319
23319M8011 Metal-Gear Case9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23319M8011 |
US $5.18 |
||
|
23321
|
23321
233200M300 Washer Set-Thrust9710--01 ~ ; SR20DET; ﾋﾀﾁ |
233200M300 |
US $6.34 |
||
|
23322
|
23322
233220M300 Lever Set-Shift9710--01 ~ ; SR20DET; ﾋﾀﾁ |
233220M300 |
from US $19.30 |
||
|
23322
|
23322
23322-42L70 Lever Set-Shift9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23322-42L70 |
US $14.54 |
||
|
23322
|
23322
23325-42L70 Ball-Shift Lever9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23325-42L70 |
from US $1.39 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333-42L71 Spring9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23333
|
23333
23333-42L70 Spring-Brush9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23333-42L70 |
US $4.03 |
||
|
23333
|
23333
23333-50Y02 Spring-Brush9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23333-50Y02 |
US $6.24 |
||
|
23333
|
23333
23333-42L71 Spring9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23333-42L71 |
US $4.03 |
||
|
23337
|
23337
23337-01N10 Cover Assy-Rear9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23337-01N10 |
US $68.54 |
||
|
23337
|
23337
23337-0M300 Cover Assy-Rear9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23337-0M300 |
US $51.70 |
||
|
23337
|
23337
23340-20P10 Bolt-Through9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337
|
23337
233404W01A Bolt-Through9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23337
|
23337
23340-M4900 Bolt-Through9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-20P10 Bolt-Through9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23340-20P10 |
US $4.18 |
||
| replacement | |||||
|
23337A
|
23337A
233404W01A Bolt-Through9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
233404W01A |
US $4.03 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23338
|
23338
23338-01N10 Metal-Rear Cover9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23338-01N10 |
from US $9.36 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
2333897E00 BEARING-REAR COVER9710--01 ~ ; SR20DET; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23338M
|
23338M
2333897E00 BEARING-REAR COVER9710--01 ~ ; SR20DET; ﾋﾀﾁ |
2333897E00 |
US $10.37 |
||
|
23343
|
23343
23343-53J12 Switch Assy-Magnetic9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23343-53J12 |
US $165.60 |
||
|
23343
|
23343
23343-77A01 Switch Assy-Magnetic9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23343-77A01 |
US $168.48 |
||
|
23378
|
23378
23378-0M300 Holder Assy-Brush9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23378-0M300 |
US $54.43 |
||
|
23378
|
23378
23378-42L70 Holder Assy-Brush9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23378-42L70 |
US $60.19 |
||
|
23379
|
23379
23379-0M300 Brush-Minus9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23379-0M300 |
US $10.08 |
||
|
23380
|
23380
23380-0M300 Brush-Plus9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23380-0M300 |
US $15.98 |
||
|
23380
|
23380
23380-30R10 Brush-Plus9710--01 ~ 9811--01; SR20DET; ﾐﾂﾋﾞｼ |
23380-30R10 |
from US $8.93 |
||
|
23383N
|
23383N
23383-2J201 Bracket Assy-Center9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23383-2J201 |
US $26.78 |
||
|
23383N
|
23383N
23383-0M301 Bracket Assy-Center9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23383-0M301 |
US $26.78 |
||
|
23383NA
|
23383NA
23383-0M301 Bracket Assy-Center9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23383-0M301 |
US $26.78 |
||
|
23470M
|
23470M
23470-0M300 Cover-Dust9710--01 ~ ; SR20DET; ﾋﾀﾁ |
23470-0M300 |
US $10.08 |
||
