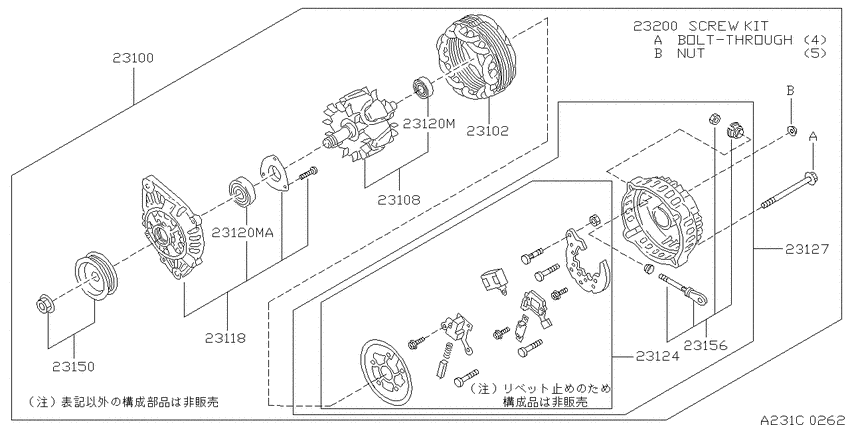

Alternator (1997-10-01 ~ ; KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 4WD
- transmission
- AT.R4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-5V100 Alternator Assy9710--01 ~ 9811--01; KA24DE; ﾋﾀﾁ |
23100-5V100 |
US $1,750 |
||
|
23100
|
23100
23100-5V101 Alternator Assy9811--01 ~ ; KA24DE; ﾋﾀﾁ |
23100-5V101 |
US $1,349.45 |
||
|
23100
|
23100
0122100381 NUT9710--01 ~ ; KA24DE |
0122100381 |
from US $5.37 |
||
|
23102
|
23102
23102-65F00 Stator Assy9710--01 ~ ; KA24DE; ﾋﾀﾁ |
23102-65F00 |
US $618.79 |
||
|
23108
|
23108
23108-4M501 Rotor Assy0009--01 ~ ; KA24DE; ﾋﾀﾁ |
23108-4M501 |
US $346.92 |
||
|
23108
|
23108
23108-5V100 Rotor Assy9710--01 ~ 9811--01; KA24DE |
23108-5V100 |
US $553.66 |
||
|
23108
|
23108
23108-5V101 Rotor Assy9811--01 ~ 0009--01; KA24DE; ﾋﾀﾁ |
23108-5V101 |
US $421.97 |
||
|
23118
|
23118
23118-9E000 COVER ASSY-FRONT9710--01 ~ ; KA24DE; ﾋﾀﾁ |
23118-9E000 |
US $136.66 |
||
|
23120M
|
23120M
23120-0M000 Bearing-Ball9710--01 ~ ; KA24DE; ﾋﾀﾁ |
23120-0M000 |
US $42.34 |
||
|
23120M
|
23120M
23120-0M005 Bearing-Ball9710--01 ~ ; KA24DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23120MA
|
23120MA
23120-0M005 Bearing-Ball9710--01 ~ ; KA24DE; ﾋﾀﾁ |
23120-0M005 |
US $40.61 |
||
|
23124
|
23124
23124-4M800 Rectifier Assy9907--01 ~ 0009--01; KA24DE; ﾋﾀﾁ |
23124-4M800 |
US $526.75 |
||
|
23124
|
23124
23124-5V101 Rectifier Assy9710--01 ~ 9811--01; KA24DE; ﾋﾀﾁ |
23124-5V101 |
US $573.48 |
||
|
23124
|
23124
23124-5V102 Rectifier Assy9811--01 ~ 9907--01; KA24DE; ﾋﾀﾁ |
23124-5V102 |
US $573.48 |
||
|
23124
|
23124
23124-BU000 Rectifier Assy0009--01 ~ ; KA24DE; ﾋﾀﾁ |
23124-BU000 |
US $525.34 |
||
|
23127
|
23127
23127-5V102 Cover Assy-Rear9811--01 ~ 9907--01; KA24DE; ﾋﾀﾁ |
23127-5V102 |
US $676.85 |
||
|
23127
|
23127
23127-5V103 Cover Assy-Rear9907--01 ~ 0009--01; KA24DE; ﾋﾀﾁ |
23127-5V103 |
US $621.62 |
||
|
23127
|
23127
23127-5V104 Cover Assy-Rear0009--01 ~ ; KA24DE; ﾋﾀﾁ |
23127-5V104 |
US $621.62 |
||
|
23127
|
23127
23127-9E000 COVER ASSY-REAR9710--01 ~ 9811--01; KA24DE; ﾋﾀﾁ |
23127-9E000 |
US $812.78 |
||
|
23150
|
23150
23150-5V100 Pulley Assy9907--01 ~ ; KA24DE; ﾋﾀﾁ |
23150-5V100 |
US $122.98 |
||
|
23150
|
23150
23150-9E000 PULLEY ASSY9710--01 ~ 9907--01; KA24DE; ﾋﾀﾁ |
23150-9E000 |
US $122.98 |
||
|
23156
|
23156
23156-0M800 Terminal Assy-B9710--01 ~ 9811--01; KA24DE; ﾋﾀﾁ |
23156-0M800 |
US $17.28 |
||
|
23156
|
23156
23156-65F00 Terminal Assy-B9811--01 ~ ; KA24DE; ﾋﾀﾁ |
23156-65F00 |
from US $8.33 |
||
|
23200
|
23200
23200-0M000 Screw Set9710--01 ~ ; KA24DE; ﾋﾀﾁ |
23200-0M000 |
US $8.50 |
