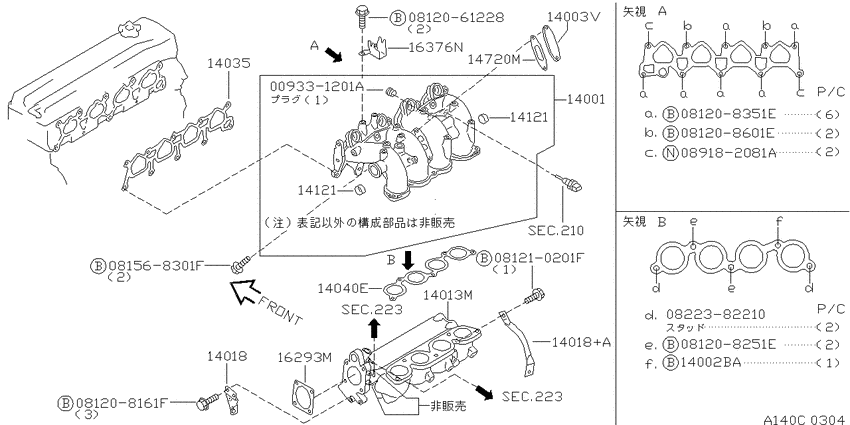

Manifold (1997-10-01 ~ ; インテーク パーツ; KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 4WD
- transmission
- AT.R4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331201A
|
009331201A
00933-1201A Plug-Welch |
00933-1201A |
from US $0.50 |
||
| replacement | |||||
|
009331201A
|
009331201A
0093312010 PLUG-WELCH |
0093312010 |
US $1.73 |
||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
081208161F
|
081208161F
081208161F
Bolt-hexagon
|
081208161F |
— | ||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
from US $0.63 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.54 |
||
|
081208601E
|
081208601E
08120-8601E
Bolt-hexagon
|
08120-8601E |
— | ||
|
081210201F
|
081210201F
08121-0201F
Bolt-hexagon
|
08121-0201F |
— | ||
|
081568301F
|
081568301F
08156-8301F
BOLTHEXPP WW
|
08156-8301F |
— | ||
|
0822382210
|
0822382210
0822382210 STUD |
0822382210 |
US $3.06 |
||
|
089182081A
|
089182081A
089182081A NUTHEX |
089182081A |
US $2.21 |
||
|
14001
|
14001
14001-9E000 MANIFOLD ASSY-INTAKE9811--01 ~ 0001--01; KA24DE; ﾋﾀﾁ ｷﾝｿﾞｸ |
14001-9E000 |
US $356.83 |
||
|
14001
|
14001
14001-F4405 Manifold Assy-Intake9710--01 ~ 9811--01; KA24DE |
14001-F4405 |
US $356.83 |
||
|
14002BA
|
14002BA
01121-03281 BOLT9710--01 ~ ; KA24DE |
01121-03281 |
US $5.18 |
||
|
14003V
|
14003V
14712-5V110 Blind Plate9710--01 ~ ; KA24DE |
14712-5V110 |
US $9.07 |
||
|
14013M
|
14013M
14010-F4405 Collector-Intake Manifold9710--01 ~ 0006--01; KA24DE |
14010-F4405 |
US $341.26 |
||
|
14013M
|
14013M
14010-F4408 Collector-Intake Manifold0006--01 ~ ; KA24DE |
14010-F4408 |
US $341.26 |
||
|
14018
|
14018
14018-5V110 Support-Manifold9710--01 ~ ; KA24DE |
14018-5V110 |
US $27.94 |
||
|
14018
|
14018
14018-5V105 Support-Manifold9710--01 ~ ; KA24DE |
14018-5V105 |
US $27.94 |
||
|
14018+A
|
14018+A
14018-5V105 Support-Manifold9710--01 ~ ; KA24DE |
14018-5V105 |
US $27.94 |
||
|
14035
|
14035
14035-1E400 Gasket-Manifold9710--01 ~ ; KA24DE |
14035-1E400 |
US $22.18 |
||
|
14040E
|
14040E
14032-1E400 Gasket-Adapter9710--01 ~ ; KA24DE |
14032-1E400 |
US $6.48 |
||
|
14121
|
14121
14088-V5000 Plug-Blind9710--01 ~ ; KA24DE |
14088-V5000 |
US $3.31 |
||
|
14121
|
14121
14088-V5000 Plug-Blind9710--01 ~ ; KA24DE |
14088-V5000 |
US $3.31 |
||
|
14720M
|
14720M
14720-5V110 Gasket-Egr Passage9710--01 ~ ; KA24DE |
14720-5V110 |
US $6.48 |
||
|
16293M
|
16293M
16175-79S70 Gasket-Throttle Chamber9710--01 ~ 0107--01; KA24DE |
16175-79S70 |
US $6.48 |
||
| replacement | |||||
|
16293M
|
16293M
1617579S71 Gasket-Throttle Chamber9710--01 ~ 0107--01; KA24DE |
1617579S71 |
from US $7.01 |
||
|
16293M
|
16293M
1617579S71 Gasket-Throttle Chamber0107--01 ~ ; KA24DE |
1617579S71 |
from US $7.01 |
||
|
16376N
|
16376N
16165-9E000 BRACKET-ACCELERATOR CABLE9710--01 ~ ; KA24DE |
16165-9E000 |
US $12.82 |
||
|
