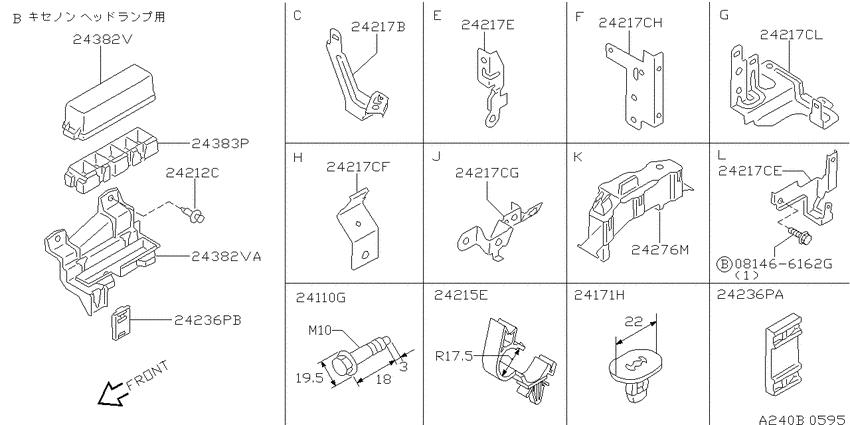

Wiring (1997-10-01 ~ ; &エンジン ルーム フィッティング(1); W.KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 4WD
- transmission
- AT.R4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.68 |
||
|
24110G
|
24110G
01125-02501 BOLT9710--01 ~ 9811--01; W.KA24DE |
01125-02501 |
US $2.45 |
||
|
24171H
|
24171H
01281-00601
GROMMET-SCREW
9811--01 ~ ; W.KA24DE |
01281-00601 |
— | ||
| replacement | |||||
|
24171H
|
24171H
0128101231 GROMMET-SCREW9811--01 ~ ; W.KA24DE |
0128101231 |
US $4.42 |
||
|
24212C
|
24212C
0155309321 CLIP9710--01 ~ ; W.KA24DE |
0155309321 |
from US $0.89 |
||
|
24215E
|
24215E
24200-0W000 Clip-Wiring Harness9710--01 ~ 9907--01; W.KA24DE |
24200-0W000 |
US $4.18 |
||
|
24215E
|
24215E
24200-AD000 Clip-Wiring Harness9907--01 ~ ; W.KA24DE |
24200-AD000 |
US $6.77 |
||
|
24215E
|
24215E
24210-32U00 Clip0001--01 ~ ; W.KA24DE |
24210-32U00 |
US $10.80 |
||
|
24217B
|
24217B
24239-5V000 Bracket-Harness Clip9710--01 ~ ; W.KA24DE |
24239-5V000 |
US $9.79 |
||
|
24217CE
|
24217CE
24239-5V002 Bracket-Harness Clip9710--01 ~ ; W.KA24DE |
24239-5V002 |
US $17.86 |
||
|
24217CF
|
24217CF
24239-1E801 Bracket-Harness Clip9710--01 ~ ; W.KA24DE |
24239-1E801 |
US $9.50 |
||
|
24217CG
|
24217CG
24239-5V103 Bracket-Harness Clip9710--01 ~ ; W.KA24DE |
24239-5V103 |
US $9.50 |
||
|
24217CH
|
24217CH
24239-5V101 Bracket-Harness Clip9710--01 ~ ; W.KA24DE |
24239-5V101 |
US $9.50 |
||
|
24217CL
|
24217CL
24239-5V200 Bracket-Harness Clip9710--01 ~ ; W.KA24DE |
24239-5V200 |
US $9.50 |
||
|
24217E
|
24217E
24239-5V100 Bracket-Clip9710--01 ~ ; W.KA24DE |
24239-5V100 |
US $8.06 |
||
|
24217E
|
24217E
24239-5V102 Bracket-Clip9907--01 ~ ; W.KA24DE |
24239-5V102 |
US $8.06 |
||
|
24236PA
|
24236PA
24346-5V002 Bracket-Connector9811--01 ~ ; W.KA24DE |
24346-5V002 |
US $9.36 |
||
|
24236PB
|
24236PB
24346-5V005 Bracket-Connector9811--01 ~ ; W.KA24DE |
24346-5V005 |
US $9.36 |
||
|
24276M
|
24276M
24270-5V200 Protector-Harness9710--01 ~ ; W.KA24DE |
24270-5V200 |
US $26.50 |
||
|
24382V
|
24382V
24382-5V003 Cover-Relay Box9710--01 ~ 9907--01; *W.KA24DE; ｷｾﾉﾝ ﾍﾂﾄﾞﾗﾝﾌﾟ ｼﾖｳ |
24382-5V003 |
US $27.36 |
||
|
24382V
|
24382V
24382-5V004 Cover-Relay Box9710--01 ~ 0001--01; W.KA24DE |
24382-5V004 |
US $27.36 |
||
|
24382VA
|
24382VA
24382-5V004 Cover-Relay Box9710--01 ~ 0001--01; W.KA24DE |
24382-5V004 |
US $27.36 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX9710--01 ~ ; W.KA24DE |
2438351E00 |
from US $13.14 |
||
