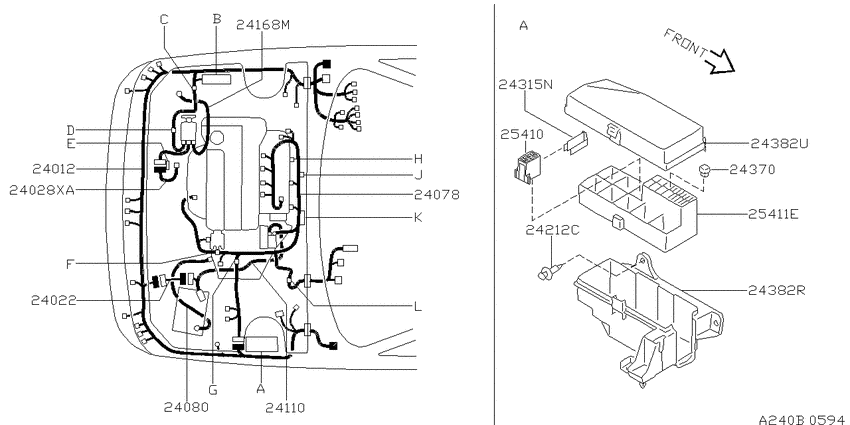

Wiring (1998-11-01 ~ 2000-01-01; エンジン ルーム; W.KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 4WD
- transmission
- AT.R4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-5V100 Harness Assy-Engine Room9710--01 ~ 0001--01; W.KA24DE |
24012-5V100 |
US $1,414 |
||
|
24012
|
24012
24012-5V101 Harness Assy-Engine Room9907--01 ~ 0001--01; *W.KA24DE |
24012-5V101 |
US $1,414 |
||
|
24012
|
24012
24012-6V100 Harness Assy-Engine Room0001--01 ~ ; W.KA24DE |
24012-6V100 |
US $1,414 |
||
|
24012
|
24012
24012-6V101 Harness Assy-Engine Room0001--01 ~ ; *W.KA24DE |
24012-6V101 |
US $1,414 |
||
|
24022
|
24022
24022-5V000 Wire Assy-Fusible Link9710--01 ~ ; W.KA24DE |
24022-5V000 |
US $20.88 |
||
|
24028XA
|
24028XA
24168-5V100 Harness-Sub9710--01 ~ ; W.KA24DE |
24168-5V100 |
US $22.75 |
||
|
24078
|
24078
24011-5V100 Harness Assy-Egi9710--01 ~ 0001--01; W.KA24DE |
24011-5V100 |
US $809.95 |
||
|
24078
|
24078
24011-6V100 Harness Assy-Egi0001--01 ~ ; W.KA24DE |
24011-6V100 |
US $809.95 |
||
|
24080
|
24080
24080-5V001 Cable Assy-Battery Earth9710--01 ~ ; W.KA24DE |
24080-5V001 |
US $82.37 |
||
|
24080
|
24080
24080-5V002 Cable Assy-Battery Earth9710--01 ~ 9907--01; *W.KA24DE; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-5V002 |
US $82.37 |
||
|
24110
|
24110
24110-5V101 Cable Assy-Battery To Starter Motor9710--01 ~ ; W.KA24DE |
24110-5V101 |
US $127.87 |
||
|
24110
|
24110
24110-5V102 Cable Assy-Battery To Starter Motor9710--01 ~ 9907--01; *W.KA24DE; ｶﾝﾚｲﾁ ｼﾖｳ |
24110-5V102 |
US $127.87 |
||
|
24110
|
24110
01125-00931 SCREW9907--01 ~ ; W.KA24DE |
01125-00931 |
US $2.45 |
||
|
24110
|
24110
01125-02501 BOLT9710--01 ~ 9811--01; W.KA24DE |
01125-02501 |
US $2.45 |
||
|
24168M
|
24168M
24168-5V110 Harness-Sub9710--01 ~ ; W.KA24DE |
24168-5V110 |
US $25.06 |
||
|
24212C
|
24212C
0155309321 CLIP9710--01 ~ ; W.KA24DE |
0155309321 |
US $0.97 |
||
|
24315N
|
24315N
24315-5P600 Retainer-Fuse Block9811--01 ~ ; W.KA24DE |
24315-5P600 |
US $3.46 |
||
|
24370
|
24370
2437079900 Connector Assy-Fusible Link9811--01 ~ ; W.KA24DE; 80A |
2437079900 |
US $13.10 |
||
|
24370
|
24370
24370-C9920 Connector Assy-Fusible Link9811--01 ~ ; W.KA24DE; 40A |
24370-C9920 |
US $13.10 |
||
|
24382R
|
24382R
24382-5V002 Cover-Fusible Link Holder9710--01 ~ ; W.KA24DE |
24382-5V002 |
US $17.28 |
||
|
24382U
|
24382U
24382-5V000 Cover-Fusible Link Holder9710--01 ~ ; W.KA24DE |
24382-5V000 |
US $17.28 |
||
|
25410
|
25410
24311-5P600 Block Assy-Fuse9811--01 ~ ; W.KA24DE |
24311-5P600 |
US $5.47 |
||
|
25410
|
25410
24321-79901 Puller-Fuse9710--01 ~ 9811--01; W.KA24DE |
24321-79901 |
US $3.46 |
||
|
25411E
|
25411E
24382-5V001 Holder-Fusible Link9710--01 ~ ; W.KA24DE |
24382-5V001 |
US $27.36 |
