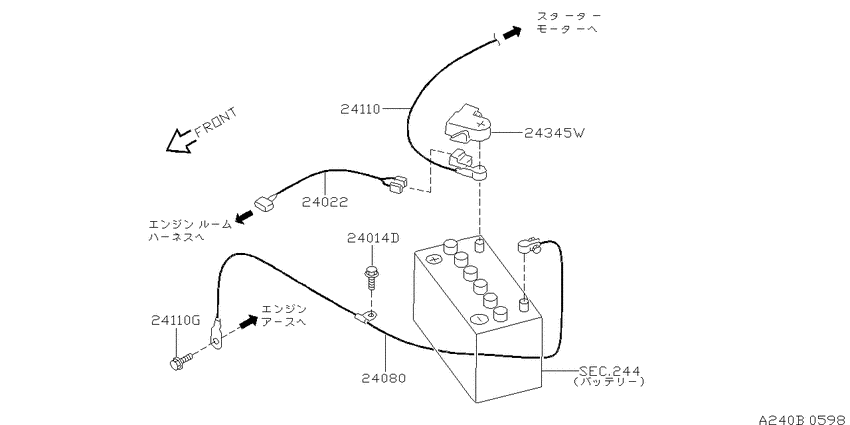

Wiring (1997-10-01 ~ ; バッテリー 回り; W.KA24DE) Diagram Nissan R`NESSA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- KA24DE
- drive
- 4WD
- transmission
- AT.R4
- grade
- G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24014D
|
24014D
0145600411 SCREW9710--01 ~ ; W.KA24DE |
0145600411 |
US $1.67 |
||
|
24022
|
24022
24022-5V000 Wire Assy-Fusible Link9710--01 ~ ; W.KA24DE |
24022-5V000 |
US $20.88 |
||
|
24080
|
24080
24080-5V001 Cable Assy-Battery Earth9710--01 ~ ; W.KA24DE |
24080-5V001 |
US $82.37 |
||
|
24080
|
24080
24080-5V002 Cable Assy-Battery Earth9710--01 ~ 9907--01; *W.KA24DE; ｶﾝﾚｲﾁ ｼﾖｳ |
24080-5V002 |
US $82.37 |
||
|
24110
|
24110
24110-5V101 Cable Assy-Battery To Starter Motor9710--01 ~ ; W.KA24DE |
24110-5V101 |
US $127.87 |
||
|
24110
|
24110
24110-5V102 Cable Assy-Battery To Starter Motor9710--01 ~ 9907--01; *W.KA24DE; ｶﾝﾚｲﾁ ｼﾖｳ |
24110-5V102 |
US $127.87 |
||
|
24110
|
24110
01125-00931 SCREW9907--01 ~ ; W.KA24DE |
01125-00931 |
US $2.45 |
||
|
24110
|
24110
01125-02501 BOLT9710--01 ~ 9811--01; W.KA24DE |
01125-02501 |
US $2.45 |
||
|
24110G
|
24110G
01125-02501 BOLT9710--01 ~ 9811--01; W.KA24DE |
01125-02501 |
US $2.45 |
||
|
24345W
|
24345W
2434540U05 Cover-Battery Terminak9710--01 ~ ; W.KA24DE |
2434540U05 |
US $13.26 |
||
|
