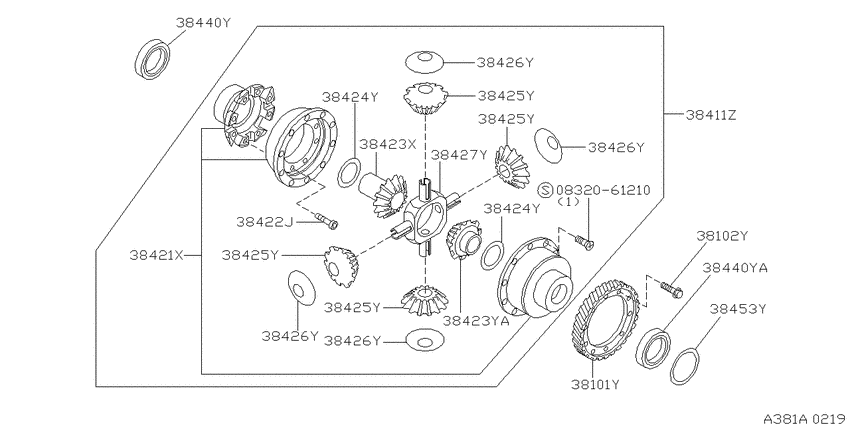

Front final drive (1998-01-01 ~ ; ビスカス タイプ; GA15DE.AT +SR18DE +SR20DE) Diagram Nissan RASHEEN
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- GA15DE
- transmission
- AT
- grade
- TYPE1
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0832061210
|
0832061210
08320-61210
New Genuine Part
|
08320-61210 |
— | ||
|
38101Y
|
38101Y
38101-31X05 Gear-Final Drive9412--01 ~ 9701--01; GA15DE.AT |
38101-31X05 |
US $138.96 |
||
|
38102Y
|
38102Y
38102-31X00 Bolt-Drive Gear9909--01 ~ ; GA15DE.AT |
38102-31X00 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9412--01 ~ 9701--01; GA15DE.AT |
38102-M8001 |
US $2.45 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9412--01 ~ 9701--01; GA15DE.AT |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9801--01 ~ ; GA15DE.AT |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9412--01 ~ 9701--01; GA15DE.AT |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9801--01 ~ ; GA15DE.AT |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9412--01 ~ 9701--01; GA15DE.AT |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9801--01 ~ ; GA15DE.AT |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9412--01 ~ 9701--01; GA15DE.AT |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9801--01 ~ ; GA15DE.AT |
38425-31X07 |
US $64.22 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9412--01 ~ 9701--01; GA15DE.AT |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9412--01 ~ 9701--01; GA15DE.AT |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9412--01 ~ 9701--01; GA15DE.AT |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9412--01 ~ 9701--01; GA15DE.AT |
38426-31X02 |
US $4.18 |
||
|
38427Y
|
38427Y
38427-31X04 Shaft-Pinion Mate9412--01 ~ 9701--01; GA15DE.AT |
38427-31X04 |
US $63.22 |
||
|
38440Y
|
38440Y
38440-06R10 Bearing-Differential Side9412--01 ~ 9701--01; GA15DE.AT |
38440-06R10 |
US $91.58 |
||
|
38440Y
|
38440Y
31408-31X07 Bearing-Differential Side9412--01 ~ 9701--01; GA15DE.AT |
31408-31X07 |
US $46.80 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X23 Bearing-Differential Side9412--01 ~ 9701--01; GA15DE.AT |
31408-31X23 |
US $42.48 |
||
|
38440Y
|
38440Y
31408-31X15 Bearing-Differential Side0006--01 ~ ; GA15DE.AT |
31408-31X15 |
US $55.58 |
||
| replacement | |||||
|
38440Y
|
38440Y
31408-31X23 Bearing-Differential Side0006--01 ~ ; GA15DE.AT |
31408-31X23 |
US $42.48 |
||
|
38440YA
|
38440YA
31408-31X07 Bearing-Differential Side9412--01 ~ 9701--01; GA15DE.AT |
31408-31X07 |
US $46.80 |
||
| replacement | |||||
|
38440YA
|
38440YA
31408-31X23 Bearing-Differential Side9412--01 ~ 9701--01; GA15DE.AT |
31408-31X23 |
US $42.48 |
||
|
38440YA
|
38440YA
31408-31X15 Bearing-Differential Side0006--01 ~ ; GA15DE.AT |
31408-31X15 |
US $55.58 |
||
| replacement | |||||
|
38440YA
|
38440YA
31408-31X23 Bearing-Differential Side0006--01 ~ ; GA15DE.AT |
31408-31X23 |
US $42.48 |
||
|
38453Y
|
38453Y
31499-21X07 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.40 |
31499-21X07 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X08 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.44 |
31499-21X08 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X09 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.48 |
31499-21X09 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X10 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.52 |
31499-21X10 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X11 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.56 |
31499-21X11 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X12 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.60 |
31499-21X12 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X13 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.64 |
31499-21X13 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X14 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.68 |
31499-21X14 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X15 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.72 |
31499-21X15 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X16 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.76 |
31499-21X16 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X17 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.80 |
31499-21X17 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X18 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.84 |
31499-21X18 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X19 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.88 |
31499-21X19 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X20 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=0.92 |
31499-21X20 |
US $6.91 |
||
|
38453Y
|
38453Y
31499-21X21 Shim-Adjust, Output Shaft9412--01 ~ 9701--01; GA15DE.AT; ｾﾝﾀｸ T=1.44 |
31499-21X21 |
US $8.06 |
||
