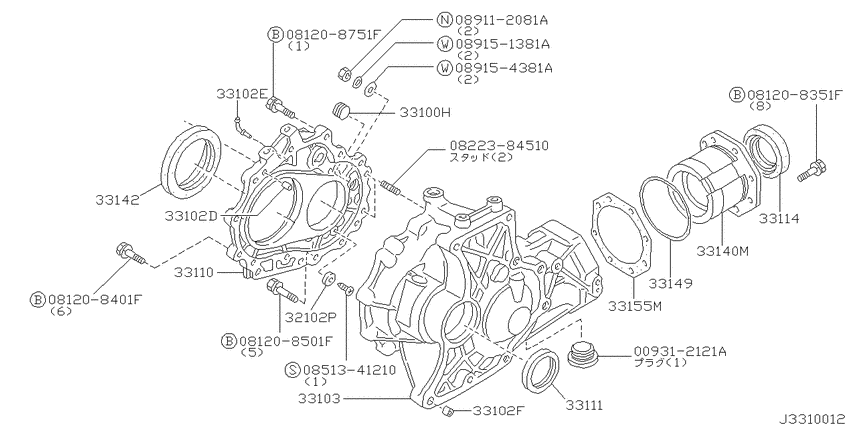

Transfer case (1997-01-01 ~ ; GA15DE) Diagram Nissan RASHEEN
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- GA15DE
- transmission
- AT
- grade
- TYPE1
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312121A
|
009312121A
009312121A Plug-Thread |
009312121A |
from US $1.76 |
||
|
081208351F
|
081208351F
08120-8351F
Bolt-hexagon
|
08120-8351F |
— | ||
|
081208401F
|
081208401F
08120-8401F Bolt-hexagon |
08120-8401F |
US $0.57 |
||
|
081208501F
|
081208501F
081208501F Bolt-hexagon |
081208501F |
US $0.74 |
||
|
081208751F
|
081208751F
08120-8751F
Bolt-hexagon
|
08120-8751F |
— | ||
|
0822384510
|
0822384510
08223-84510
STUD
|
08223-84510 |
— | ||
|
0851341210
|
0851341210
08513-41210
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-41210 |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
32102P
|
32102P
32105-U8400 Magnet-Transfer9412--01 ~ 9701--01; GA15DE |
32105-U8400 |
US $2.45 |
||
|
33100H
|
33100H
01642-00111
PLUG-FILLER
9412--01 ~ 9701--01; GA15DE |
01642-00111 |
— | ||
|
33102D
|
33102D
32105-C6900 Pin9412--01 ~ 9701--01; GA15DE |
32105-C6900 |
US $4.18 |
||
|
33102E
|
33102E
38322-10R00 Breather9412--01 ~ 9701--01; GA15DE |
38322-10R00 |
US $5.76 |
||
|
33102F
|
33102F
1102221000 Dowel-Block To Transmission9412--01 ~ 9701--01; GA15DE |
1102221000 |
from US $0.59 |
||
|
33103
|
33103
33103-59M06 Case-Transfer9603--01 ~ 9701--01; GA15DE |
33103-59M06 |
US $441.79 |
||
|
33110
|
33110
33110-59M06 Adapter-Transfer Case9603--01 ~ 9701--01; GA15DE |
33110-59M06 |
US $149.76 |
||
|
33111
|
33111
3311106R00 Seal-Oil, Ring Gear9412--01 ~ 9701--01; GA15DE |
3311106R00 |
from US $10.37 |
||
|
33111
|
33111
33111AD300 Seal-Oil, Ring Gear0005--01 ~ ; GA15DE |
33111AD300 |
US $7.20 |
||
|
33114
|
33114
38189-59M00 Seal-Oil, Transfer Case9412--01 ~ 9701--01; GA15DE |
38189-59M00 |
US $11.66 |
||
|
33114
|
33114
33114-06R00 Seal-Oil, Drive Shaft Rh9412--01 ~ 9701--01; GA15DE |
33114-06R00 |
US $9.07 |
||
|
33140M
|
33140M
33140-59M06 Sleeve-Pinion Shaft9412--01 ~ 9701--01; GA15DE |
33140-59M06 |
US $138.53 |
||
|
33142
|
33142
33142-10R01 Seal-Oil9412--01 ~ 9701--01; GA15DE |
33142-10R01 |
US $19.58 |
||
| replacement | |||||
|
33142
|
33142
C314210R01 SEAL OIL DRIVE9412--01 ~ 9701--01; GA15DE |
C314210R01 |
US $20.18 |
||
|
33149
|
33149
33149-10R00 Seal-O Ring, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE |
33149-10R00 |
US $7.06 |
||
| replacement | |||||
|
33149
|
33149
C3149-10R00
Seal-o ring,pinion shaft sleeve
9412--01 ~ 9701--01; GA15DE |
C3149-10R00 |
— | ||
|
33155M
|
33155M
33155-10R00 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.40 |
33155-10R00 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R01 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.44 |
33155-10R01 |
US $7.92 |
||
|
33155M
|
33155M
33155-10R02 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.48 |
33155-10R02 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R03 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.52 |
33155-10R03 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R04 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.56 |
33155-10R04 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R05 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.60 |
33155-10R05 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R06 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.64 |
33155-10R06 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R07 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.68 |
33155-10R07 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R08 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.72 |
33155-10R08 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R09 Shim-Adjust, Pinion Shaft Sleeve9412--01 ~ 9701--01; GA15DE; ｾﾝﾀｸ T=0.76 |
33155-10R09 |
US $7.63 |
||
|
33155M
|
33155M
33155-10R10 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=0.80 |
33155-10R10 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R11 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=0.84 |
33155-10R11 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R12 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=0.88 |
33155-10R12 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R13 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=0.92 |
33155-10R13 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R14 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=0.96 |
33155-10R14 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R15 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=1.00 |
33155-10R15 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R16 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=1.04 |
33155-10R16 |
US $9.07 |
||
|
33155M
|
33155M
3315510R17 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=1.08 |
3315510R17 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R18 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=1.12 |
33155-10R18 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R19 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=1.16 |
33155-10R19 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R20 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=1.20 |
33155-10R20 |
US $9.07 |
||
|
33155M
|
33155M
33155-10R21 Shim-Adjust, Pinion Shaft Sleeve9707--01 ~ 9801--01; GA15DE +SR18DE; ｾﾝﾀｸ T=1.24 |
33155-10R21 |
US $9.07 |
||
