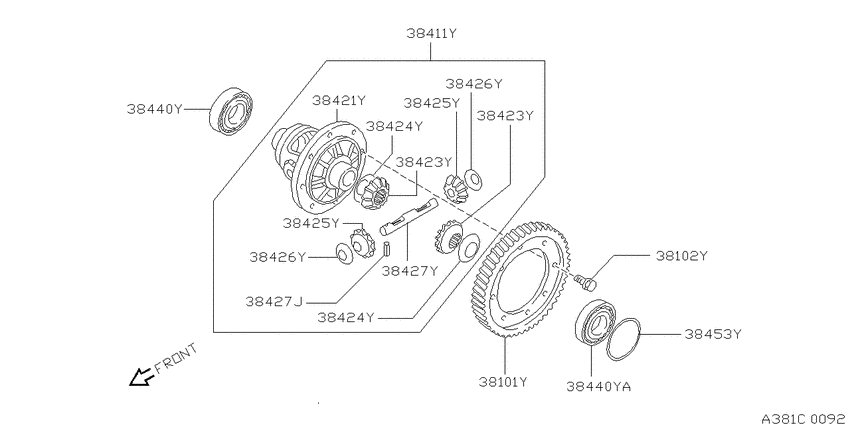

Front final drive (1997-01-01 ~ ; RS5F31A; GA15DE.MT) Diagram Nissan RASHEEN
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- GA15DE
- transmission
- MT
- grade
- TYPE2
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38101Y
|
38101Y
38101-64A09 Gear-Final Drive9701--01 ~ ; GA15DE.MT |
38101-64A09 |
US $201.60 |
||
|
38102Y
|
38102Y
38102-6J000 Bolt-Drive Gear9807--01 ~ ; GA15DE.MT |
38102-6J000 |
US $2.45 |
||
|
38102Y
|
38102Y
38102-M8001 Bolt-Drive Gear9701--01 ~ 9807--01; GA15DE.MT |
38102-M8001 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-62Y01 Case Compl-Differential9701--01 ~ 9909--01; GA15DE.MT |
38411-62Y01 |
US $1,022.35 |
||
|
38411Y
|
38411Y
38411-62Y10 Case Compl-Differential9909--01 ~ ; GA15DE.MT |
38411-62Y10 |
US $1,030.85 |
||
|
38421Y
|
38421Y
38421-62Y00 Case-Differential9701--01 ~ ; GA15DE.MT |
38421-62Y00 |
US $630.12 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9701--01 ~ ; GA15DE.MT |
38423-31X02 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-31X02 Gear-Side9701--01 ~ ; GA15DE.MT |
38423-31X02 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2111 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.75-0.80 |
38424-D2111 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2112 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.80-0.85 |
38424-D2112 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2113 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.85-0.90 |
38424-D2113 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2114 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.90-0.95 |
38424-D2114 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-D2115 Washer-Thrust, Side Gear9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.95-1.00 |
38424-D2115 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9701--01 ~ 9909--01; GA15DE.MT |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9909--01 ~ 0406--01; GA15DE.MT |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-EA000 Pinion-Mate0406--01 ~ ; GA15DE.MT |
38425-EA000 |
from US $44.64 |
||
|
38425Y
|
38425Y
38425-31X02 Pinion-Mate9701--01 ~ 9909--01; GA15DE.MT |
38425-31X02 |
US $57.74 |
||
|
38425Y
|
38425Y
38425-31X07 Pinion-Mate9909--01 ~ 0406--01; GA15DE.MT |
38425-31X07 |
US $64.22 |
||
|
38425Y
|
38425Y
38425-EA000 Pinion-Mate0406--01 ~ ; GA15DE.MT |
38425-EA000 |
from US $44.64 |
||
|
38426Y
|
38426Y
38426-1XF00 Washer-Thrust, Pinion Mate0408--01 ~ ; GA15DE.MT |
38426-1XF00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9701--01 ~ 0408--01; GA15DE.MT |
38426-31X02 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-1XF00 Washer-Thrust, Pinion Mate0408--01 ~ ; GA15DE.MT |
38426-1XF00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-31X02 Washer-Thrust, Pinion Mate9701--01 ~ 0408--01; GA15DE.MT |
38426-31X02 |
US $4.18 |
||
|
38427J
|
38427J
38428-P0100 Pin-Lock, Pinion Shaft9701--01 ~ ; GA15DE.MT |
38428-P0100 |
from US $0.86 |
||
|
38427Y
|
38427Y
38427-50J01 Shaft-Pinion Mate9701--01 ~ ; GA15DE.MT |
38427-50J01 |
US $76.46 |
||
|
38440Y
|
38440Y
38440-76M00 Bearing-Differential Side9701--01 ~ ; GA15DE.MT |
38440-76M00 |
US $187.20 |
||
|
38440Y
|
38440Y
38440-70A00 Bearing-Differential Side9701--01 ~ ; GA15DE.MT |
38440-70A00 |
US $51.26 |
||
|
38440YA
|
38440YA
38440-70A00 Bearing-Differential Side9701--01 ~ ; GA15DE.MT |
38440-70A00 |
US $51.26 |
||
|
38453Y
|
38453Y
38454-76M00 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.44 |
38454-76M00 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M01 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.48 |
38454-76M01 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M02 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.56 |
38454-76M02 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M03 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.60 |
38454-76M03 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M04 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.64 |
38454-76M04 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M05 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.68 |
38454-76M05 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M06 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.72 |
38454-76M06 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M07 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.76 |
38454-76M07 |
US $7.92 |
||
|
38453Y
|
38453Y
38454-76M11 Shim-Adjust, Side Bearing9701--01 ~ 9909--01; GA15DE.MT; ｾﾝﾀｸ T=0.40 |
38454-76M11 |
US $7.92 |
