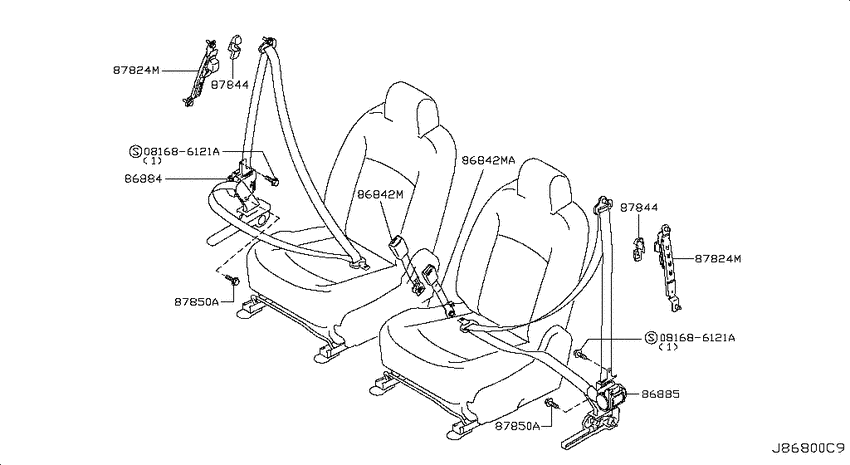

Front seat belt (2007-08-01 ~ 2009-08-01; HB) Diagram Nissan ROGUE
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Engine
- QR25DE
- drive
- 4WD
- transmission
- CVT/MCVT
- grade
- S
- body
- HB
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
86842M
|
86842M
86842-JM01A
Belt assy-front seat buckle
2007-08-01 ~ 2008-06-01; HB; , |
86842-JM01A |
— | ||
|
86842M
|
86842M
86842-JM01B
Belt assy-front seat buckle
2007-08-01 ~ 2008-06-01; HB; , |
86842-JM01B |
— | ||
|
86842M
|
86842M
86842-JM02A
Belt assy-front seat buckle
2008-06-01 ~ 2009-08-01; HB; , |
86842-JM02A |
— | ||
|
86842M
|
86842M
86842-JM02B
Belt assy-front seat buckle
2008-06-01 ~ 2009-08-01; HB; , |
86842-JM02B |
— | ||
|
86842M
|
86842M
86842-JM000
Belt assy-front seat buckle
2007-08-01 ~ 2008-06-01; HB; , |
86842-JM000 |
— | ||
|
86842M
|
86842M
86842-JM00A
Belt assy-front seat buckle
2007-08-01 ~ 2008-06-01; HB; , |
86842-JM00A |
— | ||
|
86842M
|
86842M
86842-JM02A
Belt assy-front seat buckle
2008-06-01 ~ 2009-08-01; HB; , |
86842-JM02A |
— | ||
|
86842M
|
86842M
86842-JM02B
Belt assy-front seat buckle
2008-06-01 ~ 2009-08-01; HB; , |
86842-JM02B |
— | ||
|
86842MA
|
86842MA
86842-JM000
Belt assy-front seat buckle
2007-08-01 ~ 2008-06-01; HB; , |
86842-JM000 |
— | ||
|
86842MA
|
86842MA
86842-JM00A
Belt assy-front seat buckle
2007-08-01 ~ 2008-06-01; HB; , |
86842-JM00A |
— | ||
|
86842MA
|
86842MA
86842-JM02A
Belt assy-front seat buckle
2008-06-01 ~ 2009-08-01; HB; , |
86842-JM02A |
— | ||
|
86842MA
|
86842MA
86842-JM02B
Belt assy-front seat buckle
2008-06-01 ~ 2009-08-01; HB; , |
86842-JM02B |
— | ||
|
86884
|
86884
86884-CZ30A
Belt assy-tongue,pretensioner front rh
2009-07-01 ~ 2009-08-01; HB; , |
86884-CZ30A |
— | ||
|
86884
|
86884
86884-CZ30B
Belt assy-tongue,pretensioner front rh
2009-07-01 ~ 2009-08-01; HB; , |
86884-CZ30B |
— | ||
|
86884
|
86884
86884-JM000
Belt assy-tongue,pretensioner front rh
2007-08-01 ~ 2008-09-01; HB; , |
86884-JM000 |
— | ||
|
86884
|
86884
86884-JM00A
Belt assy-tongue,pretensioner front rh
2007-08-01 ~ 2008-09-01; HB; , |
86884-JM00A |
— | ||
|
86884
|
86884
86884-JM03A
Belt assy-tongue,pretensioner front rh
2008-09-01 ~ 2009-06-01; HB; , |
86884-JM03A |
— | ||
|
86884
|
86884
86884-JM03B
Belt assy-tongue,pretensioner front rh
2008-09-01 ~ 2009-06-01; HB; , |
86884-JM03B |
— | ||
|
86884
|
86884
86884-JM04A
Belt assy-tongue,pretensioner front rh
2009-06-01 ~ 2009-07-01; HB; , |
86884-JM04A |
— | ||
|
86884
|
86884
86884-JM04B
Belt assy-tongue,pretensioner front rh
2009-06-01 ~ 2009-07-01; HB; , |
86884-JM04B |
— | ||
|
86885
|
86885
86885-JM000
Belt assy-tongue,pretensioner front lh
2007-08-01 ~ 2009-06-01; HB; , |
86885-JM000 |
— | ||
|
86885
|
86885
86885-JM00A
Belt assy-tongue,pretensioner front lh
2007-08-01 ~ 2009-06-01; HB; , |
86885-JM00A |
— | ||
|
86885
|
86885
86885-JM04A
Belt assy-tongue,pretensioner front lh
2009-06-01 ~ 2009-08-01; HB; , |
86885-JM04A |
— | ||
|
86885
|
86885
86885-JM04B
Belt assy-tongue,pretensioner front lh
2009-06-01 ~ 2009-08-01; HB; , |
86885-JM04B |
— | ||
|
87824M
|
87824M
87824-JM000
Adjuster-seat belt
2007-08-01 ~ 2009-08-01; HB; , |
87824-JM000 |
— | ||
|
87824M
|
87824M
87824-JM000
Adjuster-seat belt
2007-08-01 ~ 2009-08-01; HB; , |
87824-JM000 |
— | ||
|
87844
|
87844
87844-JM00A
Cover-belt anchor
2007-08-01 ~ 2009-08-01; HB; , |
87844-JM00A |
— | ||
|
87844
|
87844
87844-JM00A
Cover-belt anchor
2007-08-01 ~ 2009-08-01; HB; , |
87844-JM00A |
— | ||
|
87850A
|
87850A
878507990B Bolt-Seat Belt2007-08-01 ~ 2009-08-01; HB; , |
878507990B |
US $3.46 |
||
|
87850A
|
87850A
878507990B Bolt-Seat Belt2007-08-01 ~ 2009-08-01; HB; , |
878507990B |
US $3.46 |
