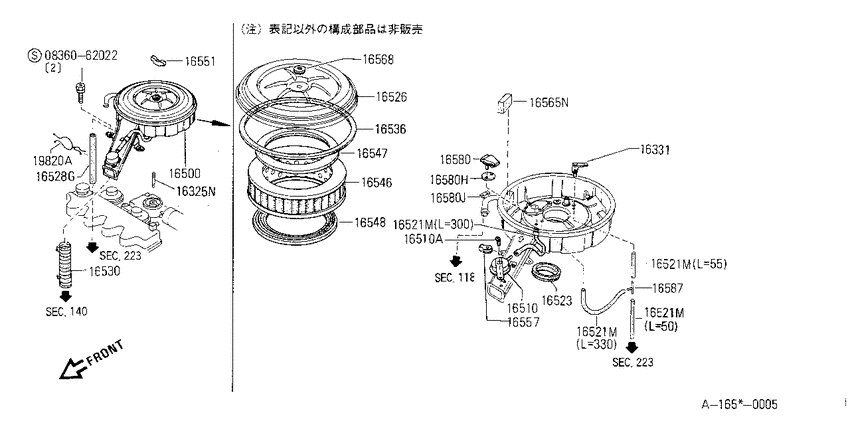

Air cleaner (1989-01-01 ~ ; ALL) Diagram Nissan S-CARGO
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- E15S
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836062022
|
0836062022
08360-62022
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-62022 |
— | ||
|
16325N
|
16325N
16525-G2515 Stud8901--01 ~ ; E15S |
16525-G2515 |
US $3.46 |
||
|
16331
|
16331
16331-01M00 Compensator-Idle8901--01 ~ ; E15S |
16331-01M00 |
US $37.44 |
||
|
16500
|
16500
16500-48A00 ｸﾘ-ﾅ- ｱﾂｾﾝﾌﾞﾘ-,ｴｱ-8901--01 ~ ; E15S |
16500-48A00 |
US $703.75 |
||
|
16510
|
16510
1651001M00
Motor Assy-Vacuum
8901--01 ~ ; E15S |
1651001M00 |
— | ||
|
16510
|
16510
16516-G2100 Bolt8901--01 ~ ; E15S |
16516-G2100 |
US $0.86 |
||
|
16510A
|
16510A
16516-G2100 Bolt8901--01 ~ ; E15S |
16516-G2100 |
US $0.86 |
||
|
16521M
|
16521M
02187-10501 HOSE-VACUUM8901--01 ~ ; E15S; L=50S/#B2320-Y4001 |
02187-10501 |
US $14.11 |
||
|
16521M
|
16521M
02187-13001 HOSE-VACUUM8901--01 ~ ; E15S; L=300S/#B2320-Y4001 |
02187-13001 |
US $4.18 |
||
|
16521M
|
16521M
02187-13301
HOSE-VACUUM
8901--01 ~ ; E15S; L=330S/#B2320-Y4001 |
02187-13301 |
— | ||
|
16521M
|
16521M
16521-01M04 Hose-Vacuum8901--01 ~ ; E15S; L=55S/#B2320-Y4001 |
16521-01M04 |
US $7.20 |
||
|
16521M
|
16521M
02187-10501 HOSE-VACUUM8901--01 ~ ; E15S; L=50S/#B2320-Y4001 |
02187-10501 |
US $14.11 |
||
|
16521M
|
16521M
02187-13001 HOSE-VACUUM8901--01 ~ ; E15S; L=300S/#B2320-Y4001 |
02187-13001 |
US $4.18 |
||
|
16521M
|
16521M
02187-13301
HOSE-VACUUM
8901--01 ~ ; E15S; L=330S/#B2320-Y4001 |
02187-13301 |
— | ||
|
16521M
|
16521M
16521-01M04 Hose-Vacuum8901--01 ~ ; E15S; L=55S/#B2320-Y4001 |
16521-01M04 |
US $7.20 |
||
|
16521M
|
16521M
02187-10501 HOSE-VACUUM8901--01 ~ ; E15S; L=50S/#B2320-Y4001 |
02187-10501 |
US $14.11 |
||
|
16521M
|
16521M
02187-13001 HOSE-VACUUM8901--01 ~ ; E15S; L=300S/#B2320-Y4001 |
02187-13001 |
US $4.18 |
||
|
16521M
|
16521M
02187-13301
HOSE-VACUUM
8901--01 ~ ; E15S; L=330S/#B2320-Y4001 |
02187-13301 |
— | ||
|
16521M
|
16521M
16521-01M04 Hose-Vacuum8901--01 ~ ; E15S; L=55S/#B2320-Y4001 |
16521-01M04 |
US $7.20 |
||
|
16521M
|
16521M
02187-10501 HOSE-VACUUM8901--01 ~ ; E15S; L=50S/#B2320-Y4001 |
02187-10501 |
US $14.11 |
||
|
16521M
|
16521M
02187-13001 HOSE-VACUUM8901--01 ~ ; E15S; L=300S/#B2320-Y4001 |
02187-13001 |
US $4.18 |
||
|
16521M
|
16521M
02187-13301
HOSE-VACUUM
8901--01 ~ ; E15S; L=330S/#B2320-Y4001 |
02187-13301 |
— | ||
|
16521M
|
16521M
16521-01M04 Hose-Vacuum8901--01 ~ ; E15S; L=55S/#B2320-Y4001 |
16521-01M04 |
US $7.20 |
||
|
16523
|
16523
16523-H1000 Insulator8901--01 ~ ; E15S |
16523-H1000 |
US $6.19 |
||
|
16526
|
16526
16526-70A03 Air Cleaner Cover8901--01 ~ ; E15S |
16526-70A03 |
US $33.55 |
||
|
16528G
|
16528G
17336-50A10 Tube-Vacuum8901--01 ~ ; E15S |
17336-50A10 |
US $9.07 |
||
|
16530
|
16530
16530-01M01 Duct-Air8901--01 ~ 9008--01; E15S |
16530-01M01 |
US $36.58 |
||
| replacement | |||||
|
16530
|
16530
A653035N35 ﾀﾞｸﾄ8901--01 ~ 9008--01; E15S |
A653035N35 |
US $69.03 |
||
|
16530
|
16530
16530-01M02 Duct-Air9008--01 ~ ; E15S |
16530-01M02 |
US $13.82 |
||
| replacement | |||||
|
16530
|
16530
A653035N35 ﾀﾞｸﾄ9008--01 ~ ; E15S |
A653035N35 |
US $69.03 |
||
|
16536
|
16536
16547-61A03 Packing8901--01 ~ ; E15S |
16547-61A03 |
US $6.19 |
||
|
16546
|
16546
AY120NS012 Element Assy-Air8901--01 ~ ; E15S |
AY120NS012 |
from US $13.52 |
||
|
16547
|
16547
16547-H1000
Packing
8901--01 ~ ; E15S |
16547-H1000 |
— | ||
| replacement | |||||
|
16547
|
16547
16547-52A00
Packing
8901--01 ~ ; E15S |
16547-52A00 |
— | ||
|
16548
|
16548
16547-52A00
Packing
8901--01 ~ ; E15S |
16547-52A00 |
— | ||
|
16551
|
16551
16551-W7000
Nut-Wing
8901--01 ~ ; E15S |
16551-W7000 |
— | ||
| replacement | |||||
|
16551
|
16551
16551W700A Nut-Wing8901--01 ~ ; E15S |
16551W700A |
from US $4.85 |
||
|
16557
|
16557
16557-01B01 Mounting Rubber8901--01 ~ ; E15S |
16557-01B01 |
US $4.61 |
||
| replacement | |||||
|
16557
|
16557
1655964J01 Mounting Rubber8901--01 ~ ; E15S |
1655964J01 |
US $4.61 |
||
|
16565N
|
16565N
16565U6700 Filter8901--01 ~ ; E15S |
16565U6700 |
US $4.42 |
||
| replacement | |||||
|
16565N
|
16565N
16565-Y4461
Filter
8901--01 ~ ; E15S |
16565-Y4461 |
— | ||
|
16568
|
16568
16568-H7400
Packing
8901--01 ~ ; E15S |
16568-H7400 |
— | ||
| replacement | |||||
|
16568
|
16568
16568-W7000 Packing8901--01 ~ ; E15S |
16568-W7000 |
US $3.06 |
||
|
16580
|
16580
16580-01B01 Intake Air Temperature Sensor8901--01 ~ ; E15S |
16580-01B01 |
US $50.04 |
||
|
16580
|
16580
16529-B9800 Grommet8901--01 ~ ; E15S |
16529-B9800 |
US $1.67 |
||
|
16580
|
16580
16582-H3901 Stopper8901--01 ~ ; E15S |
16582-H3901 |
US $8.87 |
||
|
16580H
|
16580H
16529-B9800 Grommet8901--01 ~ ; E15S |
16529-B9800 |
US $1.67 |
||
|
16580J
|
16580J
16582-H3901 Stopper8901--01 ~ ; E15S |
16582-H3901 |
US $8.87 |
||
|
16587
|
16587
14961-01M13 Connector-3 Way8901--01 ~ ; E15S |
14961-01M13 |
US $4.32 |
||
|
19820A
|
19820A
24220-50A05 Clip8901--01 ~ ; E15S |
24220-50A05 |
US $4.18 |
||
