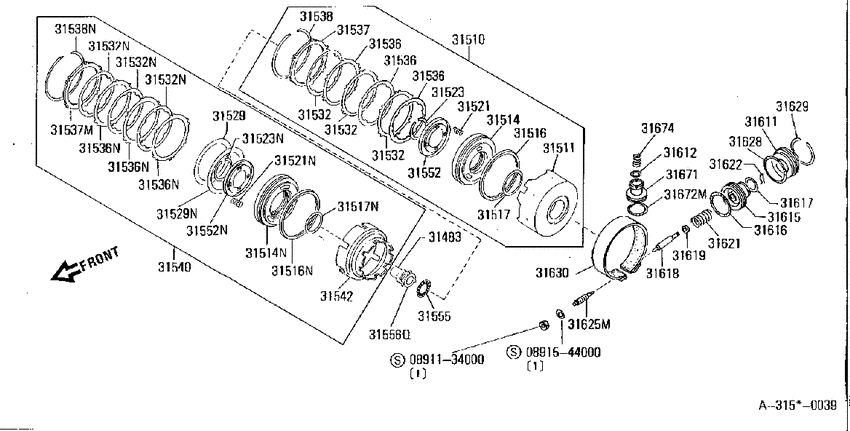

Clutch & band servo (1989-01-01 ~ ; ALL) Diagram Nissan S-CARGO
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- E15S
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891134000
|
0891134000
0891134000
NUTHEX
|
0891134000 |
— | ||
|
31483
|
31483
31405-01X00 Bush-Seal, Sun Gear9005--01 ~ ; AT |
31405-01X00 |
US $22.18 |
||
|
31483
|
31483
31483-01X00 Bush-Seal, Sun Gear8901--01 ~ 9005--01; AT |
31483-01X00 |
US $5.18 |
||
|
31510
|
31510
31510-01X03 Clutch Assy-Front8901--01 ~ ; AT |
31510-01X03 |
US $298.78 |
||
|
31511
|
31511
31511-01X03 Drum-Front Clutch8901--01 ~ ; AT |
31511-01X03 |
US $87.12 |
||
|
31514
|
31514
31514-01X08 Piston Assy-Clutch8901--01 ~ ; AT |
31514-01X08 |
US $42.77 |
||
|
31514
|
31514
31544-01X05 Piston Assy-Clutch8901--01 ~ ; AT |
31544-01X05 |
US $26.06 |
||
|
31514N
|
31514N
31544-01X05 Piston Assy-Clutch8901--01 ~ ; AT |
31544-01X05 |
US $26.06 |
||
|
31516
|
31516
31527-01X00 Seal-Lathe Cut Ring8901--01 ~ ; AT |
31527-01X00 |
US $12.53 |
||
| replacement | |||||
|
31516
|
31516
C1527-01X00
Seal-lathe cut ring
8901--01 ~ ; AT |
C1527-01X00 |
— | ||
|
31516
|
31516
31528-01X01 Seal-Lathe Cut Ring8901--01 ~ ; AT |
31528-01X01 |
US $11.66 |
||
|
31516N
|
31516N
31528-01X01 Seal-Lathe Cut Ring8901--01 ~ ; AT |
31528-01X01 |
US $11.66 |
||
|
31517
|
31517
31517-01X00 Seal-O Ring8901--01 ~ ; AT |
31517-01X00 |
US $6.91 |
||
|
31517
|
31517
31547-01X00 Seal-O Ring8901--01 ~ ; AT |
31547-01X00 |
US $7.06 |
||
|
31517N
|
31517N
31547-01X00 Seal-O Ring8901--01 ~ ; AT |
31547-01X00 |
US $7.06 |
||
|
31521
|
31521
31521-01X02 Spring-Piston Return8901--01 ~ ; AT |
31521-01X02 |
US $6.48 |
||
|
31521
|
31521
31521-01X02 Spring-Piston Return8901--01 ~ ; AT |
31521-01X02 |
US $6.48 |
||
|
31521N
|
31521N
31521-01X02 Spring-Piston Return8901--01 ~ ; AT |
31521-01X02 |
US $6.48 |
||
|
31523
|
31523
31523-01X00 Ring-Snap8901--01 ~ ; AT |
31523-01X00 |
US $2.45 |
||
|
31523
|
31523
31553-01X00 Ring-Snap8901--01 ~ ; AT |
31553-01X00 |
US $6.48 |
||
|
31523N
|
31523N
31553-01X00 Ring-Snap8901--01 ~ ; AT |
31553-01X00 |
US $6.48 |
||
|
31529
|
31529
31535-01X00 Plate-Dished8901--01 ~ ; AT |
31535-01X00 |
US $11.38 |
||
|
31529
|
31529
31535-01X01 Plate-Dished8901--01 ~ ; AT |
31535-01X01 |
US $11.38 |
||
|
31529N
|
31529N
31535-01X01 Plate-Dished8901--01 ~ ; AT |
31535-01X01 |
US $11.38 |
||
|
31532
|
31532
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532
|
31532
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532
|
31532
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532
|
31532
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532
|
31532
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532
|
31532
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532N
|
31532N
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532N
|
31532N
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31532N
|
31532N
31532-01X01 Plate Assy-Drive8901--01 ~ ; AT |
31532-01X01 |
US $18.58 |
||
|
31536
|
31536
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536
|
31536
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536
|
31536
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536
|
31536
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536
|
31536
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536
|
31536
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536N
|
31536N
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536N
|
31536N
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31536N
|
31536N
31536-01X00 Plate-Driven8901--01 ~ ; AT |
31536-01X00 |
US $5.90 |
||
|
31537
|
31537
31537-01X00 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.6 |
31537-01X00 |
US $56.74 |
||
|
31537
|
31537
31537-01X01 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.8 |
31537-01X01 |
US $56.74 |
||
|
31537
|
31537
31537-01X02 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.0 |
31537-01X02 |
US $56.74 |
||
|
31537
|
31537
31537-01X03 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.2 |
31537-01X03 |
US $56.74 |
||
|
31537
|
31537
31537-01X04 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.4 |
31537-01X04 |
US $56.74 |
||
|
31537
|
31537
31537-01X05 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.4 |
31537-01X05 |
US $56.74 |
||
|
31537
|
31537
31537-01X00 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.6 |
31537-01X00 |
US $56.74 |
||
|
31537
|
31537
31537-01X01 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.8 |
31537-01X01 |
US $56.74 |
||
|
31537
|
31537
31537-01X02 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.0 |
31537-01X02 |
US $56.74 |
||
|
31537
|
31537
31537-01X03 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.2 |
31537-01X03 |
US $56.74 |
||
|
31537
|
31537
31537-01X04 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.4 |
31537-01X04 |
US $56.74 |
||
|
31537
|
31537
31537-01X05 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.4 |
31537-01X05 |
US $56.74 |
||
|
31537M
|
31537M
31537-01X00 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.6 |
31537-01X00 |
US $56.74 |
||
|
31537M
|
31537M
31537-01X01 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.8 |
31537-01X01 |
US $56.74 |
||
|
31537M
|
31537M
31537-01X02 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.0 |
31537-01X02 |
US $56.74 |
||
|
31537M
|
31537M
31537-01X03 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.2 |
31537-01X03 |
US $56.74 |
||
|
31537M
|
31537M
31537-01X04 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=4.4 |
31537-01X04 |
US $56.74 |
||
|
31537M
|
31537M
31537-01X05 Plate-Retaining8901--01 ~ ; AT; ｾﾝﾀｸ T=3.4 |
31537-01X05 |
US $56.74 |
||
|
31538
|
31538
31538-01X00 Ring-Snap8901--01 ~ ; AT |
31538-01X00 |
US $6.48 |
||
|
31538
|
31538
31568-21X00 Ring-Snap, Transfer Clutch Drum8901--01 ~ ; AT |
31568-21X00 |
US $4.18 |
||
|
31538N
|
31538N
31568-21X00 Ring-Snap, Transfer Clutch Drum8901--01 ~ ; AT |
31568-21X00 |
US $4.18 |
||
|
31540
|
31540
31540-01X61 Clutch Assy-Rear8901--01 ~ ; AT |
31540-01X61 |
US $379.49 |
||
|
31542
|
31542
31539-01X04 Drum-Rear Clutch8901--01 ~ ; AT |
31539-01X04 |
US $68.11 |
||
|
31552
|
31552
31522-01X00 Retainer-Spring8901--01 ~ ; AT |
31522-01X00 |
US $4.18 |
||
|
31552
|
31552
31522-01X01 Retainer-Spring9009--01 ~ ; AT |
31522-01X01 |
US $4.18 |
||
|
31552
|
31552
31552-01X00 Retainer-Spring8901--01 ~ 9009--01; AT |
31552-01X00 |
US $4.18 |
||
|
31552N
|
31552N
31522-01X01 Retainer-Spring9009--01 ~ ; AT |
31522-01X01 |
US $4.18 |
||
|
31552N
|
31552N
31552-01X00 Retainer-Spring8901--01 ~ 9009--01; AT |
31552-01X00 |
US $4.18 |
||
|
31555
|
31555
31555-X0100 Bearing-Needle, Thrust8901--01 ~ ; AT |
31555-X0100 |
US $6.19 |
||
|
31556Q
|
31556Q
31435-01X02 Race-Bearing, Pump Cover9006--01 ~ ; AT |
31435-01X02 |
US $5.33 |
||
|
31556Q
|
31556Q
31556-01X00 Race-Bearing, Pump Cover8901--01 ~ 9006--01; AT |
31556-01X00 |
US $2.45 |
||
|
31611
|
31611
31611-01X02
Retainer-Servo Piston
8901--01 ~ ; AT |
31611-01X02 |
— | ||
|
31612
|
31612
31673-01X01 Seal-Lathe Cut Ring8901--01 ~ ; AT |
31673-01X01 |
US $6.91 |
||
| replacement | |||||
|
31612
|
31612
C1673-01X01
Seal-lathe cut ring
8901--01 ~ ; AT |
C1673-01X01 |
— | ||
|
31615
|
31615
31615-01X02
Piston-Band Servo
8901--01 ~ ; AT; 68-44 |
31615-01X02 |
— | ||
|
31616
|
31616
31616-01X00
Seal-Lathe Cut Ring
8901--01 ~ ; AT; 68 |
31616-01X00 |
— | ||
|
31617
|
31617
31617-X0100 Seal-Lathe Cut Ring8901--01 ~ ; AT; 44 |
31617-X0100 |
US $2.68 |
||
|
31618
|
31618
31618-01X00 Stem-Band Servo Piston8901--01 ~ ; AT |
31618-01X00 |
US $5.18 |
||
|
31619
|
31619
31619-01X00 Washer-Piston Stem8901--01 ~ ; AT |
31619-01X00 |
US $0.86 |
||
|
31621
|
31621
31621-01X00
Spring-Piston Return
8901--01 ~ ; AT |
31621-01X00 |
— | ||
|
31622
|
31622
31622-01X00
Retainer-Snap, Stem Band
8901--01 ~ ; AT |
31622-01X00 |
— | ||
|
31625M
|
31625M
31625-01X00 Pin-Anchor End8901--01 ~ ; AT |
31625-01X00 |
US $2.45 |
||
|
31628
|
31628
31628-01X00
Seal-O Ring
8901--01 ~ ; AT |
31628-01X00 |
— | ||
|
31629
|
31629
31629-01X00
Ring-Snap, Stem Band
8901--01 ~ ; AT |
31629-01X00 |
— | ||
|
31630
|
31630
31630-01X00 Band Assy-Brake8901--01 ~ ; AT |
31630-01X00 |
US $82.66 |
||
|
31671
|
31671
31675-01X03 Piston-Accumulator8901--01 ~ ; AT |
31675-01X03 |
US $10.80 |
||
|
31672M
|
31672M
31672-01X00 Seal-Lathe Cut Ring8901--01 ~ ; AT |
31672-01X00 |
US $6.91 |
||
| replacement | |||||
|
31672M
|
31672M
C1672-01X00
Seal-lathe cut ring
8901--01 ~ ; AT |
C1672-01X00 |
— | ||
|
31674
|
31674
31674-01X02 Spring-Accumulator Servo8901--01 ~ ; AT |
31674-01X02 |
US $2.45 |
||
