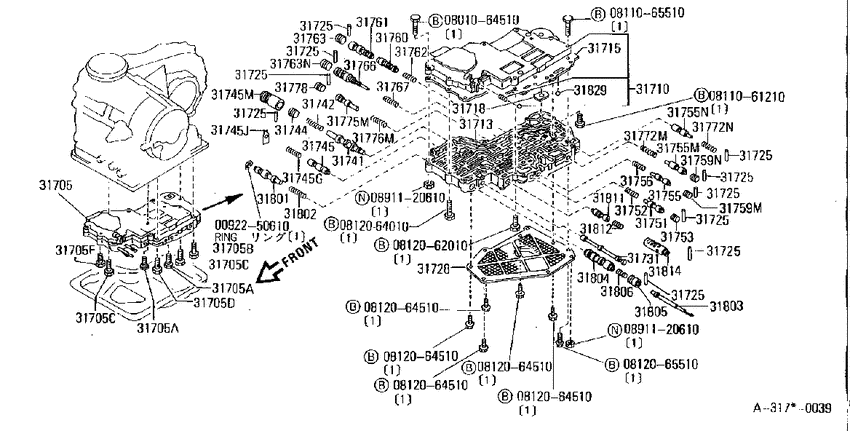

Control valve (atm) (1989-01-01 ~ ; ALL) Diagram Nissan S-CARGO
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- E15S
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
0801064510
|
0801064510
08010-64510
Bolt-hexagon
|
08010-64510 |
— | ||
|
0811061210
|
0811061210
08110-61210
Bolt-hexagon
|
08110-61210 |
— | ||
|
0811065510
|
0811065510
08110-65510
Bolt-hexagon
|
08110-65510 |
— | ||
|
0812062010
|
0812062010
08120-62010
Bolt-hexagon
|
08120-62010 |
— | ||
|
0812064010
|
0812064010
08120-64010
Bolt-hexagon
|
08120-64010 |
— | ||
|
0812064510
|
0812064510
08120-64510 Bolt-hexagon |
08120-64510 |
US $1.73 |
||
|
0812064510
|
0812064510
08120-64510 Bolt-hexagon |
08120-64510 |
US $1.73 |
||
|
0812064510
|
0812064510
08120-64510 Bolt-hexagon |
08120-64510 |
US $1.73 |
||
|
0812064510
|
0812064510
08120-64510 Bolt-hexagon |
08120-64510 |
US $1.73 |
||
|
0812064510
|
0812064510
08120-64510 Bolt-hexagon |
08120-64510 |
US $1.73 |
||
|
0812065510
|
0812065510
08120-65510 Bolt-hexagon |
08120-65510 |
US $2.45 |
||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
31705
|
31705
31705-15X19 Valve Assy-Control8901--01 ~ ; AT |
31705-15X19 |
US $628.70 |
||
|
31705
|
31705
01125-01275 BOLT8901--01 ~ ; AT |
01125-01275 |
US $1.73 |
||
|
31705
|
31705
01125-01275 BOLT8901--01 ~ ; AT |
01125-01275 |
US $1.73 |
||
|
31705
|
31705
01125-01274 BOLT8901--01 ~ ; AT |
01125-01274 |
US $1.73 |
||
|
31705
|
31705
01125-01273 BOLT8901--01 ~ ; AT |
01125-01273 |
US $1.73 |
||
|
31705
|
31705
01125-01272 BOLT8901--01 ~ ; AT |
01125-01272 |
US $1.73 |
||
|
31705A
|
31705A
01125-01275 BOLT8901--01 ~ ; AT |
01125-01275 |
US $1.73 |
||
|
31705A
|
31705A
01125-01275 BOLT8901--01 ~ ; AT |
01125-01275 |
US $1.73 |
||
|
31705B
|
31705B
01125-01275 BOLT8901--01 ~ ; AT |
01125-01275 |
US $1.73 |
||
|
31705C
|
31705C
01125-01274 BOLT8901--01 ~ ; AT |
01125-01274 |
US $1.73 |
||
|
31705C
|
31705C
01125-01274 BOLT8901--01 ~ ; AT |
01125-01274 |
US $1.73 |
||
|
31705D
|
31705D
01125-01273 BOLT8901--01 ~ ; AT |
01125-01273 |
US $1.73 |
||
|
31705E
|
31705E
01125-01272 BOLT8901--01 ~ ; AT |
01125-01272 |
US $1.73 |
||
|
31710
|
31710
31710-01X03 Body Assy-Upper Control Valve8901--01 ~ ; AT |
31710-01X03 |
US $108.72 |
||
|
31713
|
31713
31713-01X14 Body-Lower, Control Valve8901--01 ~ ; AT |
31713-01X14 |
US $131.47 |
||
|
31715
|
31715
31715-03X84 Plate-Separator8901--01 ~ ; AT |
31715-03X84 |
US $23.18 |
||
|
31718
|
31718
31718-01X00 Plate-Support, Accumulator8901--01 ~ ; AT |
31718-01X00 |
US $2.45 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31725
|
31725
31725-01X00 Pin-Parallel, Control Valve8901--01 ~ ; AT |
31725-01X00 |
from US $1.40 |
||
|
31728
|
31728
31728-01X09 Strainer Assy-Oil8901--01 ~ ; AT |
31728-01X09 |
US $30.38 |
||
|
31731
|
31731
31731-01X04 Valve-Manual8901--01 ~ ; AT |
31731-01X04 |
US $20.30 |
||
|
31741
|
31741
31741-01X03 Valve-Pressure Regulator8901--01 ~ ; AT |
31741-01X03 |
US $19.58 |
||
|
31742
|
31742
31742-01X02 Spring-Pressure Regulator8901--01 ~ ; AT |
31742-01X02 |
US $2.45 |
||
|
31744
|
31744
31744-01X01 Plug-Pressure Regulator8901--01 ~ ; AT |
31744-01X01 |
US $10.51 |
||
|
31745
|
31745
31746-01X00 Valve-Back Up8901--01 ~ ; AT |
31746-01X00 |
US $11.52 |
||
|
31745
|
31745
31747-01X00 Spring-Back Up8901--01 ~ ; AT |
31747-01X00 |
US $1.73 |
||
|
31745
|
31745
31748-01X01 Plate-Retainer, Back Up8901--01 ~ ; AT |
31748-01X01 |
US $0.86 |
||
|
31745
|
31745
31745-01X01 Sleeve-Pressure Regulator8901--01 ~ ; AT |
31745-01X01 |
US $11.66 |
||
|
31745G
|
31745G
31747-01X00 Spring-Back Up8901--01 ~ ; AT |
31747-01X00 |
US $1.73 |
||
|
31745J
|
31745J
31748-01X01 Plate-Retainer, Back Up8901--01 ~ ; AT |
31748-01X01 |
US $0.86 |
||
|
31745M
|
31745M
31745-01X01 Sleeve-Pressure Regulator8901--01 ~ ; AT |
31745-01X01 |
US $11.66 |
||
|
31751
|
31751
31751-01X00 Valve-Pressure Modifier8901--01 ~ ; AT |
31751-01X00 |
US $6.34 |
||
|
31752
|
31752
31742-01X03 Spring-Pressure Modifier8901--01 ~ ; AT |
31742-01X03 |
US $0.86 |
||
|
31753
|
31753
31753-01X00 Plug8901--01 ~ ; AT |
31753-01X00 |
US $5.18 |
||
|
31755
|
31755
31755-01X00 Valve-Spool8901--01 ~ ; AT |
31755-01X00 |
US $6.34 |
||
|
31755
|
31755
31755-01X00 Valve-Spool8901--01 ~ ; AT |
31755-01X00 |
US $6.34 |
||
|
31755
|
31755
31755-01X00 Valve-Spool8901--01 ~ ; AT |
31755-01X00 |
US $6.34 |
||
|
31755M
|
31755M
31755-01X00 Valve-Spool8901--01 ~ ; AT |
31755-01X00 |
US $6.34 |
||
|
31755N
|
31755N
31755-01X00 Valve-Spool8901--01 ~ ; AT |
31755-01X00 |
US $6.34 |
||
|
31756
|
31756
31742-01X07 Spring-1St Reducing8901--01 ~ ; AT |
31742-01X07 |
US $0.86 |
||
|
31759M
|
31759M
31759-01X00 Plug8901--01 ~ ; AT |
31759-01X00 |
US $4.18 |
||
|
31759N
|
31759N
31759-01X00 Plug8901--01 ~ ; AT |
31759-01X00 |
US $4.18 |
||
|
31760
|
31760
31760-01X03 Valve-1St & 2Nd Control8901--01 ~ ; AT |
31760-01X03 |
US $14.40 |
||
|
31761
|
31761
31761-01X00 Valve-1St & 2Nd Shift8901--01 ~ ; AT |
31761-01X00 |
US $8.93 |
||
|
31762
|
31762
31762-01X05 Spring-Valve, Shift8901--01 ~ ; AT |
31762-01X05 |
US $0.86 |
||
|
31763
|
31763
31763-21X02 Plug8901--01 ~ ; AT |
31763-21X02 |
US $5.90 |
||
|
31763
|
31763
31763-01X00 Plug-Pressure Regulator8901--01 ~ ; AT |
31763-01X00 |
US $5.18 |
||
|
31763N
|
31763N
31763-01X00 Plug-Pressure Regulator8901--01 ~ ; AT |
31763-01X00 |
US $5.18 |
||
|
31766
|
31766
31766-01X10 Valve-2Nd & 3Rd Shift8901--01 ~ ; AT |
31766-01X10 |
US $10.08 |
||
|
31767
|
31767
31762-01X06 Spring-Shift8901--01 ~ ; AT |
31762-01X06 |
US $0.86 |
||
|
31772M
|
31772M
31756-01X00 Spring-1St Reducing8901--01 ~ ; AT |
31756-01X00 |
US $0.86 |
||
|
31772N
|
31772N
31736-01X00 Spring-2Nd & 3Rd Timing8901--01 ~ ; AT |
31736-01X00 |
US $0.86 |
||
|
31775M
|
31775M
31775-01X02 Valve-3Rd & 2Nd Down Shift8901--01 ~ ; AT |
31775-01X02 |
US $17.57 |
||
|
31776M
|
31776M
31762-01X04 Spring-3Rd & 2Nd Down Shift8901--01 ~ ; AT |
31762-01X04 |
US $0.86 |
||
|
31778
|
31778
31778-21X02 Plug8901--01 ~ ; AT |
31778-21X02 |
US $5.76 |
||
|
31801
|
31801
31801-01X02 Valve-Throttle Vacuum8901--01 ~ ; AT |
31801-01X02 |
US $6.34 |
||
|
31802
|
31802
31802-01X01 Spring-Throttle Relief8901--01 ~ ; AT |
31802-01X01 |
US $1.73 |
||
|
31803
|
31803
31803-01X00 Valve-Detent8901--01 ~ ; AT |
31803-01X00 |
US $19.30 |
||
|
31804
|
31804
31804-01X00 Valve-Sleeve Fail Safe8901--01 ~ ; AT |
31804-01X00 |
US $24.19 |
||
|
31805
|
31805
31805-01X00 Plug-Throttle8901--01 ~ ; AT |
31805-01X00 |
US $7.20 |
||
|
31806
|
31806
31806-01X00 Spring-Fail Safe8901--01 ~ ; AT |
31806-01X00 |
US $0.86 |
||
|
31811
|
31811
31811-01X04 Valve-Throttle Modifier8901--01 ~ ; AT |
31811-01X04 |
US $6.19 |
||
|
31812
|
31812
31742-01X09 Spring-Throttle Modifier8901--01 ~ ; AT |
31742-01X09 |
US $0.86 |
||
|
31814
|
31814
31814-01X03 Sleeve-Throttle Modifier8901--01 ~ ; AT |
31814-01X03 |
US $60.19 |
||
|
31829
|
31829
31829-68300 Ball-Steel8901--01 ~ ; AT |
31829-68300 |
US $1.73 |
