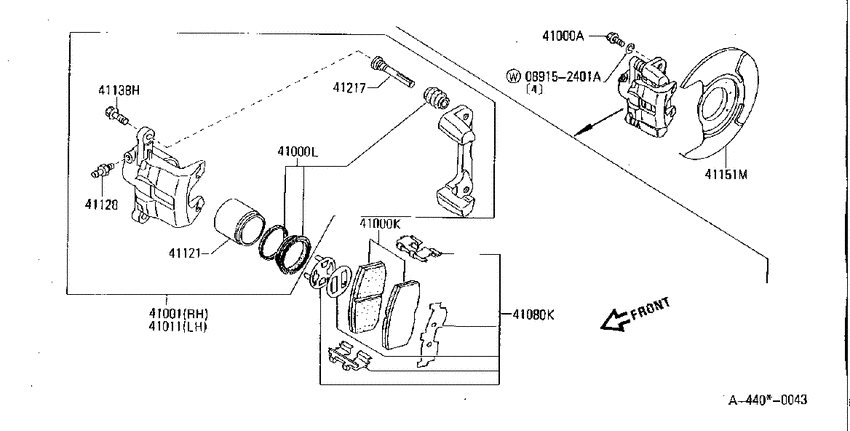

Front brake (1989-01-01 ~ ; ALL) Diagram Nissan S-CARGO
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- E15S
- transmission
- AT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
41000A
|
41000A
41250-01A00 Bolt8901--01 ~ ; E15S |
41250-01A00 |
from US $2.11 |
||
|
41000K
|
41000K
AY040NS802
Pad Kit-Disc Brake
8901--01 ~ ; E15S; ﾐｷﾞ ﾄ ﾋﾀﾞﾘ ﾖｳ |
AY040NS802 |
— | ||
|
41000L
|
41000L
AY600NS001 Seal Kit-Disc Brake8901--01 ~ ; E15S |
AY600NS001 |
US $41.76 |
||
|
41001
|
41001
41001-05A90 Caliper Assy-Front Rh, W/o Pads Or Shims8901--01 ~ 8905--01; E15S |
41001-05A90 |
US $298.78 |
||
| replacement | |||||
|
41001
|
41001
41001-62A01
Caliper Assy-Front Rh, W/o Pad & Shim
8901--01 ~ 8905--01; E15S |
41001-62A01 |
— | ||
|
41001
|
41001
41001-61A01 Caliper Assy-Front Rh, W/o Pads Or Shims8905--01 ~ ; E15S |
41001-61A01 |
US $298.78 |
||
| replacement | |||||
|
41001
|
41001
41001-62A01
Caliper Assy-Front Rh, W/o Pad & Shim
8905--01 ~ ; E15S |
41001-62A01 |
— | ||
|
41011
|
41011
41011-05A90 Caliper Assy-Front Lh, W/o Pads Or Shims8901--01 ~ 8905--01; E15S |
41011-05A90 |
US $298.78 |
||
| replacement | |||||
|
41011
|
41011
41011-62A01
Caliper Assy-Front Lh, W/o Pad & Shim
8901--01 ~ 8905--01; E15S |
41011-62A01 |
— | ||
|
41011
|
41011
41011-61A01 Caliper Assy-Front Lh, W/o Pads Or Shims8905--01 ~ ; E15S |
41011-61A01 |
US $298.78 |
||
| replacement | |||||
|
41011
|
41011
41011-62A01
Caliper Assy-Front Lh, W/o Pad & Shim
8905--01 ~ ; E15S |
41011-62A01 |
— | ||
|
41080K
|
41080K
41080-05A28 Hardware Kit-Front Disc Brake Pad8901--01 ~ ; E15S |
41080-05A28 |
US $56.59 |
||
|
41121
|
41121
4112101A01 Piston-Cylinder8901--01 ~ ; E15S |
4112101A01 |
US $35.14 |
||
|
41128
|
41128
41128-21010
Screw-Bleeder
8901--01 ~ ; E15S |
41128-21010 |
— | ||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
8901--01 ~ ; E15S |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt8901--01 ~ ; E15S |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41151-03A10 Plate-Baffle8901--01 ~ ; E15S |
41151-03A10 |
US $21.60 |
||
|
41217
|
41217
4113901A01 Pin8901--01 ~ ; E15S |
4113901A01 |
from US $7.63 |
||
