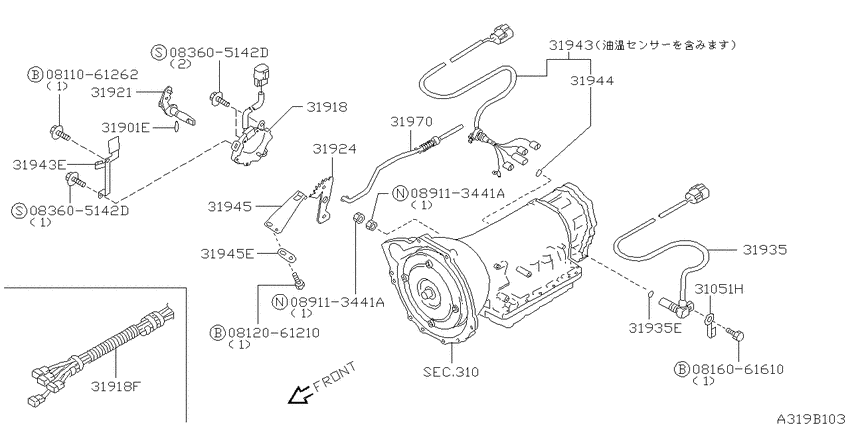

Control switch & system (1999-09-01 ~ 2002-11-01; AT) Diagram Nissan SAFARI
- Year
- 1999 - 2002
- Sales region
- Japan
- Engine
- TD42T
- transmission
- AT
- grade
- GRL
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0812061210
|
0812061210
08120-61210
Bolt-hexagon
|
08120-61210 |
— | ||
|
0816061610
|
0816061610
08160-61610
Bolt-hexagon
|
08160-61610 |
— | ||
|
083605142D
|
083605142D
08360-5142D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5142D |
— | ||
|
083605142D
|
083605142D
08360-5142D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5142D |
— | ||
|
089113441A
|
089113441A
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
089113441A
|
089113441A
08911-3441A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-3441A |
— | ||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
31051H
|
31051H
24210-89944 Clamp9909--01 ~ 0211--01; AT |
24210-89944 |
US $3.46 |
||
|
31901E
|
31901E
3190641X03 Pin-Spring9909--01 ~ 0211--01; AT |
3190641X03 |
US $1.73 |
||
|
31918
|
31918
31918-52X10
Switch Assy-Pnp(Inhibitor)
9909--01 ~ 0211--01; TD42T.AT |
31918-52X10 |
— | ||
|
31918
|
31918
24270-51X05 Protector-Harness9909--01 ~ 0211--01; TD42T.AT |
24270-51X05 |
US $10.80 |
||
|
31918F
|
31918F
24270-51X05 Protector-Harness9909--01 ~ 0211--01; TD42T.AT |
24270-51X05 |
US $10.80 |
||
|
31921
|
31921
31920-41X00 Shaft Assy-Manual9909--01 ~ 0211--01; AT |
31920-41X00 |
US $24.19 |
||
|
31924
|
31924
31924-41X03 Plate Assy-Manual9909--01 ~ 0211--01; AT |
31924-41X03 |
US $21.89 |
||
|
31935
|
31935
31935-52X09 Sensor Assy-Revolution9909--01 ~ 0211--01; TD42T.AT |
31935-52X09 |
US $124.42 |
||
|
31935
|
31935
3152641X05 Seal-O Ring9909--01 ~ 0211--01; AT |
3152641X05 |
US $4.03 |
||
|
31935E
|
31935E
3152641X05 Seal-O Ring9909--01 ~ 0211--01; AT |
3152641X05 |
US $4.03 |
||
|
31943
|
31943
31943-51X68
Terminal Assy
9909--01 ~ 0211--01; TD42T.AT |
31943-51X68 |
— | ||
|
31943
|
31943
31376-51X00 Clip-Harness9909--01 ~ 0211--01; AT |
31376-51X00 |
US $1.73 |
||
|
31943E
|
31943E
31376-51X00 Clip-Harness9909--01 ~ 0211--01; AT |
31376-51X00 |
US $1.73 |
||
|
31944
|
31944
3152641X04 Seal-O Ring, Terminal9909--01 ~ 0211--01; (TB45E+TD42T).AT |
3152641X04 |
US $3.88 |
||
|
31945
|
31945
31945-71X01 Spring-Detent9909--01 ~ 0211--01; AT |
31945-71X01 |
US $6.19 |
||
|
31945
|
31945
31437-41X04 Spacer9909--01 ~ 0211--01; AT |
31437-41X04 |
US $0.86 |
||
|
31945E
|
31945E
31437-41X04 Spacer9909--01 ~ 0211--01; AT |
31437-41X04 |
US $0.86 |
||
|
31970
|
31970
31970-51X01 Rod Assy-Parking9909--01 ~ 0211--01; AT |
31970-51X01 |
US $7.49 |
||
