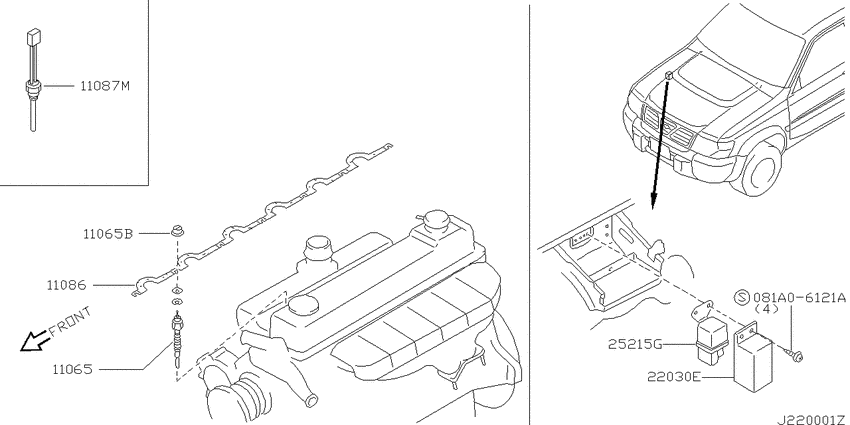

Ignition System (1999-09-01 ~ 2002-11-01; TD42T) Diagram Nissan SAFARI
- Year
- 1999 - 2002
- Sales region
- Japan
- Engine
- TD42T
- transmission
- AT
- grade
- GRL
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081A06121A
|
081A06121A
081A0-6121A BOLTHEX |
081A0-6121A |
US $0.87 |
||
|
11065
|
11065
1106531N00 Plug-Glow9909--01 ~ 0211--01; TD42T; [B512] |
1106531N00 |
US $57.60 |
||
|
11065
|
11065
110660W800 Nut9909--01 ~ 0211--01; TD42T |
110660W800 |
US $2.88 |
||
|
11065B
|
11065B
110660W800 Nut9909--01 ~ 0211--01; TD42T |
110660W800 |
US $2.88 |
||
|
11086
|
11086
1108606J00
Cable Assy
9909--01 ~ 0104--01; TD42T |
1108606J00 |
— | ||
| replacement | |||||
|
11086
|
11086
11086-06J01 Cable Assy9909--01 ~ 0104--01; TD42T |
11086-06J01 |
US $36.45 |
||
|
11086
|
11086
11086-06J01 Cable Assy0104--01 ~ 0211--01; TD42T |
11086-06J01 |
US $36.45 |
||
|
11087M
|
11087M
22698-05D00 Resestor-Dropping9909--01 ~ 0211--01; TD42T |
22698-05D00 |
US $252.28 |
||
|
22030E
|
22030E
25234-VB300 Bracket-Relay9909--01 ~ 0211--01; TD42T |
25234-VB300 |
US $6.09 |
||
|
25215G
|
25215G
25230-80A00 Relay Assy-Glow Plug9909--01 ~ 0211--01; TD42T |
25230-80A00 |
US $53.42 |
||
