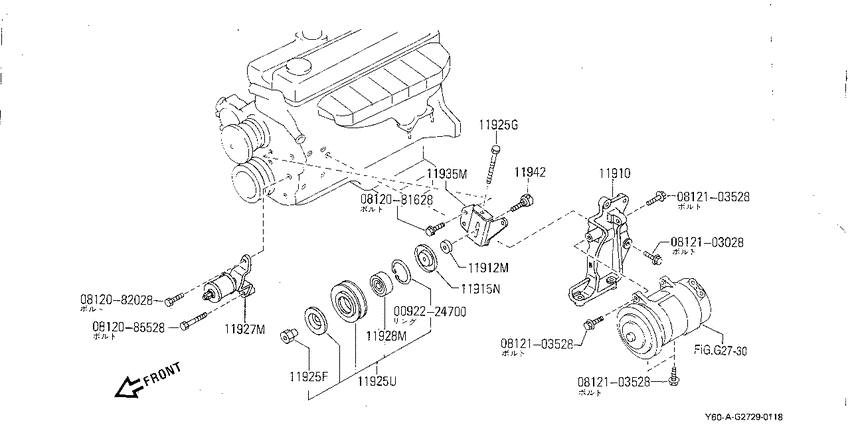

Compressor mounting & fitting (1987-10-01 ~ ; TD42) Diagram Nissan SAFARI
- Year
- 1988 - 1993
- Sales region
- Japan
- Engine
- TD42
- transmission
- AT
- Number of doors
- 2D
- grade
- GR
- body
- HT
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092224700
|
0092224700
00922-24700 RING-SNAP |
00922-24700 |
US $2.45 |
||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812085528
|
0812085528
08120-85528
Bolt-hexagon
|
08120-85528 |
— | ||
|
0812103028
|
0812103028
08121-03028
Bolt-hexagon
|
08121-03028 |
— | ||
|
0812103528
|
0812103528
08121-03528
Bolt-hexagon
|
08121-03528 |
— | ||
|
0812103528
|
0812103528
08121-03528
Bolt-hexagon
|
08121-03528 |
— | ||
|
0812103528
|
0812103528
08121-03528
Bolt-hexagon
|
08121-03528 |
— | ||
|
11910
|
11910
11910-06J00 Bracket-Compressor8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
11910-06J00 |
US $373.82 |
||
|
11912M
|
11912M
33023-90000 Spacer-Idler Pulley8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
33023-90000 |
US $5.33 |
||
|
11915N
|
11915N
11915-J5502 Cover-Dust8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
11915-J5502 |
US $5.76 |
||
|
11925F
|
11925F
11927-Y7500 Bolt8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
11927-Y7500 |
US $12.38 |
||
|
11925G
|
11925G
0111116144 BOLT-ADJUST8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
0111116144 |
US $2.45 |
||
|
11925U
|
11925U
23150-10G00 Pulley-Power Steering8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
23150-10G00 |
US $155.52 |
||
|
11927M
|
11927M
11925-06J01 Roller Assy8710--01 ~ 9110--01; 9(HT+V/LR+V/HR).AT *(HT+V/HR).MT *V/LR.DX *V/LR.(AD+GR).MT; *=ｴｱｺﾝ ﾂｷ ｼﾖｳ |
11925-06J01 |
US $304.44 |
||
|
11928M
|
11928M
11928-J5500 Bearing-Ball, Idler Pulley8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
11928-J5500 |
US $15.84 |
||
|
11935M
|
11935M
11926-06J01 Bracket-Idler Pulley8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
11926-06J01 |
US $84.97 |
||
|
11942
|
11942
69763-10G01 Shaft8710--01 ~ 9102--01; *(HT+V/LR+V/HR); ｴｱｺﾝ ﾂｷ ｼﾖｳ |
69763-10G01 |
US $20.30 |
||
|
11942
|
11942
11948-06J00 Bolt8710--01 ~ 8712--01; TD42 |
11948-06J00 |
US $4.18 |
||
|
11942
|
11942
1194806J01 Bolt-Adjust8712--01 ~ 9102--01; HT +V/HR +V/LR.(AD+GR) *V/LR.DX; |
1194806J01 |
US $4.85 |
||
|
11942
|
11942
11942-06J00
Bracket-Adjust Bolt
8710--01 ~ 9102--01; HT +V/HR +V/LR.(AD+GR) *V/LR.DX; |
11942-06J00 |
— | ||
| replacement | |||||
|
11942
|
11942
11942-06J0A Bracket-Adjust Bolt8710--01 ~ 9102--01; HT +V/HR +V/LR.(AD+GR) *V/LR.DX; |
11942-06J0A |
from US $11.84 |
||
