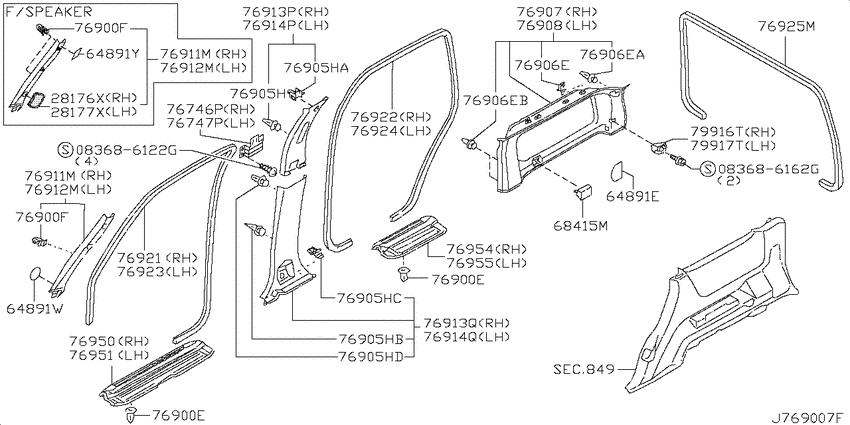

Body side trimming (2002-11-01 ~ ; W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
28176X
|
28176X
76980-VB201 Grille-Front Speaker, Rh0211--01 ~ 0408--01; W |
76980-VB201 |
US $15.66 |
||
|
28176X
|
28176X
76980-VC700 Grille-Front Speaker, Rh0408--01 ~ 0511--01; W |
76980-VC700 |
US $8.78 |
||
|
28176X
|
28176X
76980-VD200 Grille-Front Speaker, Rh0408--01 ~ 0607--01; W |
76980-VD200 |
US $8.78 |
||
|
28177X
|
28177X
76981-VB201 Grille-Front Speaker, Lh0211--01 ~ 0408--01; W |
76981-VB201 |
US $15.66 |
||
|
28177X
|
28177X
76981-VC700 Grille-Front Speaker, Lh0408--01 ~ 0511--01; W |
76981-VC700 |
US $8.78 |
||
|
28177X
|
28177X
76981-VD200 Grille-Front Speaker, Lh0408--01 ~ 0607--01; W |
76981-VD200 |
US $8.78 |
||
|
64891E
|
64891E
79950-VB000 Cover-Hole0211--01 ~ ; W |
79950-VB000 |
US $5.27 |
||
|
64891W
|
64891W
64892W5000 Unit Assy-Divider Tachometer0211--01 ~ 0408--01; W |
64892W5000 |
from US $0.72 |
||
|
64891Y
|
64891Y
90659-H9810 Cover-Hole0211--01 ~ ; W |
90659-H9810 |
US $0.86 |
||
|
68415M
|
68415M
84946-VB001
Cap
0211--01 ~ 0408--01; W |
84946-VB001 |
— | ||
|
68415M
|
68415M
84946-VC700 Cap0408--01 ~ 0511--01; W |
84946-VC700 |
US $13.97 |
||
|
68415M
|
68415M
84946VD200 Cap0408--01 ~ 0607--01; W |
84946VD200 |
US $6.38 |
||
|
76746P
|
76746P
76918-VC000 Bracket-Trim Mounting, Rh0211--01 ~ 0408--01; W |
76918-VC000 |
US $17.71 |
||
|
76747P
|
76747P
76919-VC000 Bracket-Trim Mounting, Lh0211--01 ~ 0408--01; W |
76919-VC000 |
US $17.71 |
||
|
76900E
|
76900E
0155303643 CLIP0211--01 ~ ; W |
0155303643 |
from US $0.93 |
||
|
76900E
|
76900E
0155303643 CLIP0211--01 ~ ; W |
0155303643 |
from US $0.93 |
||
|
76900F
|
76900F
0155400181 CLIP0211--01 ~ ; W; ﾋﾀﾞﾘ |
0155400181 |
from US $0.80 |
||
|
76900F
|
76900F
0155400181 CLIP0211--01 ~ ; W; ﾋﾀﾞﾘ |
0155400181 |
from US $0.80 |
||
|
76905H
|
76905H
0155307111 CLIP0211--01 ~ ; W |
0155307111 |
US $1.93 |
||
|
76905H
|
76905H
0155400181 CLIP0211--01 ~ ; W |
0155400181 |
from US $0.80 |
||
|
76905H
|
76905H
0155307111 CLIP0211--01 ~ ; W |
0155307111 |
US $1.93 |
||
|
76905H
|
76905H
0155400181 CLIP0211--01 ~ 0408--01; W |
0155400181 |
from US $0.80 |
||
|
76905H
|
76905H
01553-08371
CLIP
0211--01 ~ ; W |
01553-08371 |
— | ||
| replacement | |||||
|
76905H
|
76905H
80999VE000 Clip-Finisher0211--01 ~ ; W |
80999VE000 |
from US $0.63 |
||
|
76905HA
|
76905HA
0155400181 CLIP0211--01 ~ ; W |
0155400181 |
from US $0.80 |
||
|
76905HB
|
76905HB
0155307111 CLIP0211--01 ~ ; W |
0155307111 |
US $1.93 |
||
|
76905HC
|
76905HC
0155400181 CLIP0211--01 ~ 0408--01; W |
0155400181 |
from US $0.80 |
||
|
76905HD
|
76905HD
01553-08371
CLIP
0211--01 ~ ; W |
01553-08371 |
— | ||
| replacement | |||||
|
76905HD
|
76905HD
80999VE000 Clip-Finisher0211--01 ~ ; W |
80999VE000 |
from US $0.63 |
||
|
76906E
|
76906E
0155400181 CLIP0211--01 ~ ; W |
0155400181 |
from US $0.80 |
||
|
76906E
|
76906E
01553-08371
CLIP
0211--01 ~ ; W; ﾋﾀﾞﾘ |
01553-08371 |
— | ||
| replacement | |||||
|
76906E
|
76906E
80999VE000 Clip-Finisher0211--01 ~ ; W; ﾋﾀﾞﾘ |
80999VE000 |
from US $0.63 |
||
|
76906E
|
76906E
01553-00363 CLIP0211--01 ~ ; W |
01553-00363 |
US $1.73 |
||
|
76906EA
|
76906EA
01553-08371
CLIP
0211--01 ~ ; W; ﾋﾀﾞﾘ |
01553-08371 |
— | ||
| replacement | |||||
|
76906EA
|
76906EA
80999VE000 Clip-Finisher0211--01 ~ ; W; ﾋﾀﾞﾘ |
80999VE000 |
from US $0.63 |
||
|
76906EB
|
76906EB
01553-00363 CLIP0211--01 ~ ; W |
01553-00363 |
US $1.73 |
||
|
76907
|
76907
84940-VB001 Finisher-Luggage Side, Upper Rh0211--01 ~ 0408--01; W |
84940-VB001 |
US $184.32 |
||
|
76907
|
76907
84940-VC700
Finisher-Luggage Side, Upper Rh
0408--01 ~ 0511--01; W |
84940-VC700 |
— | ||
|
76907
|
76907
84940-VD200 Finisher-Luggage Side, Upper Rh0408--01 ~ ; W |
84940-VD200 |
US $111.74 |
||
|
76908
|
76908
84941-VB011 Finisher-Luggage Side, Upper Lh0211--01 ~ 0408--01; W |
84941-VB011 |
US $184.32 |
||
|
76908
|
76908
84941-VC711
Finisher-Luggage Side, Upper Lh
0408--01 ~ 0511--01; W |
84941-VC711 |
— | ||
|
76908
|
76908
84941VD207 Finisher-Luggage Side, Upper Lh0408--01 ~ ; W |
84941VD207 |
US $116.78 |
||
|
76911M
|
76911M
76911-VC011 Garnish Assy-Front Pillar, Rh0211--01 ~ 0408--01; W |
76911-VC011 |
US $82.22 |
||
|
76911M
|
76911M
76911-VD260 Garnish Assy-Front Pillar, Rh0408--01 ~ 0511--01; W |
76911-VD260 |
from US $53.64 |
||
|
76911M
|
76911M
76911-VC011 Garnish Assy-Front Pillar, Rh0211--01 ~ 0408--01; W |
76911-VC011 |
US $82.22 |
||
|
76911M
|
76911M
76911-VD260 Garnish Assy-Front Pillar, Rh0408--01 ~ 0511--01; W |
76911-VD260 |
from US $53.64 |
||
|
76912M
|
76912M
76912-VC011
Garnish Assy-Front Pillar, Lh
0211--01 ~ 0408--01; W |
76912-VC011 |
— | ||
|
76912M
|
76912M
76912-VD260 Garnish Assy-Front Pillar, Lh0408--01 ~ 0511--01; W |
76912-VD260 |
from US $53.64 |
||
|
76912M
|
76912M
76912-VC011
Garnish Assy-Front Pillar, Lh
0211--01 ~ 0408--01; W |
76912-VC011 |
— | ||
|
76912M
|
76912M
76912-VD260 Garnish Assy-Front Pillar, Lh0408--01 ~ 0511--01; W |
76912-VD260 |
from US $53.64 |
||
|
76913P
|
76913P
76913-VC011 Garnish-Center Pillar, Upper Rh0211--01 ~ 0408--01; W |
76913-VC011 |
US $37.15 |
||
|
76913P
|
76913P
76913-VC710
Garnish-Center Pillar, Upper Rh
0408--01 ~ 0511--01; W |
76913-VC710 |
— | ||
|
76913P
|
76913P
76913-VC715
Garnish-Center Pillar, Upper Rh
0408--01 ~ 0511--01; *W |
76913-VC715 |
— | ||
|
76913P
|
76913P
76913-VD220 Garnish-Center Pillar, Upper Rh0408--01 ~ ; W |
76913-VD220 |
US $37.15 |
||
|
76913Q
|
76913Q
76915-VB001 Garnish-Center Pillar, Lower Rh0211--01 ~ 0408--01; W |
76915-VB001 |
US $86.69 |
||
|
76913Q
|
76913Q
76915-VD200 Garnish-Center Pillar, Lower Rh0408--01 ~ ; W |
76915-VD200 |
US $54.86 |
||
|
76913Q
|
76913Q
76915-VD205 Garnish-Center Pillar, Lower Rh0408--01 ~ ; W |
76915-VD205 |
US $54.86 |
||
|
76914P
|
76914P
76914-VC011 Garnish-Center Pillar, Upper Lh0211--01 ~ 0408--01; W |
76914-VC011 |
US $37.15 |
||
|
76914P
|
76914P
76914-VC710
Garnish-Center Pillar, Upper Lh
0408--01 ~ 0511--01; W |
76914-VC710 |
— | ||
|
76914P
|
76914P
76914-VC715
Garnish-Center Pillar, Upper Lh
0408--01 ~ 0511--01; *W |
76914-VC715 |
— | ||
|
76914P
|
76914P
76914-VD220 Garnish-Center Pillar, Upper Lh0408--01 ~ ; W |
76914-VD220 |
from US $23.57 |
||
|
76914Q
|
76914Q
76916-VB001 Garnish-Center Pillar, Lower Lh0211--01 ~ 0408--01; W |
76916-VB001 |
US $86.69 |
||
|
76914Q
|
76914Q
76916-VD200 Garnish-Center Pillar, Lower Lh0408--01 ~ ; W |
76916-VD200 |
US $54.86 |
||
|
76914Q
|
76914Q
76916-VD205 Garnish-Center Pillar, Lower Lh0408--01 ~ ; W |
76916-VD205 |
US $54.86 |
||
|
76921
|
76921
76921-VC301 Welt-Body Side, Front Rh0211--01 ~ 0408--01; W |
76921-VC301 |
from US $95.05 |
||
|
76921
|
76921
76921-VD200 Welt-Body Side, Front Rh0408--01 ~ ; W |
76921-VD200 |
from US $70.13 |
||
|
76921
|
76921
76921-VD205 Welt-Body Side, Front Rh0408--01 ~ ; W |
76921-VD205 |
from US $70.13 |
||
|
76922
|
76922
76923-VC301 Welt-Body Side, Rear Rh0211--01 ~ 0408--01; W |
76923-VC301 |
from US $112.02 |
||
|
76922
|
76922
76923-VD200 Welt-Body Side, Rear Rh0408--01 ~ ; W |
76923-VD200 |
from US $83.38 |
||
|
76922
|
76922
76923-VD205 Welt-Body Side, Rear Rh0408--01 ~ ; W |
76923-VD205 |
from US $83.38 |
||
|
76923
|
76923
76922-VC301 Welt-Body Side, Front Lh0211--01 ~ 0408--01; W |
76922-VC301 |
from US $94.70 |
||
|
76923
|
76923
76922-VD200 Welt-Body Side, Front Lh0408--01 ~ ; W |
76922-VD200 |
from US $70.13 |
||
|
76923
|
76923
76922-VD205 Welt-Body Side, Front Lh0408--01 ~ ; W |
76922-VD205 |
from US $69.95 |
||
|
76924
|
76924
76924-VC301 Welt-Body Side, Rear Lh0211--01 ~ 0408--01; W |
76924-VC301 |
from US $112.28 |
||
|
76924
|
76924
76924-VD200 Welt-Body Side, Rear Lh0408--01 ~ ; W |
76924-VD200 |
from US $83.38 |
||
|
76924
|
76924
76924-VD205 Welt-Body Side, Rear Lh0408--01 ~ ; W |
76924-VD205 |
from US $83.38 |
||
|
76925M
|
76925M
76925-VB001 Welt-Back Door0211--01 ~ 0408--01; W |
76925-VB001 |
US $64.80 |
||
|
76925M
|
76925M
76925-VD200 Welt-Back Door0408--01 ~ ; W |
76925-VD200 |
US $41.04 |
||
|
76925M
|
76925M
76925-VD205 Welt-Back Door0408--01 ~ ; W |
76925-VD205 |
from US $42.41 |
||
|
76950
|
76950
76951-VB001 Plate-Kicking, Front Rh0211--01 ~ 0408--01; W |
76951-VB001 |
US $72.43 |
||
|
76950
|
76950
76951-VD200 Plate-Kicking, Front Rh0408--01 ~ ; W |
76951-VD200 |
US $53.38 |
||
|
76950
|
76950
76951-VD205 Plate-Kicking, Front Rh0408--01 ~ ; W |
76951-VD205 |
US $45.79 |
||
|
76951
|
76951
76952-VB001 Plate-Kicking, Front Lh0211--01 ~ 0408--01; W |
76952-VB001 |
US $72.43 |
||
|
76951
|
76951
76952-VD200 Plate-Kicking, Front Lh0408--01 ~ ; W |
76952-VD200 |
from US $53.38 |
||
|
76951
|
76951
76952-VD205 Plate-Kicking, Front Lh0408--01 ~ ; W |
76952-VD205 |
US $53.38 |
||
|
76954
|
76954
76953-VB001 Plate-Kicking, Rear Rh0211--01 ~ 0408--01; W |
76953-VB001 |
US $34.27 |
||
|
76954
|
76954
76953-VD200
Plate-Kicking, Rear Rh
0408--01 ~ ; W |
76953-VD200 |
— | ||
|
76954
|
76954
76953-VD205 Plate-Kicking, Rear Rh0408--01 ~ ; W |
76953-VD205 |
from US $21.60 |
||
|
76955
|
76955
76954-VB001 Plate-Kicking, Rear Lh0211--01 ~ 0408--01; W |
76954-VB001 |
US $34.27 |
||
|
76955
|
76955
76954-VD200
Plate-Kicking, Rear Lh
0408--01 ~ ; W |
76954-VD200 |
— | ||
|
76955
|
76955
76954-VD205 Plate-Kicking, Rear Lh0408--01 ~ ; W |
76954-VD205 |
from US $21.60 |
||
|
79916T
|
79916T
79916-VB101
Holder-Rear Parcel Shelf, Rear Rh
0211--01 ~ 0408--01; W |
79916-VB101 |
— | ||
|
79916T
|
79916T
79916-VD265 Holder-Rear Parcel Shelf, Rear Rh0408--01 ~ ; W |
79916-VD265 |
US $8.06 |
||
|
79917T
|
79917T
79917-VB201
Holder-Rear Parcel Shelf, Rear Lh
0211--01 ~ 0408--01; W |
79917-VB201 |
— | ||
|
79917T
|
79917T
79917-VD275 Holder-Rear Parcel Shelf, Rear Lh0408--01 ~ ; W |
79917-VD275 |
US $7.44 |
||
|
849
|
Trunk room trimming
849
|
||||
|
849
|
Trunk room trimming
849
|
||||
|
849
|
Trunk room trimming
849
|
||||
|
849
|
Trunk room trimming
849
|
||||
