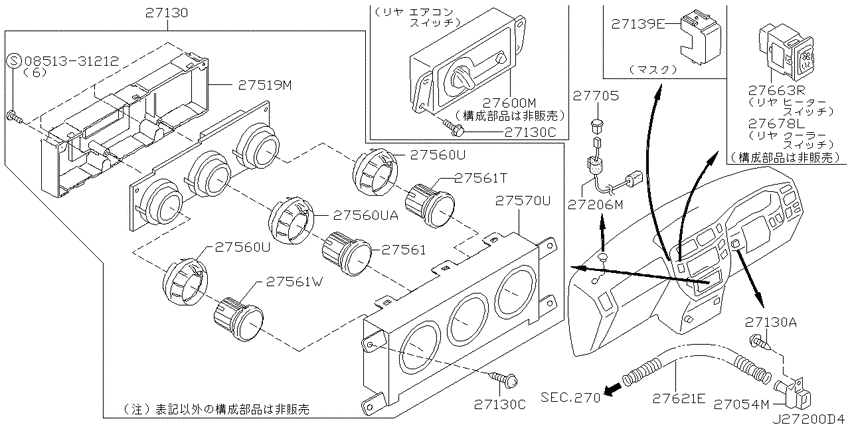

Control unit (2004-08-01 ~ ; &オートエアコン (フロント & リヤ); W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851331212
|
0851331212
0851331212
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0851331212 |
— | ||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
27054M
|
27054M
27720-VB000 Sensor-Incar0211--01 ~ ; W |
27720-VB000 |
US $54.14 |
||
|
27130
|
27130
27510-VC210 Control Assy0211--01 ~ 0408--01; W |
27510-VC210 |
US $825.53 |
||
|
27130
|
27130
27510-VD200 Control Assy0408--01 ~ ; W |
27510-VD200 |
US $709.42 |
||
|
27130
|
27130
0145100581 SCREW0211--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
27130
|
27130
0145100581 SCREW0211--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
27130A
|
27130A
0145100581 SCREW0211--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
27130C
|
27130C
0145100581 SCREW0211--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
27130C
|
27130C
0145100581 SCREW0211--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
27139E
|
27139E
68492AX000 Mask-Switch0408--01 ~ ; W |
68492AX000 |
from US $8.06 |
||
|
27139E
|
27139E
6896064J10 Mask-Switch0211--01 ~ 0408--01; W |
6896064J10 |
from US $9.30 |
||
|
27206M
|
27206M
24168-VD200 Harness Assy-Sub0408--01 ~ ; W |
24168-VD200 |
US $21.60 |
||
|
27519M
|
27519M
27519-VD200 Case-Control0408--01 ~ ; W |
27519-VD200 |
US $64.66 |
||
|
27560U
|
27560U
27559-VD200 Knob-Control0408--01 ~ ; W |
27559-VD200 |
US $20.45 |
||
|
27560U
|
27560U
27559-VD210 Knob-Control0408--01 ~ ; W |
27559-VD210 |
US $20.45 |
||
|
27560U
|
27560U
27559-VD200 Knob-Control0408--01 ~ ; W |
27559-VD200 |
US $20.45 |
||
|
27560U
|
27560U
27559-VD210 Knob-Control0408--01 ~ ; W |
27559-VD210 |
US $20.45 |
||
|
27560UA
|
27560UA
27559-VD210 Knob-Control0408--01 ~ ; W |
27559-VD210 |
US $20.45 |
||
|
27561
|
27561
27568-8E500 Button-Air Conditioner0211--01 ~ 0408--01; W |
27568-8E500 |
US $5.18 |
||
|
27561
|
27561
275A2-VD200 Button-Air Conditioner0408--01 ~ ; W |
275A2-VD200 |
US $37.58 |
||
|
27561
|
27561
275A0-8E000 Button-Air Conditioner0211--01 ~ 0408--01; W |
275A0-8E000 |
US $6.34 |
||
|
27561
|
27561
27562-8E500 Button-Ventilator0211--01 ~ 0408--01; W |
27562-8E500 |
US $6.34 |
||
|
27561
|
27561
27562-8E505 Button-Ventilator0211--01 ~ 0408--01; W |
27562-8E505 |
US $6.91 |
||
|
27561
|
27561
27566-8E500 Button-Defroster0211--01 ~ 0408--01; W |
27566-8E500 |
US $6.34 |
||
|
27561
|
27561
275A1-8E000 Button-Fan0211--01 ~ 0408--01; W |
275A1-8E000 |
US $6.34 |
||
|
27561
|
27561
275A1-VD200 Button-Fan0408--01 ~ ; W |
275A1-VD200 |
US $27.65 |
||
|
27561
|
27561
27567-8E510 Button-Recirc0211--01 ~ 0408--01; W |
27567-8E510 |
US $6.19 |
||
|
27561
|
27561
27567-8E500 Button-Recirc0211--01 ~ 0408--01; W |
27567-8E500 |
US $6.19 |
||
|
27561
|
27561
27567-8E505 Button-Recirc0211--01 ~ 0408--01; W |
27567-8E505 |
US $1.73 |
||
|
27561
|
27561
27561-8E000 BUTTON-AUTO AIR CONDITIONER0211--01 ~ 0408--01; W |
27561-8E000 |
US $2.45 |
||
|
27561
|
27561
27561-8E005 BUTTON-AUTO AIR CONDITIONER0211--01 ~ 0408--01; W |
27561-8E005 |
US $6.34 |
||
|
27561
|
27561
275A4-VD200 Button-Mode0408--01 ~ ; W |
275A4-VD200 |
US $32.26 |
||
|
27561T
|
27561T
275A1-8E000 Button-Fan0211--01 ~ 0408--01; W |
275A1-8E000 |
US $6.34 |
||
|
27561T
|
27561T
275A1-VD200 Button-Fan0408--01 ~ ; W |
275A1-VD200 |
US $27.65 |
||
|
27561W
|
27561W
275A4-VD200 Button-Mode0408--01 ~ ; W |
275A4-VD200 |
US $32.26 |
||
|
27570U
|
27570U
27570-VD200 Finisher-Control0408--01 ~ 0707--01; W |
27570-VD200 |
US $49.25 |
||
|
27570U
|
27570U
27570-VD20A Finisher-Control0707--01 ~ ; W |
27570-VD20A |
US $32.26 |
||
|
27600M
|
27600M
27511-VC700 Control Assy-Rear Air Conditioner, Front0211--01 ~ 0408--01; W; [B517] |
27511-VC700 |
US $240.48 |
||
|
27600M
|
27600M
27511-VD200 Control Assy-Rear Air Conditioner, Front0408--01 ~ ; W |
27511-VD200 |
from US $158.49 |
||
|
27621E
|
27621E
27727-VB000 Duct-Aspirator0211--01 ~ 0408--01; W |
27727-VB000 |
US $18.86 |
||
|
27621E
|
27621E
27727-VD200 Duct-Aspirator0408--01 ~ ; W |
27727-VD200 |
US $5.76 |
||
|
27663R
|
27663R
27663-VB000 Switch Assy-Vent0211--01 ~ 0408--01; *W |
27663-VB000 |
from US $21.28 |
||
|
27663R
|
27663R
27663VD200 Switch Assy-Fan, Rear Heater0408--01 ~ ; *W; [B517] |
27663VD200 |
US $27.36 |
||
|
27678L
|
27678L
27664-VD200 Switch Assy-Rear Air Conditioner0408--01 ~ ; W; [B517] |
27664-VD200 |
from US $30.53 |
||
|
27705
|
27705
27721-0E000 SENSOR ASSY-SUN0408--01 ~ ; W |
27721-0E000 |
US $33.88 |
||
|
27705
|
27705
27721-VB000 Sensor Assy-Sun0211--01 ~ 0408--01; W |
27721-VB000 |
US $54.29 |
||
