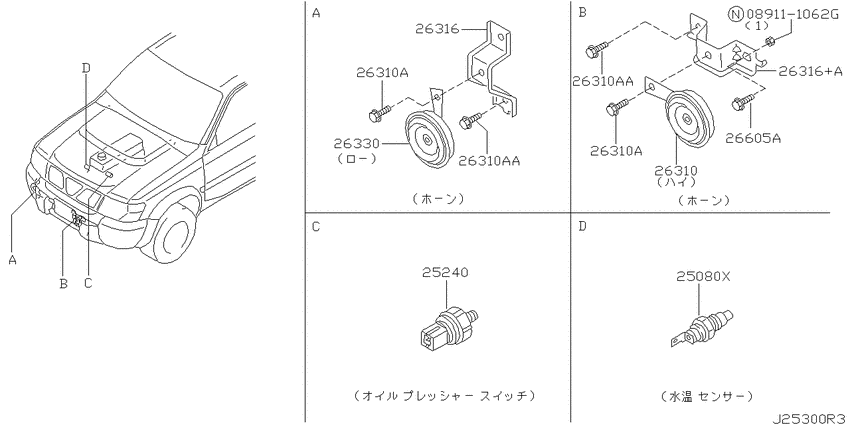

Electrical unit (2004-08-01 ~ ; ｲﾝｽﾄ & ﾀﾞｯｼｭ; W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.19 |
||
|
25080X
|
25080X
2508089907 Sensor-Temperature0211--01 ~ 0408--01; W |
2508089907 |
from US $18.28 |
||
|
25240
|
25240
25240-4M400 Switch Assy-Oil Pressure0211--01 ~ 0408--01; W |
25240-4M400 |
US $26.70 |
||
|
26310
|
26310
25610-VC305 Horn Assy-Electric High0211--01 ~ 0408--01; W |
25610-VC305 |
US $87.98 |
||
|
26310
|
26310
25610-VC30B Horn Assy-Electric High0701--01 ~ ; W |
25610-VC30B |
US $87.98 |
||
|
26310
|
26310
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310
|
26310
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26310
|
26310
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310
|
26310
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26310A
|
26310A
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310A
|
26310A
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26310A
|
26310A
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310A
|
26310A
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26310A
|
26310A
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310A
|
26310A
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26310A
|
26310A
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310A
|
26310A
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26310AA
|
26310AA
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310AA
|
26310AA
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26310AA
|
26310AA
25628-3H000 Bolt0211--01 ~ 0408--01; W |
25628-3H000 |
US $1.73 |
||
|
26310AA
|
26310AA
25628-3H00A Bolt0701--01 ~ ; W |
25628-3H00A |
US $1.73 |
||
|
26316
|
26316
25617-VB000 Bracket-Electric Horn0211--01 ~ 0408--01; W |
25617-VB000 |
US $16.99 |
||
|
26316
|
26316
25617VB00A Bracket-Electric Horn0612--01 ~ ; W |
25617VB00A |
from US $11.81 |
||
|
26316
|
26316
25617-VC300 Bracket-Electric Horn0211--01 ~ 0408--01; W |
25617-VC300 |
US $14.11 |
||
|
26316
|
26316
25617-VC30A Bracket-Electric Horn0701--01 ~ ; W |
25617-VC30A |
US $11.81 |
||
|
26316+A
|
26316+A
25617-VC300 Bracket-Electric Horn0211--01 ~ 0408--01; W |
25617-VC300 |
US $14.11 |
||
|
26316+A
|
26316+A
25617-VC30A Bracket-Electric Horn0701--01 ~ ; W |
25617-VC30A |
US $11.81 |
||
|
26330
|
26330
25620VC305 Horn Assy-Electric Low0211--01 ~ 0408--01; W |
25620VC305 |
US $84.53 |
||
|
26330
|
26330
25620-VC30B Horn Assy-Electric Low0701--01 ~ ; W |
25620-VC30B |
US $84.53 |
||
|
26605A
|
26605A
0145600031 SCREW0211--01 ~ 0408--01; W |
0145600031 |
from US $1.05 |
