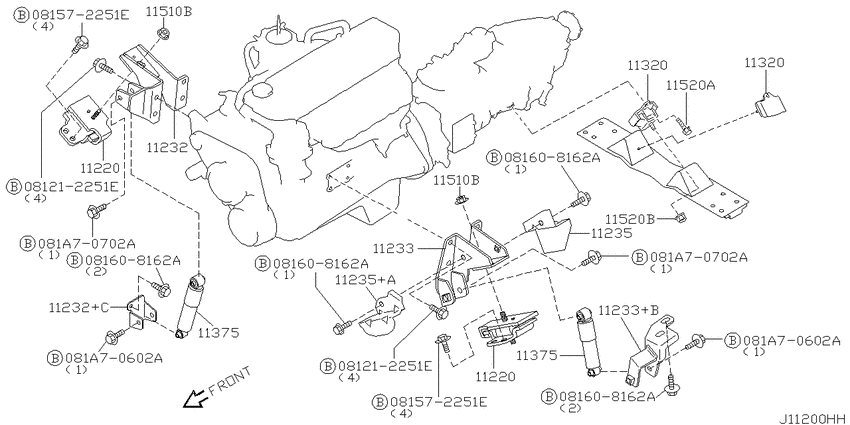

Engine & transmission mounting (2002-11-01 ~ 2004-08-01; TB48DE) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081212251E
|
081212251E
081212251E
Bolt
|
081212251E |
— | ||
|
081212251E
|
081212251E
081212251E
Bolt
|
081212251E |
— | ||
|
081572251E
|
081572251E
08157-2251E BOLTHEX |
08157-2251E |
US $1.02 |
||
|
081572251E
|
081572251E
08157-2251E BOLTHEX |
08157-2251E |
US $1.02 |
||
|
081608162A
|
081608162A
08160-8162A BOLTHEX |
08160-8162A |
US $0.54 |
||
|
081608162A
|
081608162A
08160-8162A BOLTHEX |
08160-8162A |
US $0.54 |
||
|
081608162A
|
081608162A
08160-8162A BOLTHEX |
08160-8162A |
US $0.54 |
||
|
081608162A
|
081608162A
08160-8162A BOLTHEX |
08160-8162A |
US $0.54 |
||
|
081A70602A
|
081A70602A
081A7-0602A BOLTHEX |
081A7-0602A |
from US $0.74 |
||
|
081A70602A
|
081A70602A
081A7-0602A BOLTHEX |
081A7-0602A |
from US $0.74 |
||
|
11220
|
11220
11210-VD300 Insulator-Engine Mounting, Front0408--01 ~ 0701--01; TB48DE; ﾐｷﾞｶﾞﾜ |
11210-VD300 |
US $91.35 |
||
|
11220
|
11220
11220-VC305 Insulator-Engine Mounting, Front0211--01 ~ 0408--01; TB48DE |
11220-VC305 |
US $103.68 |
||
|
11220
|
11220
11220-VD30A Insulator-Engine Mounting, Front0701--01 ~ ; TB48DE; ﾋﾀﾞﾘ |
11220-VD30A |
from US $58.98 |
||
|
11220
|
11220
11210-VD30A Insulator-Engine Mounting, Front0701--01 ~ ; TB48DE; ﾐｷﾞｶﾞﾜ |
11210-VD30A |
from US $59.57 |
||
|
11220
|
11220
11220-VD300 Insulator-Engine Mounting, Front0408--01 ~ 0701--01; TB48DE; ﾋﾀﾞﾘ |
11220-VD300 |
US $91.35 |
||
|
11220
|
11220
11210-VD300 Insulator-Engine Mounting, Front0408--01 ~ 0701--01; TB48DE; ﾐｷﾞｶﾞﾜ |
11210-VD300 |
US $91.35 |
||
|
11220
|
11220
11220-VC305 Insulator-Engine Mounting, Front0211--01 ~ 0408--01; TB48DE |
11220-VC305 |
US $103.68 |
||
|
11220
|
11220
11220-VD30A Insulator-Engine Mounting, Front0701--01 ~ ; TB48DE; ﾋﾀﾞﾘ |
11220-VD30A |
from US $58.98 |
||
|
11220
|
11220
11210-VD30A Insulator-Engine Mounting, Front0701--01 ~ ; TB48DE; ﾐｷﾞｶﾞﾜ |
11210-VD30A |
from US $59.57 |
||
|
11220
|
11220
11220-VD300 Insulator-Engine Mounting, Front0408--01 ~ 0701--01; TB48DE; ﾋﾀﾞﾘ |
11220-VD300 |
US $91.35 |
||
|
11232
|
11232
11232-VC300 Bracket-Engine Mounting, Rh0211--01 ~ ; TB48DE |
11232-VC300 |
from US $54.82 |
||
|
11232
|
11232
11232-VB915 Bracket-Engine Mounting, Rh0211--01 ~ ; TB48DE |
11232-VB915 |
US $88.42 |
||
|
11232+C
|
11232+C
11232-VB915 Bracket-Engine Mounting, Rh0211--01 ~ ; TB48DE |
11232-VB915 |
US $88.42 |
||
|
11233
|
11233
11233-VC310 Bracket-Engine Mounting, Lh0211--01 ~ ; TB48DE |
11233-VC310 |
from US $54.82 |
||
|
11233
|
11233
11233-VB922 Bracket-Engine Mounting, Lh0211--01 ~ ; TB48DE |
11233-VB922 |
US $61.12 |
||
|
11233+B
|
11233+B
11233-VB922 Bracket-Engine Mounting, Lh0211--01 ~ ; TB48DE |
11233-VB922 |
US $61.12 |
||
|
11235
|
11235
11284-VC700 Plate-Heat Shield0211--01 ~ 0703--01; TB48DE |
11284-VC700 |
US $10.08 |
||
|
11235
|
11235
11284-VC70A Plate-Heat Shield0703--01 ~ ; TB48DE |
11284-VC70A |
US $8.35 |
||
|
11235
|
11235
11284-VC300 Plate-Heat Shield0211--01 ~ 0703--01; TB48DE |
11284-VC300 |
US $10.08 |
||
|
11235
|
11235
11284-VC30A Plate-Heat Shield0703--01 ~ ; TB48DE |
11284-VC30A |
US $8.35 |
||
|
11235+A
|
11235+A
11284-VC300 Plate-Heat Shield0211--01 ~ 0703--01; TB48DE |
11284-VC300 |
US $10.08 |
||
|
11235+A
|
11235+A
11284-VC30A Plate-Heat Shield0703--01 ~ ; TB48DE |
11284-VC30A |
US $8.35 |
||
|
11320
|
11320
11320-VB000 Insulator-Engine Mounting, Rear0211--01 ~ 0701--01; TB48DE |
11320-VB000 |
US $93.89 |
||
|
11320
|
11320
11320-VB00A Insulator-Engine Mounting, Rear0701--01 ~ ; TB48DE |
11320-VB00A |
from US $59.87 |
||
|
11320
|
11320
11320-VB000 Insulator-Engine Mounting, Rear0211--01 ~ 0701--01; TB48DE |
11320-VB000 |
US $93.89 |
||
|
11320
|
11320
11320-VB00A Insulator-Engine Mounting, Rear0701--01 ~ ; TB48DE |
11320-VB00A |
from US $59.87 |
||
|
11375
|
11375
11375-VB000 Damper Assy-Dynamic0211--01 ~ ; TB48DE |
11375-VB000 |
from US $77.90 |
||
|
11375
|
11375
11375-VB000 Damper Assy-Dynamic0211--01 ~ ; TB48DE |
11375-VB000 |
from US $77.90 |
||
|
11510B
|
11510B
0122500202 NUT0211--01 ~ ; TB48DE |
0122500202 |
US $1.93 |
||
|
11510B
|
11510B
0122500202 NUT0211--01 ~ ; TB48DE |
0122500202 |
US $1.93 |
||
|
11520A
|
11520A
0112501181 BOLT0211--01 ~ ; TB48DE |
0112501181 |
from US $7.55 |
||
|
11520B
|
11520B
0122500202 NUT0211--01 ~ ; TB48DE |
0122500202 |
US $1.93 |
