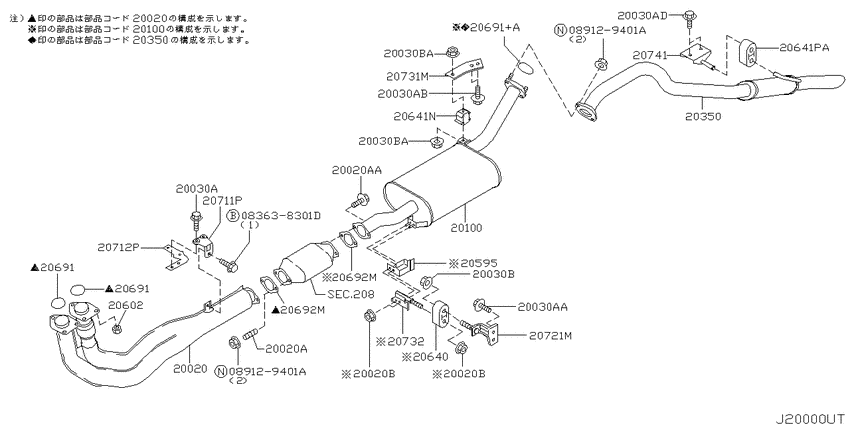

Exhaust tube & muffler (2004-08-01 ~ 2006-07-01; TB48DE) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083638301D
|
083638301D
08363-8301D SCREWMACHINE |
08363-8301D |
US $2.78 |
||
|
089129401A
|
089129401A
089129401A NUTHEX |
089129401A |
from US $0.59 |
||
|
089129401A
|
089129401A
089129401A NUTHEX |
089129401A |
from US $0.59 |
||
|
20020
|
20020
20020-VC825 Tube Assy-Exhaust, Front0211--01 ~ 0408--01; TB48DE |
20020-VC825 |
US $846.77 |
||
|
20020
|
20020
20020-VC826 Tube Assy-Exhaust, Front0408--01 ~ 0701--01; TB48DE |
20020-VC826 |
US $846.77 |
||
|
20020
|
20020
B0020-VC80B Tube Assy-Exhaust, Front0701--01 ~ ; TB48DE |
B0020-VC80B |
US $846.77 |
||
|
20020
|
20020
20606D4200 Bolt0211--01 ~ ; TB48DE |
20606D4200 |
from US $2.55 |
||
|
20020
|
20020
0111500221 BOLT0211--01 ~ ; TB48DE |
0111500221 |
from US $3.06 |
||
|
20020
|
20020
0122500102 NUT0211--01 ~ 0408--01; TB48DE |
0122500102 |
from US $1.89 |
||
|
20020
|
20020
20020-VC825 Tube Assy-Exhaust, Front0211--01 ~ 0408--01; TB48DE |
20020-VC825 |
US $846.77 |
||
|
20020
|
20020
20020-VC826 Tube Assy-Exhaust, Front0408--01 ~ 0701--01; TB48DE |
20020-VC826 |
US $846.77 |
||
|
20020
|
20020
B0020-VC80B Tube Assy-Exhaust, Front0701--01 ~ ; TB48DE |
B0020-VC80B |
US $846.77 |
||
|
20020
|
20020
20606D4200 Bolt0211--01 ~ ; TB48DE |
20606D4200 |
from US $2.55 |
||
|
20020
|
20020
0111500221 BOLT0211--01 ~ ; TB48DE |
0111500221 |
from US $3.06 |
||
|
20020
|
20020
0122500102 NUT0211--01 ~ 0408--01; TB48DE |
0122500102 |
from US $1.89 |
||
|
20020A
|
20020A
20606D4200 Bolt0211--01 ~ ; TB48DE |
20606D4200 |
from US $2.55 |
||
|
20020A
|
20020A
0111500221 BOLT0211--01 ~ ; TB48DE |
0111500221 |
from US $3.06 |
||
|
20020AA
|
20020AA
0111500221 BOLT0211--01 ~ ; TB48DE |
0111500221 |
from US $3.06 |
||
|
20020B
|
20020B
0122500102 NUT0211--01 ~ 0408--01; TB48DE |
0122500102 |
from US $1.89 |
||
|
20020B
|
20020B
0122500102 NUT0211--01 ~ 0408--01; TB48DE |
0122500102 |
from US $1.89 |
||
|
20030A
|
20030A
01121-00483 BOLT0211--01 ~ ; TB48DE |
01121-00483 |
from US $1.76 |
||
|
20030A
|
20030A
0112101413 BOLT0211--01 ~ ; TB48DE |
0112101413 |
from US $0.83 |
||
|
20030A
|
20030A
0112101413 BOLT0211--01 ~ ; TB48DE |
0112101413 |
from US $0.83 |
||
|
20030A
|
20030A
0112101413 BOLT0211--01 ~ ; TB48DE |
0112101413 |
from US $0.83 |
||
|
20030AA
|
20030AA
0112101413 BOLT0211--01 ~ ; TB48DE |
0112101413 |
from US $0.83 |
||
|
20030AB
|
20030AB
0112101413 BOLT0211--01 ~ ; TB48DE |
0112101413 |
from US $0.83 |
||
|
20030AD
|
20030AD
0112101413 BOLT0211--01 ~ ; TB48DE |
0112101413 |
from US $0.83 |
||
|
20030B
|
20030B
0122500102 NUT0211--01 ~ ; TB48DE |
0122500102 |
from US $1.89 |
||
|
20030B
|
20030B
0122500102 NUT0211--01 ~ ; TB48DE |
0122500102 |
from US $1.89 |
||
|
20030BA
|
20030BA
0122500102 NUT0211--01 ~ ; TB48DE |
0122500102 |
from US $1.89 |
||
|
20030BA
|
20030BA
0122500102 NUT0211--01 ~ ; TB48DE |
0122500102 |
from US $1.89 |
||
|
20100
|
20100
20100-VC825 Muffler Assy-Exhaust Main0211--01 ~ 0408--01; TB48DE; ｽﾀﾝﾌﾟ P/#20100-VC800 |
20100-VC825 |
US $691.01 |
||
|
20100
|
20100
B0100-VC80A Muffler Assy-Exhaust Main0701--01 ~ ; TB48DE |
B0100-VC80A |
US $691.01 |
||
|
20100
|
20100
20100-VC825 Muffler Assy-Exhaust Main0211--01 ~ 0408--01; TB48DE; ｽﾀﾝﾌﾟ P/#20100-VC800 |
20100-VC825 |
US $691.01 |
||
|
20100
|
20100
B0100-VC80A Muffler Assy-Exhaust Main0701--01 ~ ; TB48DE |
B0100-VC80A |
US $691.01 |
||
|
20350
|
20350
20350-VC825 Muffler Assy-Post0211--01 ~ 0701--01; TB48DE |
20350-VC825 |
US $691.01 |
||
|
20350
|
20350
B0350VC80A Muffler Assy-Post0701--01 ~ ; TB48DE |
B0350VC80A |
US $691.01 |
||
|
20350
|
20350
20350-VC825 Muffler Assy-Post0211--01 ~ 0701--01; TB48DE |
20350-VC825 |
US $691.01 |
||
|
20350
|
20350
B0350VC80A Muffler Assy-Post0701--01 ~ ; TB48DE |
B0350VC80A |
US $691.01 |
||
|
20595
|
20595
20595-VC300 Insulator-Heat, Exhaust0211--01 ~ 0701--01; TB48DE |
20595-VC300 |
from US $12.10 |
||
|
20595
|
20595
20595-VC30A Insulator-Heat, Exhaust0701--01 ~ ; TB48DE |
20595-VC30A |
US $19.01 |
||
|
20602
|
20602
20602-41G00
Nut-Fix, Exhaust Tube
0211--01 ~ 0612--01; TB48DE |
20602-41G00 |
— | ||
| replacement | |||||
|
20602
|
20602
2060241G0A Nut-Fix, Exhaust Tube0211--01 ~ 0612--01; TB48DE |
2060241G0A |
from US $1.54 |
||
|
20602
|
20602
2060241G0A Nut-Fix, Exhaust Tube0612--01 ~ ; TB48DE |
2060241G0A |
from US $1.54 |
||
|
20640
|
20640
20640-37J00 Insulator-Exhaust Mounting0211--01 ~ ; TB48DE |
20640-37J00 |
from US $7.20 |
||
|
20641N
|
20641N
20641-S8100
Insulator-Exhaust Mounting
0211--01 ~ 0701--01; TB48DE |
20641-S8100 |
— | ||
| replacement | |||||
|
20641N
|
20641N
20641S810A Insulator-Exhaust Mounting0211--01 ~ 0701--01; TB48DE |
20641S810A |
US $24.40 |
||
|
20641N
|
20641N
20641S810A Insulator-Exhaust Mounting0701--01 ~ ; TB48DE |
20641S810A |
US $24.40 |
||
|
20641PA
|
20641PA
20641-34T00
Ring-Rubber, Muffler
0211--01 ~ ; TB48DE |
20641-34T00 |
— | ||
| replacement | |||||
|
20641PA
|
20641PA
2064001A61 Insulator Assy-Exhaust Mounting0211--01 ~ ; TB48DE |
2064001A61 |
from US $8.45 |
||
|
20691
|
20691
2069151E01 GASKET-EXHAUST0211--01 ~ ; TB48DE |
2069151E01 |
from US $6.16 |
||
|
20691
|
20691
2069130P00 Gasket-Exhaust0211--01 ~ ; TB48DE |
2069130P00 |
from US $4.01 |
||
|
20691
|
20691
2069151E01 GASKET-EXHAUST0211--01 ~ ; TB48DE |
2069151E01 |
from US $6.16 |
||
|
20691
|
20691
2069130P00 Gasket-Exhaust0211--01 ~ ; TB48DE |
2069130P00 |
from US $4.01 |
||
|
20691+A
|
20691+A
2069130P00 Gasket-Exhaust0211--01 ~ ; TB48DE |
2069130P00 |
from US $4.01 |
||
|
20692M
|
20692M
2069265J00 Gasket-Exhaust0309--01 ~ ; TB48DE |
2069265J00 |
from US $8.45 |
||
|
20692M
|
20692M
20692VC300 Gasket-Exhaust0211--01 ~ 0309--01; TB48DE |
20692VC300 |
US $10.37 |
||
|
20692M
|
20692M
2069265J00 Gasket-Exhaust0309--01 ~ ; TB48DE |
2069265J00 |
from US $8.45 |
||
|
20692M
|
20692M
20692VC300 Gasket-Exhaust0211--01 ~ 0309--01; TB48DE |
20692VC300 |
US $10.37 |
||
|
20711P
|
20711P
20711-VC300
Bracket-Exhaust Tube Mounting
0211--01 ~ 0701--01; TB48DE |
20711-VC300 |
— | ||
| replacement | |||||
|
20711P
|
20711P
20711-VC30C Bracket-Exhaust Tube Mounting0211--01 ~ 0701--01; TB48DE |
20711-VC30C |
from US $25.33 |
||
|
20711P
|
20711P
20711VC30A Bracket-Exhaust Tube Mounting0701--01 ~ ; TB48DE |
20711VC30A |
US $20.30 |
||
|
20712P
|
20712P
20712-37J01 Bracket-Exhaust Tube0211--01 ~ 0702--01; TB48DE |
20712-37J01 |
US $35.14 |
||
|
20712P
|
20712P
20712-37J0A Bracket-Exhaust Tube Mounting0702--01 ~ ; TB48DE |
20712-37J0A |
from US $30.34 |
||
|
20721M
|
20721M
20721-37J11 Bracket-Exhaust Mounting0211--01 ~ ; TB48DE |
20721-37J11 |
from US $14.40 |
||
|
20731M
|
20731M
20731-VB000 Mounting Assy-Exhaust0211--01 ~ 0701--01; TB48DE |
20731-VB000 |
US $13.54 |
||
|
20731M
|
20731M
20731VB00A Mounting Assy-Exhaust0701--01 ~ ; TB48DE |
20731VB00A |
US $9.36 |
||
|
20732
|
20732
2073237J02 Bracket-Exhaust Mounting0211--01 ~ ; TB48DE |
2073237J02 |
from US $20.30 |
||
|
20741
|
20741
20741-30J00 Bracket-Exhaust Mounting0211--01 ~ 0702--01; TB48DE |
20741-30J00 |
US $11.23 |
||
|
20741
|
20741
2074130J0A Bracket-Exhaust Mounting0702--01 ~ ; TB48DE |
2074130J0A |
from US $12.45 |
||
|
208
|
Catalyst converter
208
|
||||
|
208
|
Catalyst converter
208
|
||||
