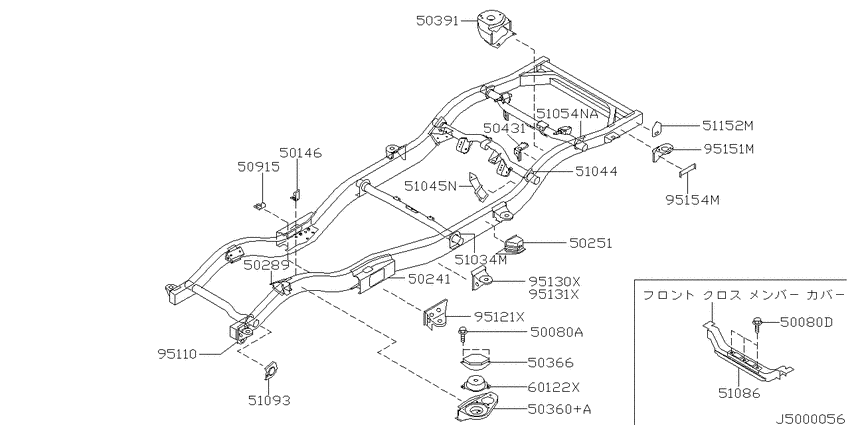

Frame (2002-11-01 ~ ; ブラケット&パーツ(LH); W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50080A
|
50080A
01125-00913 BOLT0211--01 ~ ; W |
01125-00913 |
US $2.21 |
||
|
50080A
|
50080A
01111-00223 BOLT0402--01 ~ 0408--01; W |
01111-00223 |
from US $1.26 |
||
|
50080A
|
50080A
01111-00193 BOLT0402--01 ~ ; W |
01111-00193 |
US $1.73 |
||
|
50080A
|
50080A
01111-00233 BOLT0402--01 ~ ; W |
01111-00233 |
from US $1.37 |
||
|
50080D
|
50080D
01426-00061 SCREW0211--01 ~ ; W |
01426-00061 |
US $1.73 |
||
|
50146
|
50146
50146-VC000 Bracket Assy-Breather0211--01 ~ ; W |
50146-VC000 |
US $12.67 |
||
|
50241
|
50241
50241-VB000 Bracket Assy-Leading Arm, Lh0211--01 ~ 0503--01; W |
50241-VB000 |
US $290.28 |
||
|
50241
|
50241
50241-VC000 Bracket Assy-Leading Arm, Lh0503--01 ~ ; W |
50241-VC000 |
US $187.20 |
||
|
50251
|
50251
50251-06J05 Bracket-Lower Mounting, Lh0211--01 ~ ; W |
50251-06J05 |
US $97.92 |
||
|
50289
|
50289
50311-VC310 Bracket Assy-Engine Mounting, Lh0211--01 ~ ; W |
50311-VC310 |
US $71.86 |
||
|
50360+A
|
50360+A
50361-VC310 Bracket Assy-Front Spring, Front0211--01 ~ 0408--01; W; ﾋﾀﾞﾘ |
50361-VC310 |
US $103.82 |
||
|
50366
|
50366
50366-VC310
Cover Assy-Spring Bracket
0211--01 ~ 0511--01; W |
50366-VC310 |
— | ||
|
50391
|
50391
50391-VC300 Bracket Assy-Rear Spring, Rear Lh0211--01 ~ ; W |
50391-VC300 |
US $164.16 |
||
|
50431
|
50431
50431-VC800 Bracket Assy-Stabilizer Mounting, Lh0211--01 ~ ; W |
50431-VC800 |
US $19.73 |
||
|
50915
|
50915
46430-G7000 Bracket-Clutch Hose0211--01 ~ ; W |
46430-G7000 |
US $4.18 |
||
|
51034M
|
51034M
51034-06J00 Gusset-Cross Member0211--01 ~ ; W |
51034-06J00 |
US $69.98 |
||
|
51044
|
51044
51044-06J00 Gusset-Cross Member, B0211--01 ~ ; W |
51044-06J00 |
US $25.20 |
||
|
51044
|
51044
51044-VC000 Gusset-4Th Cross Member.lh0211--01 ~ ; W |
51044-VC000 |
US $25.20 |
||
|
51045N
|
51045N
51045-VC000 Gusset-4Th Cross Member, Lh0211--01 ~ ; W |
51045-VC000 |
US $45.07 |
||
|
51054NA
|
51054NA
51054-06J05 Gusset-Cross Member, D0211--01 ~ ; W |
51054-06J05 |
US $30.53 |
||
|
51086
|
51086
51086-VC200 Cover-Front Cross Member0211--01 ~ 0408--01; W |
51086-VC200 |
US $82.20 |
||
|
51093
|
51093
51093-VB005 Reinforce-1St Cross Member, Lh0211--01 ~ 0511--01; W |
51093-VB005 |
US $51.12 |
||
|
51152M
|
51152M
51152-VB000 New Genuine Part0211--01 ~ ; W |
51152-VB000 |
US $31.97 |
||
|
60122X
|
60122X
60124-VC300 Damper Compl-Body Construction0211--01 ~ ; W |
60124-VC300 |
US $308.69 |
||
|
95110
|
95110
95110-06J00 Bracket-Cab Mounting, 1St0211--01 ~ ; W |
95110-06J00 |
from US $42.62 |
||
|
95121X
|
95121X
95121-VB200 Bracket Assy-Cab Mounting, 2Nd Lh0211--01 ~ ; W |
95121-VB200 |
US $90.43 |
||
|
95130X
|
95130X
95130-06J00
Bracket-Cab Mounting, 3Rd
0211--01 ~ ; W |
95130-06J00 |
— | ||
|
95131X
|
95131X
95131-VC000 Bracket-Cab Mounting, 3Rd0211--01 ~ 0408--01; W |
95131-VC000 |
US $53.57 |
||
|
95151M
|
95151M
95151-VB000 Bracket Assy-Cab Mounting, Lh0211--01 ~ ; W |
95151-VB000 |
US $69.26 |
||
|
95154M
|
95154M
95154-VB000 Reinforce-5Th Cab Mounting Bracket0211--01 ~ ; W |
95154-VB000 |
US $14.11 |
