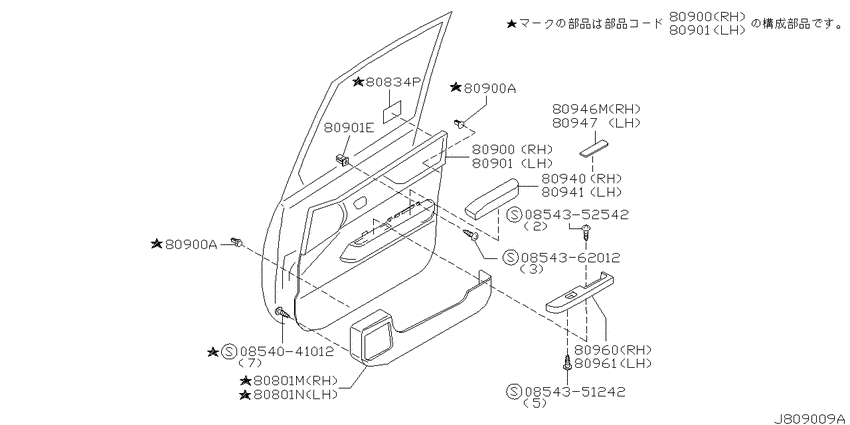

Front door trimming (2004-08-01 ~ ; W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0854041012
|
0854041012
08540-41012
SCREWTAPPING
|
08540-41012 |
— | ||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.50 |
||
|
0854352542
|
0854352542
08543-52542
SCREWTAPPING
|
08543-52542 |
— | ||
|
0854362012
|
0854362012
08543-62012 SCREWTAPPING |
08543-62012 |
US $3.06 |
||
|
80801M
|
80801M
80910-VB001 Pocket-Door, Rh0211--01 ~ 0408--01; W |
80910-VB001 |
US $53.57 |
||
|
80801M
|
80801M
80910-VC800 Pocket-Door, Rh0211--01 ~ 0408--01; *W |
80910-VC800 |
US $53.57 |
||
|
80801M
|
80801M
80910-VD210 Pocket-Door, Rh0408--01 ~ ; W |
80910-VD210 |
US $33.70 |
||
|
80801M
|
80801M
80910-VD271 Pocket-Door, Rh0408--01 ~ ; W |
80910-VD271 |
US $33.70 |
||
|
80801N
|
80801N
80911-VB001 Pocket-Door, Lh0211--01 ~ 0408--01; W |
80911-VB001 |
US $53.57 |
||
|
80801N
|
80801N
80911-VC800 Pocket-Door, Lh0211--01 ~ 0408--01; *W |
80911-VC800 |
US $53.57 |
||
|
80801N
|
80801N
80911-VD210 Pocket-Door, Lh0408--01 ~ ; W |
80911-VD210 |
US $33.70 |
||
|
80801N
|
80801N
80911-VD271 Pocket-Door, Lh0408--01 ~ ; W |
80911-VD271 |
US $33.70 |
||
|
80834P
|
80834P
80970-VB060 Seal Assy-Front Door Inside0211--01 ~ 0408--01; W |
80970-VB060 |
US $20.30 |
||
|
80900
|
80900
80900-VC861 Finisher Assy-Front Door, Rh0211--01 ~ 0408--01; W |
80900-VC861 |
US $879.51 |
||
|
80900
|
80900
80900-VC870 Finisher Assy-Front Door, Rh0211--01 ~ 0408--01; *W |
80900-VC870 |
US $764.64 |
||
|
80900
|
80900
80900-VC871 Finisher Assy-Front Door, Rh0211--01 ~ 0408--01; *W |
80900-VC871 |
US $764.64 |
||
|
80900
|
80900
80900-VD270 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; W |
80900-VD270 |
US $385.15 |
||
|
80900
|
80900
80900-VD271 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; W |
80900-VD271 |
US $385.15 |
||
|
80900
|
80900
80900-VD27A Finisher Assy-Front Door, Rh0609--01 ~ ; W |
80900-VD27A |
US $321.43 |
||
|
80900
|
80900
80900-VD27B Finisher Assy-Front Door, Rh0609--01 ~ ; W |
80900-VD27B |
US $321.43 |
||
|
80900
|
80900
80900-VD280 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; *W |
80900-VD280 |
US $574.90 |
||
|
80900
|
80900
80900-VD281 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; *W |
80900-VD281 |
US $574.90 |
||
|
80900
|
80900
80900-VD28A Finisher Assy-Front Door, Rh0609--01 ~ ; *W |
80900-VD28A |
US $480.02 |
||
|
80900
|
80900
80900-VD28B Finisher Assy-Front Door, Rh0609--01 ~ ; *W |
80900-VD28B |
US $480.02 |
||
|
80900
|
80900
80999VE000 Clip-Finisher0211--01 ~ 0408--01; W |
80999VE000 |
from US $0.63 |
||
|
80900
|
80900
80900-VC861 Finisher Assy-Front Door, Rh0211--01 ~ 0408--01; W |
80900-VC861 |
US $879.51 |
||
|
80900
|
80900
80900-VC870 Finisher Assy-Front Door, Rh0211--01 ~ 0408--01; *W |
80900-VC870 |
US $764.64 |
||
|
80900
|
80900
80900-VC871 Finisher Assy-Front Door, Rh0211--01 ~ 0408--01; *W |
80900-VC871 |
US $764.64 |
||
|
80900
|
80900
80900-VD270 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; W |
80900-VD270 |
US $385.15 |
||
|
80900
|
80900
80900-VD271 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; W |
80900-VD271 |
US $385.15 |
||
|
80900
|
80900
80900-VD27A Finisher Assy-Front Door, Rh0609--01 ~ ; W |
80900-VD27A |
US $321.43 |
||
|
80900
|
80900
80900-VD27B Finisher Assy-Front Door, Rh0609--01 ~ ; W |
80900-VD27B |
US $321.43 |
||
|
80900
|
80900
80900-VD280 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; *W |
80900-VD280 |
US $574.90 |
||
|
80900
|
80900
80900-VD281 Finisher Assy-Front Door, Rh0408--01 ~ 0609--01; *W |
80900-VD281 |
US $574.90 |
||
|
80900
|
80900
80900-VD28A Finisher Assy-Front Door, Rh0609--01 ~ ; *W |
80900-VD28A |
US $480.02 |
||
|
80900
|
80900
80900-VD28B Finisher Assy-Front Door, Rh0609--01 ~ ; *W |
80900-VD28B |
US $480.02 |
||
|
80900
|
80900
80999VE000 Clip-Finisher0211--01 ~ 0408--01; W |
80999VE000 |
from US $0.63 |
||
|
80900A
|
80900A
80999VE000 Clip-Finisher0211--01 ~ 0408--01; W |
80999VE000 |
from US $0.63 |
||
|
80900A
|
80900A
80999VE000 Clip-Finisher0211--01 ~ 0408--01; W |
80999VE000 |
from US $0.63 |
||
|
80901
|
80901
80901-VC861 Finisher Assy-Front Door, Lh0211--01 ~ 0408--01; W |
80901-VC861 |
US $764.64 |
||
|
80901
|
80901
80901-VC870 Finisher Assy-Front Door, Lh0211--01 ~ 0408--01; *W |
80901-VC870 |
US $764.64 |
||
|
80901
|
80901
80901-VC871 Finisher Assy-Front Door, Lh0211--01 ~ 0408--01; *W |
80901-VC871 |
US $764.64 |
||
|
80901
|
80901
80901-VD270 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; W |
80901-VD270 |
US $385.15 |
||
|
80901
|
80901
80901-VD271 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; W |
80901-VD271 |
US $385.15 |
||
|
80901
|
80901
80901-VD27A Finisher Assy-Front Door, Lh0609--01 ~ ; W |
80901-VD27A |
US $321.43 |
||
|
80901
|
80901
80901-VD27B Finisher Assy-Front Door, Lh0609--01 ~ ; W |
80901-VD27B |
US $321.43 |
||
|
80901
|
80901
80901-VD280 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; *W |
80901-VD280 |
US $574.90 |
||
|
80901
|
80901
80901-VD281 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; *W |
80901-VD281 |
US $574.90 |
||
|
80901
|
80901
80901-VD28A Finisher Assy-Front Door, Lh0609--01 ~ ; *W |
80901-VD28A |
US $480.02 |
||
|
80901
|
80901
80901-VD28B Finisher Assy-Front Door, Lh0609--01 ~ ; *W |
80901-VD28B |
US $480.02 |
||
|
80901
|
80901
0128100071 GROMMET-SCREW0211--01 ~ 0408--01; W |
0128100071 |
from US $0.48 |
||
|
80901
|
80901
80901-VC861 Finisher Assy-Front Door, Lh0211--01 ~ 0408--01; W |
80901-VC861 |
US $764.64 |
||
|
80901
|
80901
80901-VC870 Finisher Assy-Front Door, Lh0211--01 ~ 0408--01; *W |
80901-VC870 |
US $764.64 |
||
|
80901
|
80901
80901-VC871 Finisher Assy-Front Door, Lh0211--01 ~ 0408--01; *W |
80901-VC871 |
US $764.64 |
||
|
80901
|
80901
80901-VD270 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; W |
80901-VD270 |
US $385.15 |
||
|
80901
|
80901
80901-VD271 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; W |
80901-VD271 |
US $385.15 |
||
|
80901
|
80901
80901-VD27A Finisher Assy-Front Door, Lh0609--01 ~ ; W |
80901-VD27A |
US $321.43 |
||
|
80901
|
80901
80901-VD27B Finisher Assy-Front Door, Lh0609--01 ~ ; W |
80901-VD27B |
US $321.43 |
||
|
80901
|
80901
80901-VD280 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; *W |
80901-VD280 |
US $574.90 |
||
|
80901
|
80901
80901-VD281 Finisher Assy-Front Door, Lh0408--01 ~ 0609--01; *W |
80901-VD281 |
US $574.90 |
||
|
80901
|
80901
80901-VD28A Finisher Assy-Front Door, Lh0609--01 ~ ; *W |
80901-VD28A |
US $480.02 |
||
|
80901
|
80901
80901-VD28B Finisher Assy-Front Door, Lh0609--01 ~ ; *W |
80901-VD28B |
US $480.02 |
||
|
80901
|
80901
0128100071 GROMMET-SCREW0211--01 ~ 0408--01; W |
0128100071 |
from US $0.48 |
||
|
80901E
|
80901E
0128100071 GROMMET-SCREW0211--01 ~ 0408--01; W |
0128100071 |
from US $0.48 |
||
|
80940
|
80940
80940-VC811 Armrest-Front Door, Rh0211--01 ~ 0408--01; W |
80940-VC811 |
US $99.07 |
||
|
80940
|
80940
80940-VD210 Armrest-Front Door, Rh0408--01 ~ ; W |
80940-VD210 |
from US $57.57 |
||
|
80940
|
80940
80940-VD211 Armrest-Front Door, Rh0408--01 ~ ; W |
80940-VD211 |
US $62.35 |
||
|
80941
|
80941
80941-VC811 Armrest-Front Door, Lh0211--01 ~ 0408--01; W |
80941-VC811 |
US $99.07 |
||
|
80941
|
80941
80941-VD210 Armrest-Front Door, Lh0408--01 ~ ; W |
80941-VD210 |
from US $57.57 |
||
|
80941
|
80941
80941-VD211
Armrest-Front Door, Lh
0408--01 ~ ; W |
80941-VD211 |
— | ||
|
80946M
|
80946M
80946-VB010 Pad-Front Door Armrest, Rh0211--01 ~ 0408--01; W |
80946-VB010 |
from US $7.63 |
||
|
80947
|
80947
80947-VB010 Pad-Front Door Armrest, Lh0211--01 ~ 0408--01; W |
80947-VB010 |
from US $7.49 |
||
|
80960
|
80960
80960-VC710 Finisher-Power Window Switch, Front Rh0211--01 ~ 0408--01; W |
80960-VC710 |
US $118.37 |
||
|
80960
|
80960
80960-VD210 Finisher-Power Window Switch, Front Rh0408--01 ~ ; W |
80960-VD210 |
US $118.37 |
||
|
80961
|
80961
80961-VC710 Finisher-Power Window Switch, Front Lh0211--01 ~ 0408--01; W |
80961-VC710 |
US $118.37 |
||
|
80961
|
80961
80961-VD210 Finisher-Power Window Switch, Front Lh0408--01 ~ ; W |
80961-VD210 |
US $118.37 |
