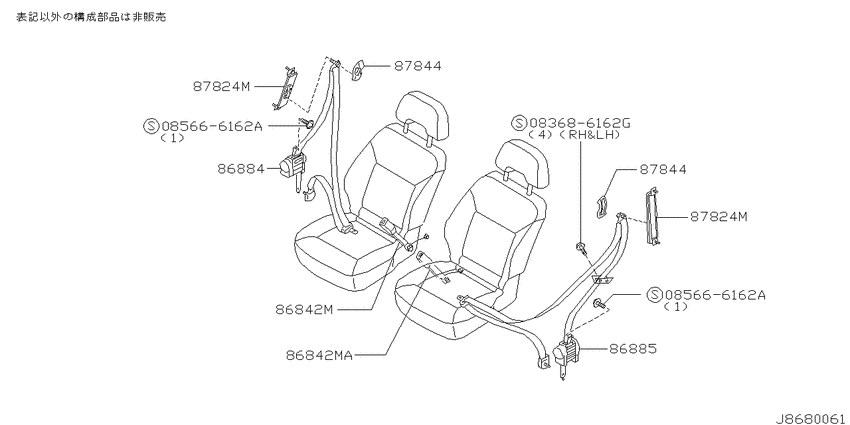

Front seat belt (2002-11-01 ~ 2004-08-01; W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686162G
|
083686162G
083686162G
SCRHEX HDPP W
|
083686162G |
— | ||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
from US $0.54 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
from US $0.54 |
||
|
86842M
|
86842M
86842-VB261 ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸﾙ0211--01 ~ 0408--01; W |
86842-VB261 |
US $77.62 |
||
|
86842M
|
86842M
86842-VB271 ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸﾙ0211--01 ~ 0408--01; *W |
86842-VB271 |
US $77.62 |
||
|
86842M
|
86842M
86842-VD261 ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸﾙ0408--01 ~ ; W |
86842-VD261 |
US $77.62 |
||
|
86842M
|
86842M
86842-VD271 ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸﾙ0408--01 ~ ; *W |
86842-VD271 |
US $77.62 |
||
|
86842M
|
86842M
86843-VB261 ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸﾙ0403--01 ~ 0408--01; W |
86843-VB261 |
US $77.62 |
||
|
86842M
|
86842M
86843-VC201 Belt Assy-Buckle, Front Seat0211--01 ~ 0403--01; W |
86843-VC201 |
US $46.37 |
||
|
86842M
|
86842M
86843-VC211 Belt Assy-Buckle, Front Seat0211--01 ~ 0408--01; *W |
86843-VC211 |
US $46.37 |
||
|
86842M
|
86842M
86843-VD101 Belt Assy-Buckle, Front Seat0408--01 ~ ; W |
86843-VD101 |
US $29.23 |
||
|
86842M
|
86842M
86843-VD111 Belt Assy-Buckle, Front Seat0408--01 ~ ; *W |
86843-VD111 |
US $29.23 |
||
|
86842MA
|
86842MA
86843-VB261 ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸﾙ0403--01 ~ 0408--01; W |
86843-VB261 |
US $77.62 |
||
|
86842MA
|
86842MA
86843-VC201 Belt Assy-Buckle, Front Seat0211--01 ~ 0403--01; W |
86843-VC201 |
US $46.37 |
||
|
86842MA
|
86842MA
86843-VC211 Belt Assy-Buckle, Front Seat0211--01 ~ 0408--01; *W |
86843-VC211 |
US $46.37 |
||
|
86842MA
|
86842MA
86843-VD101 Belt Assy-Buckle, Front Seat0408--01 ~ ; W |
86843-VD101 |
US $29.23 |
||
|
86842MA
|
86842MA
86843-VD111 Belt Assy-Buckle, Front Seat0408--01 ~ ; *W |
86843-VD111 |
US $29.23 |
||
|
86884
|
86884
86884VB261 ﾍﾞﾙﾄ ｱﾂｼｰ fr rh0211--01 ~ 0408--01; W |
86884VB261 |
US $603.22 |
||
|
86884
|
86884
86884-VD261 ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾀﾝｸﾞ ﾌﾟﾘﾃﾝｼﾖﾅ- ﾌﾛﾝﾄ rh0408--01 ~ 0511--01; W |
86884-VD261 |
US $603.22 |
||
|
86884
|
86884
86884-VD26B ﾍﾞﾙﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾀﾝｸﾞ ﾌﾟﾘﾃﾝｼﾖﾅ- ﾌﾛﾝﾄ rh0511--01 ~ ; W |
86884-VD26B |
US $603.22 |
||
|
86885
|
86885
86885-VC501
Belt Assy-Tongue, Pretensioner Front Lh
0211--01 ~ 0408--01; W |
86885-VC501 |
— | ||
| replacements | |||||
|
86885
|
86885
86885-VD16A Belt Assy-Tongue, Pretensioner Front Lh0211--01 ~ 0408--01; W |
86885-VD16A |
US $634.13 |
||
|
86885
|
86885
87836-CN001 Cover-Belt Anchor0211--01 ~ 0408--01; W |
87836-CN001 |
from US $4.42 |
||
|
86885
|
86885
86885-VD161 Belt Assy-Tongue, Pretensioner Front Lh0408--01 ~ 0511--01; W |
86885-VD161 |
US $603.22 |
||
|
86885
|
86885
86885-VD16B Belt Assy-Tongue, Pretensioner Front Lh0511--01 ~ ; W |
86885-VD16B |
US $603.22 |
||
|
87824M
|
87824M
87824-VB101 Adjuster-Seat Belt0211--01 ~ 0408--01; W |
87824-VB101 |
US $99.22 |
||
|
87824M
|
87824M
87824-VD201 Adjuster-Seat Belt0408--01 ~ 0511--01; W |
87824-VD201 |
US $99.22 |
||
|
87824M
|
87824M
87824-VB101 Adjuster-Seat Belt0211--01 ~ 0408--01; W |
87824-VB101 |
US $99.22 |
||
|
87824M
|
87824M
87824-VD201 Adjuster-Seat Belt0408--01 ~ 0511--01; W |
87824-VD201 |
US $99.22 |
||
|
87844
|
87844
87836-CN002 Cover-Belt Anchor0601--01 ~ 0607--01; W; COVER-BELT ANCH |
87836-CN002 |
US $4.18 |
||
|
87844
|
87844
87844-AD000 Cover-Belt Anchor0211--01 ~ 0408--01; W |
87844-AD000 |
US $5.04 |
||
|
87844
|
87844
87844-AU001 Cover-Belt Anchor0408--01 ~ 0511--01; W |
87844-AU001 |
from US $4.18 |
||
|
87844
|
87844
87836-CN002 Cover-Belt Anchor0607--01 ~ ; W |
87836-CN002 |
US $4.18 |
||
|
87844
|
87844
87836-CN002 Cover-Belt Anchor0601--01 ~ 0607--01; W; COVER-BELT ANCH |
87836-CN002 |
US $4.18 |
||
|
87844
|
87844
87844-AD000 Cover-Belt Anchor0211--01 ~ 0408--01; W |
87844-AD000 |
US $5.04 |
||
|
87844
|
87844
87844-AU001 Cover-Belt Anchor0408--01 ~ 0511--01; W |
87844-AU001 |
from US $4.18 |
||
|
87844
|
87844
87836-CN002 Cover-Belt Anchor0607--01 ~ ; W |
87836-CN002 |
US $4.18 |
||
