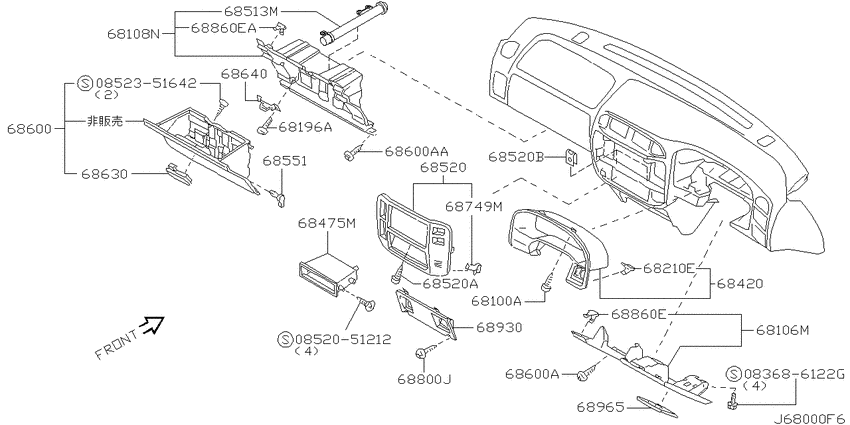

Instrument panel, pad & cluster lid (2002-11-01 ~ 2004-08-01; パッド & クラスター リッド; W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
0852051212
|
0852051212
08520-51212
SCREWTAPPING
|
08520-51212 |
— | ||
|
0852351642
|
0852351642
0852351642
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0852351642 |
— | ||
|
68100A
|
68100A
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68106M
|
68106M
68106VC701 Panel-Instrument Lower, Driver0211--01 ~ 0408--01; W |
68106VC701 |
US $250.56 |
||
|
68106M
|
68106M
68106VD200 Panel-Instrument Lower, Driver0408--01 ~ 0607--01; W |
68106VD200 |
US $250.56 |
||
|
68106M
|
68106M
68106-VD201 Panel-Instrument Lower, Driver0408--01 ~ 0607--01; W |
68106-VD201 |
US $250.56 |
||
|
68106M
|
68106M
68106-VD20A Panel-Instrument Lower, Driver0607--01 ~ 0701--01; W |
68106-VD20A |
US $250.56 |
||
|
68106M
|
68106M
68106-VD20B Panel-Instrument Lower, Driver0607--01 ~ 0701--01; W |
68106-VD20B |
US $250.56 |
||
|
68108N
|
68108N
68108-VC711 Panel-Instrument Lower, Assist0211--01 ~ 0408--01; W |
68108-VC711 |
US $117.79 |
||
|
68108N
|
68108N
68108-VD210 Panel-Instrument Lower, Assist0408--01 ~ 0607--01; W |
68108-VD210 |
US $234.72 |
||
|
68108N
|
68108N
68108-VD211 Panel-Instrument Lower, Assist0408--01 ~ 0607--01; W |
68108-VD211 |
US $234.72 |
||
|
68108N
|
68108N
68108VD22A Panel-Instrument Lower, Assist0607--01 ~ ; W |
68108VD22A |
US $234.72 |
||
|
68108N
|
68108N
68108-VD22B Panel-Instrument Lower, Assist0607--01 ~ ; W |
68108-VD22B |
US $234.72 |
||
|
68196A
|
68196A
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68210E
|
68210E
9693815U00 Clip-Trim0211--01 ~ 0408--01; W |
9693815U00 |
US $2.78 |
||
|
68420
|
68420
68240-VB200 Lid-Cluster0211--01 ~ 0408--01; W |
68240-VB200 |
US $266.40 |
||
|
68420
|
68420
68240-VD200 Lid-Cluster0408--01 ~ 0701--01; W |
68240-VD200 |
US $266.40 |
||
|
68420
|
68420
68240VD20A Lid-Cluster0701--01 ~ ; W |
68240VD20A |
US $266.40 |
||
|
68420
|
68420
0145100581 SCREW0607--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68475M
|
68475M
6847562J00 Pocket-Deck0211--01 ~ 0408--01; *W |
6847562J00 |
US $26.64 |
||
|
68475M
|
68475M
68475-WL000 Pocket-Deck0211--01 ~ 0408--01; W |
68475-WL000 |
US $63.79 |
||
|
68513M
|
68513M
68513-VC700 Damper Assy-Glove Box0211--01 ~ 0408--01; W |
68513-VC700 |
US $34.27 |
||
|
68520
|
68520
68260-VC720 Lid-Cluster0211--01 ~ 0408--01; W |
68260-VC720 |
US $365.33 |
||
|
68520
|
68520
68260-VD410 Lid-Cluster0408--01 ~ 0612--01; W |
68260-VD410 |
US $365.33 |
||
|
68520
|
68520
68260-VS51A Lid-Cluster0612--01 ~ 0701--01; W |
68260-VS51A |
US $365.33 |
||
|
68520
|
68520
68260VS52A Lid-Cluster0701--01 ~ ; W |
68260VS52A |
US $365.33 |
||
|
68520
|
68520
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68520
|
68520
0145100581 SCREW0408--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68520
|
68520
0145100581 SCREW0607--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68520
|
68520
21477-C0510 Nut0211--01 ~ 0408--01; W |
21477-C0510 |
US $1.73 |
||
|
68520A
|
68520A
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68520A
|
68520A
0145100581 SCREW0408--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68520A
|
68520A
0145100581 SCREW0607--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68520B
|
68520B
21477-C0510 Nut0211--01 ~ 0408--01; W |
21477-C0510 |
US $1.73 |
||
|
68551
|
68551
6855150Y00
Pin-Glove Box
0211--01 ~ 0408--01; W |
6855150Y00 |
— | ||
| replacement | |||||
|
68551
|
68551
68551-EQ00A Pin-glove box0211--01 ~ 0408--01; W |
68551-EQ00A |
from US $5.14 |
||
|
68600
|
68600
68500-VC801 Box-Glove0211--01 ~ 0408--01; W |
68500-VC801 |
US $190.08 |
||
|
68600
|
68600
68500-VD500 Box-Glove0408--01 ~ 0701--01; W |
68500-VD500 |
US $144 |
||
|
68600
|
68600
68500-VD501 Box-Glove0408--01 ~ 0701--01; W |
68500-VD501 |
US $144 |
||
|
68600
|
68600
68500VD50A Box-Glove0701--01 ~ ; W |
68500VD50A |
from US $119.95 |
||
|
68600
|
68600
68500-VD50B Box-Glove0701--01 ~ ; W |
68500-VD50B |
US $136.80 |
||
|
68600
|
68600
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68600
|
68600
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68600
|
68600
0145100581 SCREW0408--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68600
|
68600
0145100581 SCREW0511--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68600A
|
68600A
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68600A
|
68600A
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68600A
|
68600A
0145100581 SCREW0408--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68600A
|
68600A
0145100581 SCREW0511--01 ~ ; W |
0145100581 |
from US $0.63 |
||
|
68600AA
|
68600AA
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68630
|
68630
68630-6P102 Lock Assy-Glove Box Lid0408--01 ~ 0511--01; W |
68630-6P102 |
US $32.98 |
||
| replacement | |||||
|
68630
|
68630
686306P10C Lock Assy-Glove Box Lid0408--01 ~ 0511--01; W |
686306P10C |
US $33.70 |
||
|
68630
|
68630
68630-AL500 Lock Assy-Glove Box Lid0511--01 ~ ; W |
68630-AL500 |
US $33.70 |
||
| replacement | |||||
|
68630
|
68630
68630-AL50A
Lock assy-glove box lid
0511--01 ~ ; W |
68630-AL50A |
— | ||
|
68630
|
68630
68630-VC801 Lock Assy-Glove Box Lid0211--01 ~ 0408--01; W |
68630-VC801 |
US $42.91 |
||
|
68640
|
68640
68640-CG000 Striker-Glove Box Lid0408--01 ~ ; W |
68640-CG000 |
US $8.06 |
||
|
68640
|
68640
68640-VB000 Striker-Glove Box Lid0211--01 ~ 0408--01; W |
68640-VB000 |
US $8.06 |
||
|
68749M
|
68749M
9693815U00 Clip-Trim0211--01 ~ 0408--01; W |
9693815U00 |
US $2.78 |
||
|
68800J
|
68800J
0145100581 SCREW0211--01 ~ 0408--01; W |
0145100581 |
from US $0.63 |
||
|
68860E
|
68860E
9693815U00 Clip-Trim0211--01 ~ 0408--01; W |
9693815U00 |
US $2.78 |
||
|
68860E
|
68860E
9693815U00 Clip-Trim0211--01 ~ 0408--01; W |
9693815U00 |
US $2.78 |
||
|
68860EA
|
68860EA
9693815U00 Clip-Trim0211--01 ~ 0408--01; W |
9693815U00 |
US $2.78 |
||
|
68930
|
68930
68920-VD210 Cover-Instrument Stay0408--01 ~ 0701--01; W |
68920-VD210 |
US $33.55 |
||
|
68930
|
68930
68920-VD211 Cover-Instrument Stay0408--01 ~ 0701--01; W |
68920-VD211 |
US $33.55 |
||
|
68930
|
68930
68920VD21A Cover-Instrument Stay0701--01 ~ ; W |
68920VD21A |
from US $29.97 |
||
|
68930
|
68930
68920-VD21B
Cover-Instrument Stay
0701--01 ~ ; W |
68920-VD21B |
— | ||
|
68930
|
68930
68930-VC711 Cover-Instrument Stay0211--01 ~ 0408--01; W |
68930-VC711 |
US $44.21 |
||
|
68965
|
68965
689643J100 Lid-Fuse Block0408--01 ~ ; W |
689643J100 |
US $20.59 |
||
|
68965
|
68965
68964-VB001
Lid-Fuse Block
0211--01 ~ 0408--01; W |
68964-VB001 |
— | ||
|
68965
|
68965
68964-VD301 Lid-Fuse Block0408--01 ~ ; W |
68964-VD301 |
US $12.96 |
||
