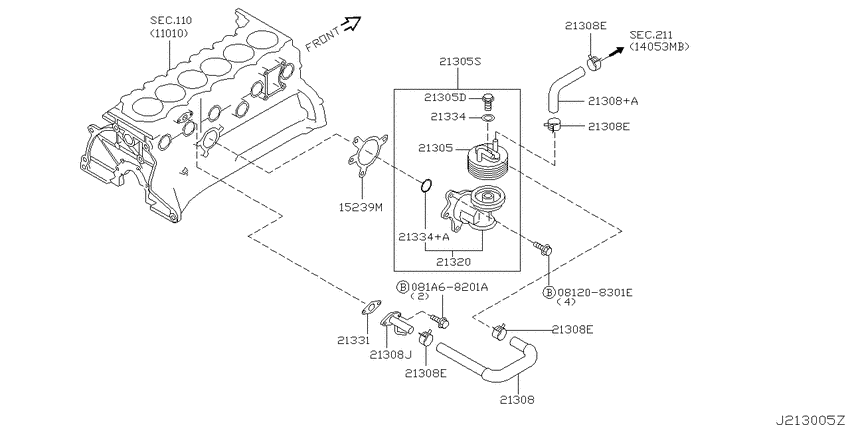

Oil cooler (2002-11-01 ~ ; TB48DE) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208301E
|
081208301E
08120-8301E
BOLTHEX
|
08120-8301E |
— | ||
|
081A68201A
|
081A68201A
081A68201A BOLTFLANGE |
081A68201A |
US $1.13 |
||
|
110
|
Cylinder block & oil pan
110
|
||||
|
110
|
Cylinder block & oil pan
110
|
||||
|
15239M
|
15239M
15239-VB001 Gasket-Oil Filter0211--01 ~ ; TB48DE |
15239-VB001 |
from US $4.16 |
||
|
211
|
Water hose & piping
211
|
||||
|
21305
|
21305
21305-VC200 Cooler Assy-Oil0211--01 ~ ; TB48DE |
21305-VC200 |
US $382.32 |
||
|
21305
|
21305
21313-0C421 Stud-Oil Cooler0211--01 ~ 0709--01; TB48DE |
21313-0C421 |
US $24.05 |
||
| replacement | |||||
|
21305
|
21305
21313-0C42A Stud-Oil Cooler0211--01 ~ 0709--01; TB48DE |
21313-0C42A |
US $24.48 |
||
|
21305
|
21305
21313-0C42A Stud-Oil Cooler0709--01 ~ ; TB48DE |
21313-0C42A |
US $24.48 |
||
|
21305
|
21305
21300-VC200 Cooler Set-Oil0211--01 ~ 0709--01; TB48DE |
21300-VC200 |
US $886.42 |
||
|
21305
|
21305
21300-VC20A Cooler Set-Oil0709--01 ~ ; TB48DE |
21300-VC20A |
US $614.54 |
||
|
21305
|
21305
21606-VC200 Cooler Assy-Oil0211--01 ~ 0701--01; AT |
21606-VC200 |
US $244.80 |
||
|
21305
|
21305
21606-VC20A Cooler Assy-Oil0701--01 ~ ; AT |
21606-VC20A |
US $326.71 |
||
|
21305D
|
21305D
21313-0C421 Stud-Oil Cooler0211--01 ~ 0709--01; TB48DE |
21313-0C421 |
US $24.05 |
||
| replacement | |||||
|
21305D
|
21305D
21313-0C42A Stud-Oil Cooler0211--01 ~ 0709--01; TB48DE |
21313-0C42A |
US $24.48 |
||
|
21305D
|
21305D
21313-0C42A Stud-Oil Cooler0709--01 ~ ; TB48DE |
21313-0C42A |
US $24.48 |
||
|
21305S
|
21305S
21300-VC200 Cooler Set-Oil0211--01 ~ 0709--01; TB48DE |
21300-VC200 |
US $886.42 |
||
|
21305S
|
21305S
21300-VC20A Cooler Set-Oil0709--01 ~ ; TB48DE |
21300-VC20A |
US $614.54 |
||
|
21308
|
21308
21307-VC200 Hose-Water0211--01 ~ ; TB48DE |
21307-VC200 |
from US $18.93 |
||
|
21308
|
21308
21307-VC205 Hose-Water0211--01 ~ ; TB48DE |
21307-VC205 |
from US $11.66 |
||
|
21308
|
21308
16439-17B00
Clip
0211--01 ~ ; TB48DE |
16439-17B00 |
— | ||
| replacement | |||||
|
21308
|
21308
1643917B0A Clip0211--01 ~ ; TB48DE |
1643917B0A |
from US $1.13 |
||
|
21308
|
21308
14075-VC200 Connector0211--01 ~ ; TB48DE |
14075-VC200 |
US $22.90 |
||
|
21308+A
|
21308+A
21307-VC205 Hose-Water0211--01 ~ ; TB48DE |
21307-VC205 |
from US $11.66 |
||
|
21308E
|
21308E
16439-17B00
Clip
0211--01 ~ ; TB48DE |
16439-17B00 |
— | ||
| replacement | |||||
|
21308E
|
21308E
1643917B0A Clip0211--01 ~ ; TB48DE |
1643917B0A |
from US $1.13 |
||
|
21308E
|
21308E
16439-17B00
Clip
0211--01 ~ ; TB48DE |
16439-17B00 |
— | ||
| replacement | |||||
|
21308E
|
21308E
1643917B0A Clip0211--01 ~ ; TB48DE |
1643917B0A |
from US $1.13 |
||
|
21308E
|
21308E
16439-17B00
Clip
0211--01 ~ ; TB48DE |
16439-17B00 |
— | ||
| replacement | |||||
|
21308E
|
21308E
1643917B0A Clip0211--01 ~ ; TB48DE |
1643917B0A |
from US $1.13 |
||
|
21308E
|
21308E
16439-17B00
Clip
0211--01 ~ ; TB48DE |
16439-17B00 |
— | ||
| replacement | |||||
|
21308E
|
21308E
1643917B0A Clip0211--01 ~ ; TB48DE |
1643917B0A |
from US $1.13 |
||
|
21308J
|
21308J
14075-VC200 Connector0211--01 ~ ; TB48DE |
14075-VC200 |
US $22.90 |
||
|
21320
|
21320
21340-VB000 Bracket-Oil Cooler Mounting0211--01 ~ 0709--01; TB48DE |
21340-VB000 |
US $227.52 |
||
|
21320
|
21320
21340-VB00A Bracket-Oil Cooler Mounting0709--01 ~ ; TB48DE |
21340-VB00A |
US $227.52 |
||
|
21331
|
21331
21331-AD200 Gasket-Connector0211--01 ~ 0612--01; TB48DE |
21331-AD200 |
US $4.18 |
||
|
21331
|
21331
21331AD20A Gasket-Connector0612--01 ~ ; TB48DE |
21331AD20A |
from US $3.09 |
||
|
21334
|
21334
2133430F00
Seal-0 Ring
0211--01 ~ ; TB48DE |
2133430F00 |
— | ||
| replacement | |||||
|
21334
|
21334
21334-30F0A Seal-0 Ring0211--01 ~ ; TB48DE |
21334-30F0A |
from US $3.46 |
||
|
21334
|
21334
21334-03J00 Seal-0 Ring0211--01 ~ ; TB48DE |
21334-03J00 |
US $0.86 |
||
|
21334+A
|
21334+A
21334-03J00 Seal-0 Ring0211--01 ~ ; TB48DE |
21334-03J00 |
US $0.86 |
||
