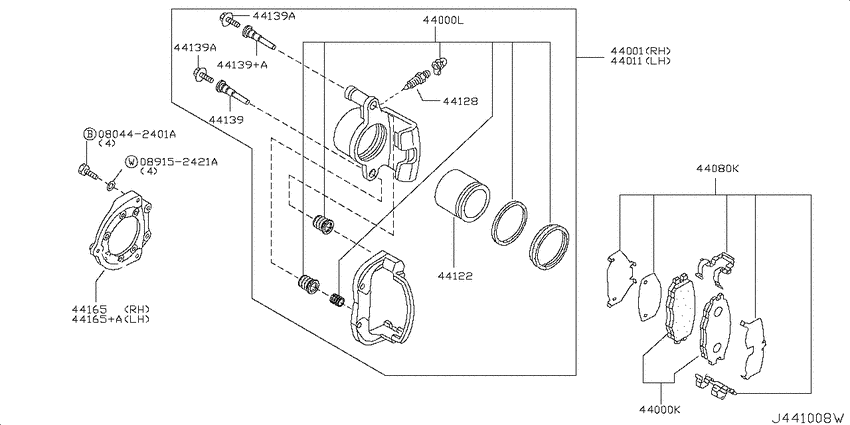

Rear brake (2002-11-01 ~ ; ディスクブレーキ; TB48DE) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A BOLTHEX |
080442401A |
US $1.87 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.57 |
||
|
44000K
|
44000K
44060VC290 Pad Kit-Disc Brake0211--01 ~ ; TB48DE |
44060VC290 |
US $136.80 |
||
|
44000L
|
44000L
AY620-NS012 Seal Kit-Disc Brake0211--01 ~ ; TB48DE |
AY620-NS012 |
US $80.93 |
||
|
44001
|
44001
44001-VC200
Caliper Assy-Rear Rh, W/o Pads Or Shims
0211--01 ~ 0408--01; TB48DE |
44001-VC200 |
— | ||
| replacement | |||||
|
44001
|
44001
44001-VS40B Caliper Assy-Rear Rh, W/o Pads Or Shims0211--01 ~ 0408--01; TB48DE |
44001-VS40B |
from US $417.97 |
||
|
44001
|
44001
44001-VC710
Caliper Assy-Rear Rh, W/o Pads Or Shims
0408--01 ~ 0608--01; TB48DE |
44001-VC710 |
— | ||
| replacement | |||||
|
44001
|
44001
44001-VS40B Caliper Assy-Rear Rh, W/o Pads Or Shims0408--01 ~ 0608--01; TB48DE |
44001-VS40B |
from US $417.97 |
||
|
44001
|
44001
44001-VS40B Caliper Assy-Rear Rh, W/o Pads Or Shims0608--01 ~ ; TB48DE |
44001-VS40B |
from US $417.97 |
||
|
44011
|
44011
44011-VC200
Caliper Assy-Rear Lh, W/o Pads Or Shims
0211--01 ~ 0408--01; TB48DE |
44011-VC200 |
— | ||
| replacement | |||||
|
44011
|
44011
44011-VS40B Caliper Assy-Rear Lh, W/o Pads Or Shims0211--01 ~ 0408--01; TB48DE |
44011-VS40B |
from US $418.54 |
||
|
44011
|
44011
44011-VC710
Caliper Assy-Rear Lh, W/o Pads Or Shims
0408--01 ~ 0608--01; TB48DE |
44011-VC710 |
— | ||
| replacement | |||||
|
44011
|
44011
44011-VS40B Caliper Assy-Rear Lh, W/o Pads Or Shims0408--01 ~ 0608--01; TB48DE |
44011-VS40B |
from US $418.54 |
||
|
44011
|
44011
44011-VS40B Caliper Assy-Rear Lh, W/o Pads Or Shims0608--01 ~ ; TB48DE |
44011-VS40B |
from US $418.54 |
||
|
44080K
|
44080K
44080-VC225 Hardware Kit-Rear Disc Brake Pad0211--01 ~ 0511--01; TB48DE |
44080-VC225 |
from US $39.51 |
||
|
44122
|
44122
41121-VC200 Piston-Cylinder0211--01 ~ ; TB48DE |
41121-VC200 |
from US $35.63 |
||
|
44128
|
44128
4112888E01
SCREW-BLEEDER
0211--01 ~ 0608--01; TB48DE |
4112888E01 |
— | ||
| replacement | |||||
|
44128
|
44128
41128AW70A Screw-Bleeder0211--01 ~ 0608--01; TB48DE |
41128AW70A |
from US $7.63 |
||
|
44128
|
44128
41128AW70A Screw-Bleeder0608--01 ~ ; TB48DE |
41128AW70A |
from US $7.63 |
||
|
44139
|
44139
44139-2Y000 Pin-Slide0211--01 ~ 0608--01; TB48DE |
44139-2Y000 |
US $15.12 |
||
|
44139
|
44139
441395Y50A Pin-Slide0608--01 ~ ; TB48DE |
441395Y50A |
from US $9.50 |
||
|
44139
|
44139
44140N9500 Pin-Lock0211--01 ~ ; TB48DE |
44140N9500 |
from US $8.45 |
||
|
44139
|
44139
44141AW70A Pin-Bolt0608--01 ~ ; TB48DE |
44141AW70A |
from US $3.15 |
||
|
44139
|
44139
44141-N9500
Pin-Bolt
0211--01 ~ 0608--01; TB48DE |
44141-N9500 |
— | ||
| replacement | |||||
|
44139
|
44139
44141AW70A Pin-Bolt0211--01 ~ 0608--01; TB48DE |
44141AW70A |
from US $3.15 |
||
|
44139+A
|
44139+A
44140N9500 Pin-Lock0211--01 ~ ; TB48DE |
44140N9500 |
from US $8.45 |
||
|
44139A
|
44139A
44141AW70A Pin-Bolt0608--01 ~ ; TB48DE |
44141AW70A |
from US $3.15 |
||
|
44139A
|
44139A
44141-N9500
Pin-Bolt
0211--01 ~ 0608--01; TB48DE |
44141-N9500 |
— | ||
| replacement | |||||
|
44139A
|
44139A
44141AW70A Pin-Bolt0211--01 ~ 0608--01; TB48DE |
44141AW70A |
from US $3.15 |
||
|
44139A
|
44139A
44141AW70A Pin-Bolt0608--01 ~ ; TB48DE |
44141AW70A |
from US $3.15 |
||
|
44139A
|
44139A
44141-N9500
Pin-Bolt
0211--01 ~ 0608--01; TB48DE |
44141-N9500 |
— | ||
| replacement | |||||
|
44139A
|
44139A
44141AW70A Pin-Bolt0211--01 ~ 0608--01; TB48DE |
44141AW70A |
from US $3.15 |
||
|
44165
|
44165
44155-VC200 Adapter-Caliper0211--01 ~ ; TB48DE |
44155-VC200 |
from US $97.63 |
||
|
44165
|
44165
44165-VC200 Adapter-Caliper0211--01 ~ ; TB48DE |
44165-VC200 |
from US $97.63 |
||
|
44165+A
|
44165+A
44165-VC200 Adapter-Caliper0211--01 ~ ; TB48DE |
44165-VC200 |
from US $97.63 |
||
