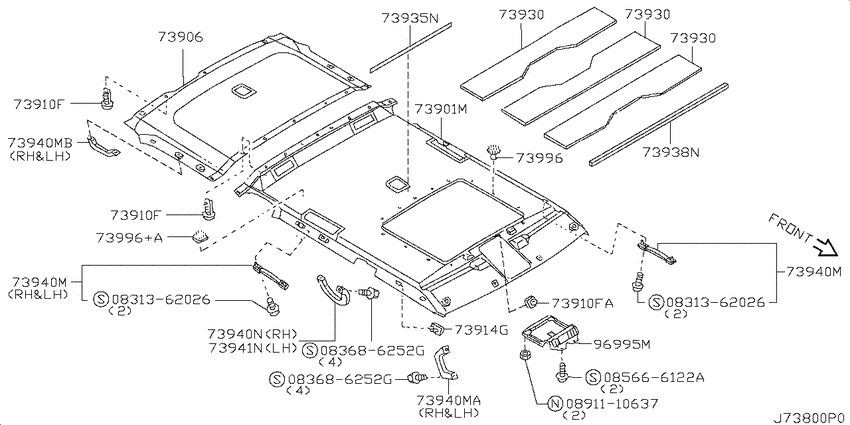

Roof trimming (2006-07-01 ~ ; サンルーフ付; *W) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831362026
|
0831362026
08313-62026
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-62026 |
— | ||
|
0831362026
|
0831362026
08313-62026
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-62026 |
— | ||
|
083686252G
|
083686252G
083686252G
SCRHEX HDPP W
|
083686252G |
— | ||
|
083686252G
|
083686252G
083686252G
SCRHEX HDPP W
|
083686252G |
— | ||
|
085666122A
|
085666122A
085666122A SCREWTAPPING |
085666122A |
US $0.57 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.46 |
||
|
73901M
|
73901M
73901-KD30A
Headlining-Front
0607--01 ~ ; W |
73901-KD30A |
— | ||
|
73901M
|
73901M
73901-VC801 Headlining-Front0211--01 ~ 0408--01; W |
73901-VC801 |
US $886.42 |
||
|
73901M
|
73901M
73901-VC811 Headlining-Front0211--01 ~ 0408--01; *W |
73901-VC811 |
US $886.42 |
||
|
73901M
|
73901M
73901-VD216 Headlining-Front0408--01 ~ 0511--01; W |
73901-VD216 |
US $560.74 |
||
|
73901M
|
73901M
73901-VD221 Headlining-Front0408--01 ~ 0511--01; *W |
73901-VD221 |
US $560.74 |
||
|
73906
|
73906
73906-KD30A
Headlining-Rear
0607--01 ~ ; W |
73906-KD30A |
— | ||
|
73906
|
73906
73906-VC001 Headlining-Rear0211--01 ~ 0408--01; W |
73906-VC001 |
US $441.79 |
||
|
73906
|
73906
73906-VD201 Headlining-Rear0408--01 ~ 0511--01; W |
73906-VD201 |
US $285.12 |
||
|
73910F
|
73910F
01553-04643 CLIP0408--01 ~ 0511--01; W |
01553-04643 |
from US $1.63 |
||
|
73910F
|
73910F
73998-VB006 Clip0211--01 ~ 0408--01; W |
73998-VB006 |
US $2.59 |
||
|
73910F
|
73910F
73998-VD201 Clip0408--01 ~ 0607--01; W |
73998-VD201 |
from US $1.73 |
||
|
73910F
|
73910F
01553-06531 CLIP0211--01 ~ 0408--01; W |
01553-06531 |
US $0.86 |
||
|
73910F
|
73910F
01553-04643 CLIP0408--01 ~ 0511--01; W |
01553-04643 |
from US $1.63 |
||
|
73910F
|
73910F
73998-VB006 Clip0211--01 ~ 0408--01; W |
73998-VB006 |
US $2.59 |
||
|
73910F
|
73910F
73998-VD201 Clip0408--01 ~ 0607--01; W |
73998-VD201 |
from US $1.73 |
||
|
73910F
|
73910F
01553-06531 CLIP0211--01 ~ 0408--01; W |
01553-06531 |
US $0.86 |
||
|
73910FA
|
73910FA
01553-06531 CLIP0211--01 ~ 0408--01; W |
01553-06531 |
US $0.86 |
||
|
73914G
|
73914G
76988-VB011
Clip-Trim
0211--01 ~ 0408--01; W |
76988-VB011 |
— | ||
|
73914G
|
73914G
76988-VD201 Clip-Trim0408--01 ~ 0607--01; W |
76988-VD201 |
from US $1.63 |
||
|
73914G
|
73914G
76988-WD200 Clip-Trim0408--01 ~ 0511--01; W |
76988-WD200 |
US $2.02 |
||
|
73930
|
73930
73930-VC300 Insulator-Roof0211--01 ~ 0501--01; W |
73930-VC300 |
US $16.27 |
||
|
73930
|
73930
73930-VD200 Insulator-Roof0501--01 ~ ; W |
73930-VD200 |
US $16.27 |
||
|
73930
|
73930
73930-VC300 Insulator-Roof0211--01 ~ 0501--01; W |
73930-VC300 |
US $16.27 |
||
|
73930
|
73930
73930-VD200 Insulator-Roof0501--01 ~ ; W |
73930-VD200 |
US $16.27 |
||
|
73930
|
73930
73930-VC300 Insulator-Roof0211--01 ~ 0501--01; W |
73930-VC300 |
US $16.27 |
||
|
73930
|
73930
73930-VD200 Insulator-Roof0501--01 ~ ; W |
73930-VD200 |
US $16.27 |
||
|
73935N
|
73935N
73931-VB010 Insulator-Sunroof0211--01 ~ ; *W |
73931-VB010 |
US $18.58 |
||
|
73938N
|
73938N
73938-VC300 Insulator-Roof0211--01 ~ ; W |
73938-VC300 |
US $8.35 |
||
|
73940M
|
73940M
73940VB001 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940VB001 |
US $35.57 |
||
|
73940M
|
73940M
73940-VD201 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD201 |
US $26.93 |
||
|
73940M
|
73940M
73940-VD20A Grip Assy-Assist0701--01 ~ ; W |
73940-VD20A |
from US $22.46 |
||
|
73940M
|
73940M
73940-WF100 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-WF100 |
US $25.63 |
||
|
73940M
|
73940M
73940-VB101 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940-VB101 |
US $35.57 |
||
|
73940M
|
73940M
73940-VC705 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-VC705 |
US $35.57 |
||
|
73940M
|
73940M
73940-VD301 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD301 |
US $26.93 |
||
|
73940M
|
73940M
73940-VD30A Grip Assy-Assist0701--01 ~ ; W |
73940-VD30A |
US $22.46 |
||
|
73940M
|
73940M
73940-VB011 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940-VB011 |
US $35.57 |
||
|
73940M
|
73940M
73940-VC700 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-VC700 |
US $35.57 |
||
|
73940M
|
73940M
73940-VD211 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD211 |
US $26.93 |
||
|
73940M
|
73940M
73940-VD21A Grip Assy-Assist0701--01 ~ ; W |
73940-VD21A |
US $22.46 |
||
|
73940M
|
73940M
73940VB001 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940VB001 |
US $35.57 |
||
|
73940M
|
73940M
73940-VD201 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD201 |
US $26.93 |
||
|
73940M
|
73940M
73940-VD20A Grip Assy-Assist0701--01 ~ ; W |
73940-VD20A |
from US $22.46 |
||
|
73940M
|
73940M
73940-WF100 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-WF100 |
US $25.63 |
||
|
73940M
|
73940M
73940-VB101 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940-VB101 |
US $35.57 |
||
|
73940M
|
73940M
73940-VC705 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-VC705 |
US $35.57 |
||
|
73940M
|
73940M
73940-VD301 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD301 |
US $26.93 |
||
|
73940M
|
73940M
73940-VD30A Grip Assy-Assist0701--01 ~ ; W |
73940-VD30A |
US $22.46 |
||
|
73940M
|
73940M
73940-VB011 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940-VB011 |
US $35.57 |
||
|
73940M
|
73940M
73940-VC700 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-VC700 |
US $35.57 |
||
|
73940M
|
73940M
73940-VD211 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD211 |
US $26.93 |
||
|
73940M
|
73940M
73940-VD21A Grip Assy-Assist0701--01 ~ ; W |
73940-VD21A |
US $22.46 |
||
|
73940MA
|
73940MA
73940-VB101 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940-VB101 |
US $35.57 |
||
|
73940MA
|
73940MA
73940-VC705 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-VC705 |
US $35.57 |
||
|
73940MA
|
73940MA
73940-VD301 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD301 |
US $26.93 |
||
|
73940MA
|
73940MA
73940-VD30A Grip Assy-Assist0701--01 ~ ; W |
73940-VD30A |
US $22.46 |
||
|
73940MB
|
73940MB
73940-VB011 Grip Assy-Assist0211--01 ~ 0408--01; W |
73940-VB011 |
US $35.57 |
||
|
73940MB
|
73940MB
73940-VC700 Grip Assy-Assist0408--01 ~ 0511--01; W |
73940-VC700 |
US $35.57 |
||
|
73940MB
|
73940MB
73940-VD211 Grip Assy-Assist0408--01 ~ 0607--01; W |
73940-VD211 |
US $26.93 |
||
|
73940MB
|
73940MB
73940-VD21A Grip Assy-Assist0701--01 ~ ; W |
73940-VD21A |
US $22.46 |
||
|
73940N
|
73940N
73940-VB111 Grip Assy-Assist, Rh0211--01 ~ 0408--01; W |
73940-VB111 |
US $35.57 |
||
|
73940N
|
73940N
73940-VC710 Grip Assy-Assist, Rh0408--01 ~ 0511--01; W |
73940-VC710 |
US $35.57 |
||
|
73940N
|
73940N
73940-VD311 Grip Assy-Assist, Rh0408--01 ~ 0607--01; W |
73940-VD311 |
US $26.93 |
||
|
73940N
|
73940N
73940-VD31A Grip Assy-Assist, Rh0701--01 ~ ; W |
73940-VD31A |
US $22.46 |
||
|
73941N
|
73941N
73941VB111 Grip Assy-Assist, Lh0211--01 ~ 0408--01; W |
73941VB111 |
US $35.57 |
||
|
73941N
|
73941N
73941-VC710 Grip Assy-Assist, Lh0408--01 ~ 0511--01; W |
73941-VC710 |
US $35.57 |
||
|
73941N
|
73941N
73941-VD311 Grip Assy-Assist, Lh0408--01 ~ 0607--01; W |
73941-VD311 |
US $26.93 |
||
|
73941N
|
73941N
73941-VD31A Grip Assy-Assist, Lh0701--01 ~ ; W |
73941-VD31A |
US $22.46 |
||
|
73996
|
73996
73996-VE000 Fastener-Trim0211--01 ~ ; *W; ﾌﾞﾙｰ |
73996-VE000 |
US $2.74 |
||
|
73996
|
73996
73996-VE001 Fastener-Trim0211--01 ~ 0408--01; *W; ﾌﾞﾗﾂｸ |
73996-VE001 |
US $2.74 |
||
|
73996
|
73996
7399660U10 Fastener-Trim0211--01 ~ ; W |
7399660U10 |
US $0.86 |
||
|
73996+A
|
73996+A
7399660U10 Fastener-Trim0211--01 ~ ; W |
7399660U10 |
US $0.86 |
||
|
96995M
|
96995M
96992-VB000 ﾌﾞﾗｹﾂﾄ,ﾙ-ﾌ ｺﾝｿ-ﾙ0211--01 ~ 0408--01; W |
96992-VB000 |
US $26.50 |
||
|
96995M
|
96995M
96992-VB010 BRACKETROOF CO0211--01 ~ ; *W |
96992-VB010 |
US $26.50 |
