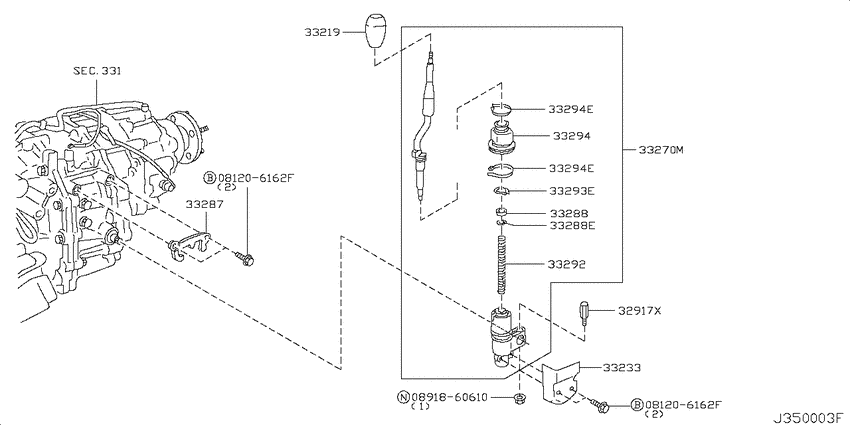

Transfer control parts (2004-08-01 ~ ; TB48DE) Diagram Nissan SAFARI
- Year
- 2002 - 2012
- Sales region
- Japan
- Engine
- TB48DE
- transmission
- AT
- grade
- GRL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206162F
|
081206162F
081206162F
BOLTHEX
|
081206162F |
— | ||
|
081206162F
|
081206162F
081206162F
BOLTHEX
|
081206162F |
— | ||
|
0891860610
|
0891860610
0891860610 NUTSLOCK |
0891860610 |
US $2.55 |
||
|
32917X
|
32917X
32917-E9301
Pin-Retaining
0211--01 ~ 0702--01; TB48DE |
32917-E9301 |
— | ||
| replacement | |||||
|
32917X
|
32917X
32917E930A Pin-Cotter0211--01 ~ 0702--01; TB48DE |
32917E930A |
from US $4.03 |
||
|
32917X
|
32917X
32917E930A Pin-Cotter0702--01 ~ ; TB48DE |
32917E930A |
from US $4.03 |
||
|
331
|
Transfer case
331
|
||||
|
33219
|
33219
33218-32J07 Knob-Control, Transfer0408--01 ~ ; TB48DE |
33218-32J07 |
from US $65.85 |
||
|
33219
|
33219
33218-VB005 Knob-Control, Transfer0211--01 ~ 0408--01; TB48DE; (W) |
33218-VB005 |
US $68.40 |
||
|
33219
|
33219
33218-VB006
Knob-Control, Transfer
0211--01 ~ 0408--01; TB48DE; (C) |
33218-VB006 |
— | ||
| replacement | |||||
|
33219
|
33219
33218-32J07 Knob-Control, Transfer0211--01 ~ 0408--01; TB48DE; (C) |
33218-32J07 |
from US $65.85 |
||
|
33233
|
33233
33233-VC200 Plate-Select0408--01 ~ 0612--01; TB48DE |
33233-VC200 |
US $7.92 |
||
|
33233
|
33233
33233-VC20A Plate-Select0612--01 ~ ; TB48DE |
33233-VC20A |
US $5.04 |
||
|
33270M
|
33270M
33274-VC200 Lever Compl-Transfer Control0211--01 ~ ; TB48DE |
33274-VC200 |
from US $307.27 |
||
|
33287
|
33287
33287-VB000 Plate-Guide, Control Lever0211--01 ~ ; TB48DE |
33287-VB000 |
from US $21.31 |
||
|
33288
|
33288
33288-41G01 Bush-Control Lever0211--01 ~ ; TB48DE |
33288-41G01 |
from US $5.18 |
||
|
33288
|
33288
33289-41G01 Ring-Retaining0211--01 ~ ; TB48DE |
33289-41G01 |
US $5.18 |
||
|
33288E
|
33288E
33289-41G01 Ring-Retaining0211--01 ~ ; TB48DE |
33289-41G01 |
US $5.18 |
||
|
33292
|
33292
33292-41G00 Spring-Control Lever0211--01 ~ ; TB48DE |
33292-41G00 |
US $5.18 |
||
|
33293E
|
33293E
33290-41G00 Ring-Snap0211--01 ~ ; TB48DE |
33290-41G00 |
US $4.18 |
||
|
33294
|
33294
33294-VB000 Boot-Transfer Control Lever0211--01 ~ ; TB48DE |
33294-VB000 |
from US $5.68 |
||
|
33294
|
33294
2421633G00 Band-Harness, Transfer Switch0211--01 ~ ; TB48DE |
2421633G00 |
from US $2.16 |
||
|
33294E
|
33294E
2421633G00 Band-Harness, Transfer Switch0211--01 ~ ; TB48DE |
2421633G00 |
from US $2.16 |
||
|
33294E
|
33294E
2421633G00 Band-Harness, Transfer Switch0211--01 ~ ; TB48DE |
2421633G00 |
from US $2.16 |
||
