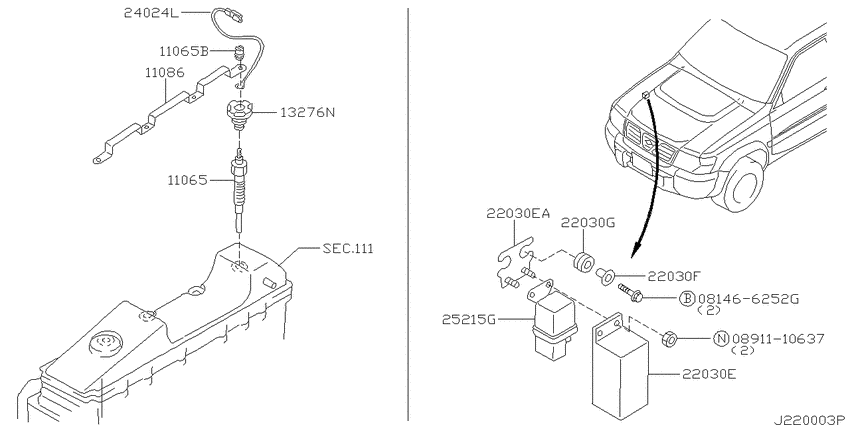

Ignition System (1999-09-01 ~ 2002-11-01; ZD30DDTI) Diagram Nissan SAFARI
- Year
- 1999 - 2002
- Sales region
- Japan
- Engine
- ZD30DDTI
- transmission
- AT
- grade
- S/SP
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
11065
|
11065
11065-2W202
Plug-Glow
9909--01 ~ 0211--01; ZD30DDTI; NGK[B512] |
11065-2W202 |
— | ||
| replacement | |||||
|
11065
|
11065
11065-2W25B 110652W25B9909--01 ~ 0211--01; ZD30DDTI; NGK[B512] |
11065-2W25B |
from US $70.56 |
||
|
11065
|
11065
11065-2W211 Plug-Glow9909--01 ~ 0211--01; ZD30DDTI; ｷﾖｳｾﾗ[B512] |
11065-2W211 |
US $86.40 |
||
|
11065
|
11065
110660W800 Nut9909--01 ~ 0211--01; ZD30DDTI |
110660W800 |
US $2.88 |
||
|
11065B
|
11065B
110660W800 Nut9909--01 ~ 0211--01; ZD30DDTI |
110660W800 |
US $2.88 |
||
|
11086
|
11086
110862W200 Cable Assy0103--01 ~ 0211--01; ZD30DDTI |
110862W200 |
US $33.39 |
||
|
11086
|
11086
11086-VG100 Cable Assy9909--01 ~ 0103--01; ZD30DDTI |
11086-VG100 |
US $21.46 |
||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
111
|
Cylinder head & rocker cover
111
|
||||
|
13276N
|
13276N
132762W201 Seal-Oil, Rocker Cover9909--01 ~ 0211--01; ZD30DDTI |
132762W201 |
from US $8.23 |
||
|
22030E
|
22030E
25234-VB300 Bracket-Relay9909--01 ~ 0211--01; ZD30DDTI |
25234-VB300 |
US $6.09 |
||
|
22030E
|
22030E
25238-VB300 Bracket-Relay9909--01 ~ 0211--01; ZD30DDTI |
25238-VB300 |
US $6.05 |
||
|
22030EA
|
22030EA
25238-VB300 Bracket-Relay9909--01 ~ 0211--01; ZD30DDTI |
25238-VB300 |
US $6.05 |
||
|
22030F
|
22030F
49728-55S00
Collar
9909--01 ~ 0211--01; ZD30DDTI |
49728-55S00 |
— | ||
| replacement | |||||
|
22030F
|
22030F
49728-55S0A Collar-Insulator9909--01 ~ 0211--01; ZD30DDTI |
49728-55S0A |
US $2.64 |
||
|
22030G
|
22030G
18316S3260 Bush9909--01 ~ 0211--01; ZD30DDTI |
18316S3260 |
from US $3.44 |
||
|
24024L
|
24024L
24024-2W200 Harness Assy-Glow9909--01 ~ 0211--01; ZD30DDTI |
24024-2W200 |
US $38.66 |
||
|
25215G
|
25215G
25230-80A00 Relay Assy-Glow Plug9909--01 ~ 0211--01; ZD30DDTI |
25230-80A00 |
US $53.42 |
||
