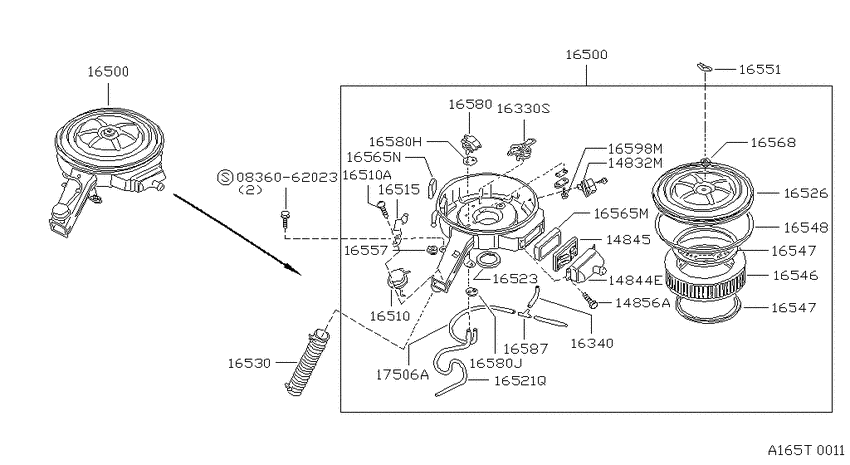

Air cleaner (1982-08-01 ~ 1983-09-01; E15S) Diagram Nissan SENTRA/200SX
- Year
- 1982
- Sales region
- U.S.A.
- Engine
- E15
- transmission
- MT
- body
- W
- trim lvl
- DX
- emission
- FED
- gears/shift type
- F4
- save gas
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836062023
|
0836062023
08360-62023
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-62023 |
— | ||
|
14832M
|
14832M
14828-23M20
Valve Assy-Control, Air Induce
1982-08-01 ~ 1983-09-01; E15S; , |
14828-23M20 |
— | ||
|
14832M
|
14832M
14828-23M21
Valve Assy-Control, Air Induce
1982-08-01 ~ 1983-09-01; E15S; , |
14828-23M21 |
— | ||
|
14844E
|
14844E
14856-23M21
Case-Air Induce Valve
1982-08-01 ~ 1983-09-01; E15S; , |
14856-23M21 |
— | ||
|
14845
|
14845
14845-H9800 Valve Assy-Air Induce1982-08-01 ~ 1983-09-01; E15S; , |
14845-H9800 |
US $64.51 |
||
|
14856A
|
14856A
A6516-33M11
Bolt
1982-08-01 ~ 1983-09-01; E15S; , |
A6516-33M11 |
— | ||
|
16330S
|
16330S
16330-H7200
Compensator Set-Idle
1982-08-01 ~ 1983-09-01; E15S; , |
16330-H7200 |
— | ||
|
16340
|
16340
16523-23M00
Hose-Idle Compensator To Connector
1982-02-01 ~ 1983-09-01; FED.NMPG.E15S.MT +CAL.E15S.MT.F5; , |
16523-23M00 |
— | ||
|
16340
|
16340
16523-23M20
Hose-Idle Compensator To Connector
1982-08-01 ~ 1983-09-01; E15S; , |
16523-23M20 |
— | ||
|
16500
|
16500
16500-23M10
Air Cleaner
1982-02-01 ~ 1982-08-01; FED.NMPG.E15S.MT +CAL.E15S.MT.F5; , |
16500-23M10 |
— | ||
|
16500
|
16500
16500-23M21
Air Cleaner
1982-08-01 ~ 1983-09-01; E15S; , |
16500-23M21 |
— | ||
|
16500
|
16500
16500-23M10
Air Cleaner
1982-02-01 ~ 1982-08-01; FED.NMPG.E15S.MT +CAL.E15S.MT.F5; , |
16500-23M10 |
— | ||
|
16500
|
16500
16500-23M21
Air Cleaner
1982-08-01 ~ 1983-09-01; E15S; , |
16500-23M21 |
— | ||
|
16510
|
16510
1651001M00
Motor Assy-Vacuum
1982-08-01 ~ 1983-09-01; E15S; , |
1651001M00 |
— | ||
|
16510
|
16510
16516-G2100 Bolt1982-08-01 ~ 1983-09-01; E15S; , |
16516-G2100 |
US $0.86 |
||
|
16510A
|
16510A
16516-G2100 Bolt1982-08-01 ~ 1983-09-01; E15S; , |
16516-G2100 |
US $0.86 |
||
|
16515
|
16515
A6515-01M00 Holder-Air Guide1982-08-01 ~ 1983-09-01; E15S; , |
A6515-01M00 |
US $3.60 |
||
|
16521Q
|
16521Q
02141-624P0
Hose-Vacuum
1982-02-01 ~ 1982-08-01; E15S; L=240 S/#A4911-B8200 FOR SERVISE |
02141-624P0 |
— | ||
|
16521Q
|
16521Q
B2320-Y4000 Hose-Vacuum Control1982-08-01 ~ 1983-09-01; E15S; L=5000 CUT USE |
B2320-Y4000 |
US $32.26 |
||
|
16521Q
|
16521Q
B2320-Y4001
Hose-Idle Compensator To Connector
1982-08-01 ~ 1983-09-01; E15S; L=5000 CUT USE |
B2320-Y4001 |
— | ||
| replacement | |||||
|
16521Q
|
16521Q
B2318N3301 Hose-Vacuum Control1982-08-01 ~ 1983-09-01; E15S; L=5000 CUT USE |
B2318N3301 |
from US $61.96 |
||
|
16523
|
16523
16523-H1000 Insulator1982-08-01 ~ 1983-09-01; E15S; , |
16523-H1000 |
US $6.19 |
||
|
16526
|
16526
A6526-23M10
Air Cleaner Housing Cover
1982-02-01 ~ 1983-09-01; FED.NMPG.E15S.MT +CAL.E15S.MT.F5; , |
A6526-23M10 |
— | ||
|
16526
|
16526
A6526-23M21
Air Cleaner Housing Cover
1982-08-01 ~ 1983-09-01; E15S; , |
A6526-23M21 |
— | ||
|
16530
|
16530
16530-01M00
Duct-Air
1982-08-01 ~ 1983-09-01; E15S; , |
16530-01M00 |
— | ||
|
16546
|
16546
16546-18000
Air Cleaner Element
1982-08-01 ~ 1983-09-01; E15S; , |
16546-18000 |
— | ||
|
16546
|
16546
16516-W0400 Bolt1982-02-01 ~ 1982-08-01; E15S; , |
16516-W0400 |
US $0.86 |
||
|
16547
|
16547
16547-H1000
Packing
1982-08-01 ~ 1983-09-01; E15S; , |
16547-H1000 |
— | ||
| replacement | |||||
|
16547
|
16547
16547-52A00
Packing
1982-08-01 ~ 1983-09-01; E15S; , |
16547-52A00 |
— | ||
|
16547
|
16547
16547-H1000
Packing
1982-08-01 ~ 1983-09-01; E15S; , |
16547-H1000 |
— | ||
| replacement | |||||
|
16547
|
16547
16547-52A00
Packing
1982-08-01 ~ 1983-09-01; E15S; , |
16547-52A00 |
— | ||
|
16548
|
16548
A6548-99000
Packing
1982-08-01 ~ 1983-09-01; E15S; L=5100 CUT USE |
A6548-99000 |
— | ||
|
16551
|
16551
16551-W7000
Nut-Wing
1982-08-01 ~ 1983-09-01; E15S; , |
16551-W7000 |
— | ||
| replacement | |||||
|
16551
|
16551
16551W700A Nut-Wing1982-08-01 ~ 1983-09-01; E15S; , |
16551W700A |
from US $4.85 |
||
|
16557
|
16557
16557-01M00 Mounting Rubber1982-08-01 ~ 1983-09-01; E15S; , |
16557-01M00 |
US $4.18 |
||
|
16565M
|
16565M
16597-G2100 Filter Assy1982-08-01 ~ 1983-09-01; E15S; , |
16597-G2100 |
US $20.74 |
||
|
16565N
|
16565N
16565U6700 Filter1982-08-01 ~ 1983-09-01; E15S; , |
16565U6700 |
US $4.42 |
||
| replacement | |||||
|
16565N
|
16565N
16565-Y4461
Filter
1982-08-01 ~ 1983-09-01; E15S; , |
16565-Y4461 |
— | ||
|
16568
|
16568
16568-H7400
Packing
1982-08-01 ~ 1983-09-01; E15S; , |
16568-H7400 |
— | ||
| replacement | |||||
|
16568
|
16568
16568-W7000 Packing1982-08-01 ~ 1983-09-01; E15S; , |
16568-W7000 |
US $3.06 |
||
|
16580
|
16580
16580-01B01 Intake Air Temperature Sensor1982-08-01 ~ 1983-09-01; E15S; , |
16580-01B01 |
US $50.04 |
||
|
16580
|
16580
16580-H3900
Intake Air Temperature Sensor
1982-08-01 ~ 1983-09-01; E15S; , |
16580-H3900 |
— | ||
|
16580
|
16580
16529-B9800 Grommet1982-08-01 ~ 1983-09-01; E15S; , |
16529-B9800 |
US $1.67 |
||
|
16580
|
16580
16582-H3901 Stopper1982-08-01 ~ 1983-09-01; E15S; , |
16582-H3901 |
US $8.87 |
||
|
16580H
|
16580H
16529-B9800 Grommet1982-08-01 ~ 1983-09-01; E15S; , |
16529-B9800 |
US $1.67 |
||
|
16580J
|
16580J
16582-H3901 Stopper1982-08-01 ~ 1983-09-01; E15S; , |
16582-H3901 |
US $8.87 |
||
|
16587
|
16587
16587-U6700 Connector-3 Way1982-08-01 ~ 1983-09-01; E15S; , |
16587-U6700 |
US $10.51 |
||
|
16598M
|
16598M
16516-W0400 Bolt1982-08-01 ~ 1983-09-01; E15S; , |
16516-W0400 |
US $0.86 |
||
|
17506A
|
17506A
A4911-B8200
Hose-Evap Control
1982-08-01 ~ 1983-09-01; E15S; L=5000 CUT USE |
A4911-B8200 |
— | ||
| replacement | |||||
|
17506A
|
17506A
B2320AU370 Hose-Vacuum Control, B1982-08-01 ~ 1983-09-01; E15S; L=5000 CUT USE |
B2320AU370 |
from US $74.33 |
||
