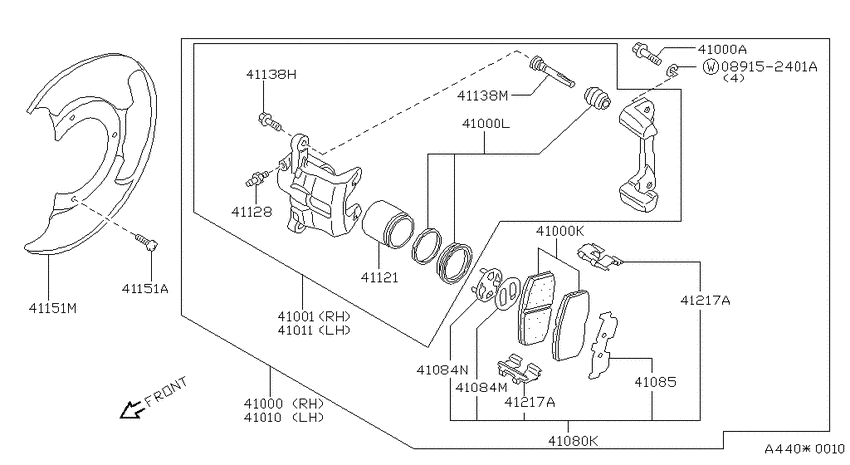

Front brake (1982-02-01 ~ 1988-05-01; ALL) Diagram Nissan SENTRA/200SX
- Year
- 1982
- Sales region
- U.S.A.
- Engine
- E15
- transmission
- MT
- body
- W
- trim lvl
- DX
- emission
- FED
- gears/shift type
- F4
- save gas
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
US $2.21 |
||
|
41000
|
41000
41000-14A00
Brake Assy-Front, Rh
1982-02-01 ~ 1982-05-01; E15S; , |
41000-14A00 |
— | ||
|
41000
|
41000
41000-14A01
Brake Assy-Front, Rh
1982-05-01 ~ 1983-09-01; E15S +E16S; , |
41000-14A01 |
— | ||
|
41000
|
41000
41250-01A00 Bolt1982-02-01 ~ 1988-05-01; E15S +E16S +CD17; , |
41250-01A00 |
from US $2.11 |
||
|
41000
|
41000
41060-11A93
Pad Kit-Disc Brake, Front
1982-05-01 ~ 1988-05-01; *FED.(E15S+E16S+CD17); SEMIMETALLIC |
41060-11A93 |
— | ||
| replacement | |||||
|
41000
|
41000
D106M-S1825
Pad kit-disc brake
1982-05-01 ~ 1988-05-01; *FED.(E15S+E16S+CD17); SEMIMETALLIC |
D106M-S1825 |
— | ||
|
41000
|
41000
41060-14A25
Pad Kit-Disc Brake, Front
1982-02-01 ~ 1983-09-01; E15S +E16S; , |
41060-14A25 |
— | ||
| replacement | |||||
|
41000
|
41000
41060-89A91
Pad kit-disc brake
1982-02-01 ~ 1983-09-01; E15S +E16S; , |
41060-89A91 |
— | ||
|
41000
|
41000
41120-01A25
Seal Kit-Disc Brake
1985-04-01 ~ 1988-05-01; *FED.(E15S+E16S+CD17); , |
41120-01A25 |
— | ||
|
41000A
|
41000A
41250-01A00 Bolt1982-02-01 ~ 1988-05-01; E15S +E16S +CD17; , |
41250-01A00 |
from US $2.11 |
||
|
41000K
|
41000K
41060-11A93
Pad Kit-Disc Brake, Front
1982-05-01 ~ 1988-05-01; *FED.(E15S+E16S+CD17); SEMIMETALLIC |
41060-11A93 |
— | ||
| replacement | |||||
|
41000K
|
41000K
D106M-S1825
Pad kit-disc brake
1982-05-01 ~ 1988-05-01; *FED.(E15S+E16S+CD17); SEMIMETALLIC |
D106M-S1825 |
— | ||
|
41000K
|
41000K
41060-14A25
Pad Kit-Disc Brake, Front
1982-02-01 ~ 1983-09-01; E15S +E16S; , |
41060-14A25 |
— | ||
| replacement | |||||
|
41000K
|
41000K
41060-89A91
Pad kit-disc brake
1982-02-01 ~ 1983-09-01; E15S +E16S; , |
41060-89A91 |
— | ||
|
41000L
|
41000L
41120-01A25
Seal Kit-Disc Brake
1985-04-01 ~ 1988-05-01; *FED.(E15S+E16S+CD17); , |
41120-01A25 |
— | ||
|
41001
|
41001
41001-05A90 Caliper Assy-Front Rh, W/o Pads Or Shims1982-02-01 ~ 1988-05-01; E13S +E15S +E16S; , |
41001-05A90 |
US $298.78 |
||
| replacement | |||||
|
41001
|
41001
41001-62A01
Caliper Assy-Front Rh, W/o Pad & Shim
1982-02-01 ~ 1988-05-01; E13S +E15S +E16S; , |
41001-62A01 |
— | ||
|
41001
|
41001
41001-61A01 Caliper Assy-Front Rh, W/o Pads Or Shims1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41001-61A01 |
US $298.78 |
||
| replacement | |||||
|
41001
|
41001
41001-62A01
Caliper Assy-Front Rh, W/o Pad & Shim
1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41001-62A01 |
— | ||
|
41010
|
41010
41010-14A00
Brake Assy-Front, Lh
1982-02-01 ~ 1982-05-01; E15S; , |
41010-14A00 |
— | ||
|
41010
|
41010
41010-14A01
Brake Assy-Front, Lh
1982-05-01 ~ 1983-09-01; E15S +E16S; , |
41010-14A01 |
— | ||
|
41011
|
41011
41011-05A90 Caliper Assy-Front Lh, W/o Pads Or Shims1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41011-05A90 |
US $298.78 |
||
| replacement | |||||
|
41011
|
41011
41011-62A01
Caliper Assy-Front Lh, W/o Pad & Shim
1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41011-62A01 |
— | ||
|
41011
|
41011
41011-61A01 Caliper Assy-Front Lh, W/o Pads Or Shims1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41011-61A01 |
US $298.78 |
||
| replacement | |||||
|
41011
|
41011
41011-62A01
Caliper Assy-Front Lh, W/o Pad & Shim
1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41011-62A01 |
— | ||
|
41080K
|
41080K
41080-05A26 Hardware Kit-Front Disc Brake Pad1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41080-05A26 |
US $56.59 |
||
|
41084M
|
41084M
41084-01A01 Shim-Disc Brake Pad, Inner1982-02-01 ~ 1983-09-01; E15S +E16S; , |
41084-01A01 |
US $6.91 |
||
|
41084M
|
41084M
41084-01A02 Shim-Disc Brake Pad, Outer1983-09-01 ~ 1988-05-01; E15S +E16S; , |
41084-01A02 |
US $6.05 |
||
|
41085
|
41085
41085-01A01 Shim-Disc Brake Pad, Outer1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41085-01A01 |
US $8.06 |
||
|
41121
|
41121
4112101A01 Piston-Cylinder1982-02-01 ~ 1988-05-01; E15S +E16S; , |
4112101A01 |
US $35.14 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
1982-02-01 ~ 1983-09-01; E15S +E16S +CD17; , |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder1982-02-01 ~ 1983-09-01; E15S +E16S +CD17; , |
4112880Z0A |
US $7.35 |
||
|
41138H
|
41138H
41141-01A00 Pin-Bolt1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41141-01A00 |
US $4.18 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
1982-02-01 ~ 1988-05-01; E15S +E16S; , |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt1982-02-01 ~ 1988-05-01; E15S +E16S; , |
44141AW70A |
from US $3.35 |
||
|
41138M
|
41138M
4113901A01 Pin1982-02-01 ~ 1988-05-01; E15S +E16S; , |
4113901A01 |
from US $7.63 |
||
|
41151A
|
41151A
43244-A0800
Screw
1982-02-01 ~ 1988-05-01; E15S +E16S +CD17; , |
43244-A0800 |
— | ||
| replacement | |||||
|
41151A
|
41151A
43244A080A Screw1982-02-01 ~ 1988-05-01; E15S +E16S +CD17; , |
43244A080A |
US $2.21 |
||
|
41151M
|
41151M
41151-03A01
Baffle Plate
1982-02-01 ~ 1983-09-01; E15S +E16S; , |
41151-03A01 |
— | ||
|
41217A
|
41217A
41083-01A01
Spring-Pad
1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41083-01A01 |
— | ||
|
41217A
|
41217A
41083-05A05 Spring-Pad1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41083-05A05 |
US $13.39 |
||
|
41217A
|
41217A
41083-V4075 Spring-Pad1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41083-V4075 |
US $14.11 |
||
|
41217A
|
41217A
41083-01A01
Spring-Pad
1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41083-01A01 |
— | ||
|
41217A
|
41217A
41083-05A05 Spring-Pad1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41083-05A05 |
US $13.39 |
||
|
41217A
|
41217A
41083-V4075 Spring-Pad1982-02-01 ~ 1988-05-01; E15S +E16S; , |
41083-V4075 |
US $14.11 |
||
