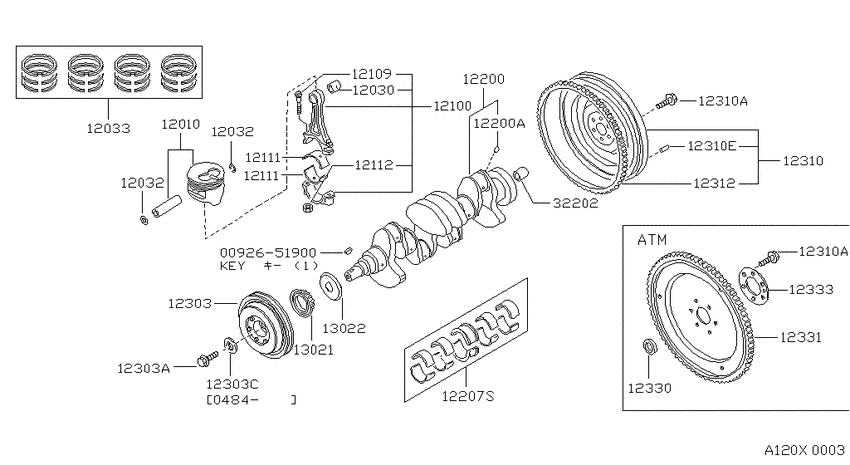

Piston,crankshaft & flywheel (1982-02-01 ~ ; CD17) Diagram Nissan SENTRA/200SX
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Engine
- CD17
- transmission
- AT
- body
- W
- trim lvl
- DX
- emission
- CAL
- gears/shift type
- F3
- save gas
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092651900
|
0092651900
0092651900 KEY |
0092651900 |
US $0.72 |
||
|
12010
|
12010
12010-17A02
Piston-W/pin
1982-08-01 ~ 1988-05-01; CD17; STD |
12010-17A02 |
— | ||
|
12010
|
12010
12010-17A04
Piston-W/pin
1982-08-01 ~ 1988-05-01; CD17; OS=0.50 |
12010-17A04 |
— | ||
|
12010
|
12010
12010-17A06
Piston-W/pin
1982-08-01 ~ 1988-05-01; CD17; OS=1.00 |
12010-17A06 |
— | ||
|
12030
|
12030
12030-16A00 Bush-Piston Pin1982-08-01 ~ 1983-07-01; CD17; , |
12030-16A00 |
US $7.20 |
||
|
12030
|
12030
12030-16A01 Bush-Piston Pin1983-07-01 ~ 1988-05-01; CD17; , |
12030-16A01 |
US $8.64 |
||
| replacement | |||||
|
12030
|
12030
12030-16A02 Bush-Piston Pin1983-07-01 ~ 1988-05-01; CD17; , |
12030-16A02 |
US $10.08 |
||
|
12032
|
12032
12032-16A00 Ring-Snap1982-08-01 ~ 1988-05-01; CD17; , |
12032-16A00 |
US $2.02 |
||
|
12032
|
12032
12032-16A00 Ring-Snap1982-08-01 ~ 1988-05-01; CD17; , |
12032-16A00 |
US $2.02 |
||
|
12033
|
12033
12033-16A00 Ring Set-Piston1982-08-01 ~ 1988-05-01; CD17; STD |
12033-16A00 |
US $241.92 |
||
|
12033
|
12033
1203316A10 Ring Set-Piston1982-08-01 ~ 1988-05-01; CD17; STD |
1203316A10 |
US $344.09 |
||
|
12033
|
12033
12036-16A00 Ring Set-Piston1982-08-01 ~ 1988-05-01; CD17; OS=0.50 |
12036-16A00 |
US $241.92 |
||
|
12033
|
12033
12036-16A10 Ring Set-Piston1982-08-01 ~ 1988-05-01; CD17; OS=0.50 |
12036-16A10 |
from US $94.35 |
||
|
12033
|
12033
12038-16A00 Ring Set-Piston1982-08-01 ~ 1988-05-01; CD17; OS=1.00 |
12038-16A00 |
US $241.92 |
||
|
12033
|
12033
12038-16A10 Ring Set-Piston1982-08-01 ~ 1988-05-01; CD17; OS=1.00 |
12038-16A10 |
US $344.09 |
||
|
12100
|
12100
12100-16A01 Rod Compl-Connecting1982-08-01 ~ 1983-07-01; CD17; , |
12100-16A01 |
US $337.01 |
||
|
12100
|
12100
12100-16A02 Rod Compl-Connecting1983-07-01 ~ 1988-05-01; CD17; , |
12100-16A02 |
US $311.52 |
||
|
12109
|
12109
12109-D0200 Bolt-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; , |
12109-D0200 |
US $2.45 |
||
| replacement | |||||
|
12109
|
12109
12109-GQ70A
Bolt-connecting rod
1982-08-01 ~ 1988-05-01; CD17; , |
12109-GQ70A |
— | ||
|
12109
|
12109
12109-D0210 Bolt-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; , |
12109-D0210 |
US $2.45 |
||
| replacement | |||||
|
12109
|
12109
12109-GQ70A
Bolt-connecting rod
1982-08-01 ~ 1988-05-01; CD17; , |
12109-GQ70A |
— | ||
|
12111
|
12111
12111-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; STD |
12111-16A00 |
US $12.96 |
||
|
12111
|
12111
12112-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; US=0.08 |
12112-16A00 |
US $12.96 |
||
|
12111
|
12111
12113-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; US=0.12 |
12113-16A00 |
US $12.96 |
||
|
12111
|
12111
12114-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; US=0.25 |
12114-16A00 |
US $12.96 |
||
|
12111
|
12111
12111-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; STD |
12111-16A00 |
US $12.96 |
||
|
12111
|
12111
12112-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; US=0.08 |
12112-16A00 |
US $12.96 |
||
|
12111
|
12111
12113-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; US=0.12 |
12113-16A00 |
US $12.96 |
||
|
12111
|
12111
12114-16A00 Bearing-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; US=0.25 |
12114-16A00 |
US $12.96 |
||
|
12112
|
12112
12112-H1000 Nut-Connecting Rod1982-08-01 ~ 1988-05-01; CD17; , |
12112-H1000 |
US $2.30 |
||
|
12200
|
12200
12200-16A00
Crankshaft Assy
1982-08-01 ~ 1982-10-01; CD17; , |
12200-16A00 |
— | ||
|
12200
|
12200
12201-16A80 Crankshaft Assy1982-10-01 ~ 1986-09-01; CD17; , |
12201-16A80 |
US $1,049.26 |
||
| replacement | |||||
|
12200
|
12200
12200-16A05 Crankshaft Assy1982-10-01 ~ 1986-09-01; CD17; , |
12200-16A05 |
US $1,498 |
||
|
12200
|
12200
12201-16A81 Crankshaft Assy1986-09-01 ~ 1988-05-01; CD17; , |
12201-16A81 |
US $1,236.17 |
||
| replacement | |||||
|
12200
|
12200
12200-16A05 Crankshaft Assy1986-09-01 ~ 1988-05-01; CD17; , |
12200-16A05 |
US $1,498 |
||
|
12200
|
12200
1220521000 Plug-Taper1982-08-01 ~ 1988-05-01; CD17; , |
1220521000 |
US $1.73 |
||
|
12200A
|
12200A
1220521000 Plug-Taper1982-08-01 ~ 1988-05-01; CD17; , |
1220521000 |
US $1.73 |
||
|
12207S
|
12207S
12207-01E00 BEARING SET-CRANKSHAFT1982-08-01 ~ 1988-05-01; CD17; STD |
12207-01E00 |
US $146.88 |
||
|
12207S
|
12207S
12207-D0200 Bearing Set-Crankshaft1982-08-01 ~ 1988-05-01; CD17; STD |
12207-D0200 |
US $136.80 |
||
|
12207S
|
12207S
12208-D0200 Bearing Set-Crankshaft1982-08-01 ~ 1988-05-01; CD17; US=0.25 |
12208-D0200 |
US $146.88 |
||
|
12207S
|
12207S
12209-D0200 Bearing Set-Crankshaft1982-08-01 ~ 1988-05-01; CD17; US=0.50 |
12209-D0200 |
from US $62.12 |
||
|
12303
|
12303
12303-16A03 Pulley-Crankshaft1982-09-01 ~ 1988-05-01; CD17; , |
12303-16A03 |
US $228.96 |
||
|
12303
|
12303
12304-16A01
Pulley-Crankshaft
1982-08-01 ~ 1982-09-01; CD17; , |
12304-16A01 |
— | ||
|
12303
|
12303
12304-16A02 Pulley-Crankshaft1982-09-01 ~ 1988-05-01; CD17; , |
12304-16A02 |
US $146.88 |
||
|
12303
|
12303
12309-16A00
Bolt-Pulley, Crankshaft
1984-04-01 ~ 1988-05-01; CD17; , |
12309-16A00 |
— | ||
|
12303
|
12303
12309-D0200 Bolt-Pulley, Crankshaft1982-08-01 ~ 1984-04-01; CD17; , |
12309-D0200 |
US $4.18 |
||
|
12303
|
12303
12308-D0200 Washer-Lock1984-04-01 ~ 1988-05-01; CD17; , |
12308-D0200 |
US $4.27 |
||
|
12303A
|
12303A
12309-16A00
Bolt-Pulley, Crankshaft
1984-04-01 ~ 1988-05-01; CD17; , |
12309-16A00 |
— | ||
|
12303A
|
12303A
12309-D0200 Bolt-Pulley, Crankshaft1982-08-01 ~ 1984-04-01; CD17; , |
12309-D0200 |
US $4.18 |
||
|
12303C
|
12303C
12308-D0200 Washer-Lock1984-04-01 ~ 1988-05-01; CD17; , |
12308-D0200 |
US $4.27 |
||
|
12310
|
12310
12315-D0200 Bolt-Flywheel1982-08-01 ~ 1985-03-01; CD17.AT; , |
12315-D0200 |
US $2.45 |
||
|
12310
|
12310
12315D0201 Bolt-Flywheel1985-03-01 ~ 1988-05-01; CD17.AT; , |
12315D0201 |
from US $2.91 |
||
|
12310A
|
12310A
12315-D0200 Bolt-Flywheel1982-08-01 ~ 1985-03-01; CD17.AT; , |
12315-D0200 |
US $2.45 |
||
|
12310A
|
12310A
12315D0201 Bolt-Flywheel1985-03-01 ~ 1988-05-01; CD17.AT; , |
12315D0201 |
from US $2.91 |
||
|
12310A
|
12310A
12315-D0200 Bolt-Flywheel1982-08-01 ~ 1985-03-01; CD17.AT; , |
12315-D0200 |
US $2.45 |
||
|
12310A
|
12310A
12315D0201 Bolt-Flywheel1985-03-01 ~ 1988-05-01; CD17.AT; , |
12315D0201 |
from US $2.91 |
||
|
12330
|
12330
1233016A00
Pilot-Converter
1983-02-01 ~ 1988-05-01; CD17.AT; , |
1233016A00 |
— | ||
| replacement | |||||
|
12330
|
12330
12330-16A0A Pilot-Converter1983-02-01 ~ 1988-05-01; CD17.AT; , |
12330-16A0A |
from US $5.25 |
||
|
12330
|
12330
12330-D0200 Pilot-Converter1982-08-01 ~ 1983-02-01; CD17.AT; , |
12330-D0200 |
US $9.07 |
||
|
12331
|
12331
12331-16A01 Plate Assy-Drive & Gear1982-08-01 ~ 1988-05-01; CD17.AT; , |
12331-16A01 |
US $416.30 |
||
|
12333
|
12333
12333-D0200 Plate-Crankshaft To Converter1982-08-01 ~ 1988-05-01; CD17.AT; , |
12333-D0200 |
US $13.25 |
||
|
13021
|
13021
13021-16A00 Sprocket-Crankshaft1982-08-01 ~ 1988-05-01; CD17; , |
13021-16A00 |
from US $29.43 |
||
|
13022
|
13022
13022-16A00 Flange-Sprocket, Crankshaft1982-08-01 ~ 1988-05-01; CD17; , |
13022-16A00 |
US $5.47 |
||
